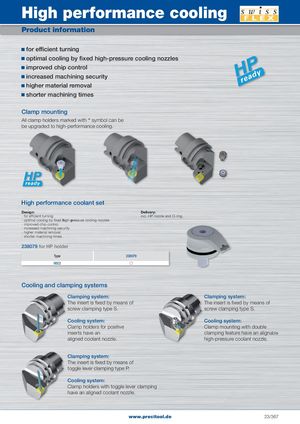

High performance cooling
for efficient turning
optimal cooling by fixed high-pressure cooling nozzles
improved chip control
increased machining security
higher material removal
shorter machining times
Clamp mounting
All clamp holders marked with * symbol can be
be upgraded to high-performance cooling.
High performance coolant set
Design: Delivery: - for efficient turning incl. HP nozzle and O-ring. - optimal cooling by fixed high-pressure cooling nozzles - improved chip control - increased machining security - higher material removal - shorter machining times 238079 for HP holder Type 238079 0022
Cooling and clamping systems
| Clamping system: | Clamping system: |
| The insert is fixed by means of | The insert is fixed by means of |
| screw clamping type S. | screw clamping type S. |
| Cooling system: | Cooling system: |
| Clamp holders for positive | Clamp mounting with double |
| inserts have an | clamping feature have an alignable |
| aligned coolant nozzle. | high-pressure coolant nozzle. |
Clamping system: The insert is fixed by means of toggle lever clamping type P. Cooling system: Clamp holders with toggle lever clamping have an aligned coolant nozzle.
