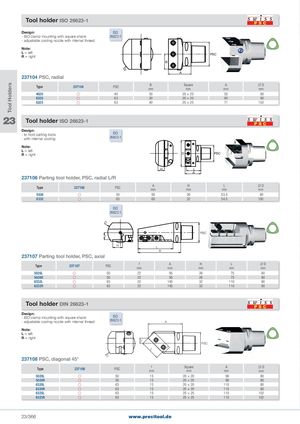

| Design: - ISO clamp mounting with square shank - adjustable cooling nozzle with internal thread Note: L= left | ISO 26623-1 | PSC | ||
| 237104 PSC, radial R= right | D | A B | ||
| Type 237104 | PSC | B mm | Square mm A mm D mm | |
| 4020 | 40 | 30 | 20 × 20 55 80 | |
| 6320 | 63 | 30 | 20 × 20 60 80 | |
| 6325 | 63 | 40 | 25 × 25 71 102 |
23 Tool holder
ISO 26623-1
| Design: | |||||
| - to hold parting tools - with internal cooling Note: L= left R= right 237106 Parting to | ol holder, PSC, | ISO 26623-1 radial L/R | D A L H | PSC | |
| Type | 237106 | PSC | A mm H mm | L mm | D mm |
| 5026 | | 50 | 58 26 | 53�0 | 80 |
| 6332 | | 63 | 60 32 | 54�5 | 100 |
| 237107 Parting to | ol holder, PSC, | ISO 26623-1 H f D axial | PSC L A | ||
| Type | 237107 | PSC | f mm A mm H mm | L mm | D mm |
| 5026L | | 50 | 22 95 26 | 75 | 80 |
| 5026R | | 50 | 22 95 26 | 75 | 80 |
| 6332L | | 63 | 22 145 32 | 110 | 80 |
| 6332R | | 63 | 22 145 32 | 110 | 80 |
Tool holder DIN 26623-1
Design: - ISO clamp mounting with square shank - adjustable cooling nozzle with internal thread
Note: L = left R = right
237108 PSC, diagonal 45°
ISO 26623-1
D
f
L
A
PSC
| Type | 237108 | PSC | f mm | Square mm | A mm | D mm |
| 5020L | | 50 | 15 | 20 × 20 | 98 | 80 |
| 5020R | | 50 | 15 | 20 × 20 | 98 | 80 |
| 6320L | | 63 | 15 | 20 × 20 | 110 | 80 |
| 6320R | | 63 | 15 | 20 × 20 | 110 | 80 |
| 6325L | | 63 | 15 | 25 × 25 | 110 | 102 |
| 6325R | | 63 | 15 | 25 × 25 | 110 | 102 |
