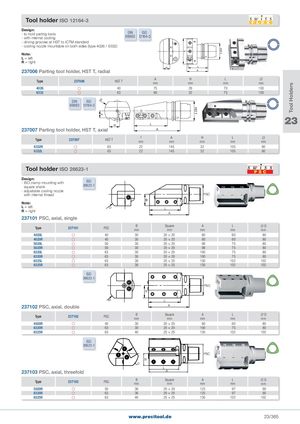

| - to hold parting tools | DIN | ISO |
| - with internal cooling | 69893 | 12164-3 |
- driving grooves at HST to ICTM standard - cooling nozzle mountable on both sides (type 4026 / 6332) Note: L = left
R = right H L 237006 Parting tool holder, HST T, radial A
A H L
Type 237006 HST T
| mm | mm | mm | mm | |||
| 4026 | | 40 | 75 | 26 | 70 | 100 |
| 6332 | | 63 | 80 | 32 | 75 | 100 |
D DIN ISO 69893 12164-3 23
H L 237007 Parting tool holder, HST T, axial A
f A H L
Type 237007 HST T
| mm | mm | mm | mm | mm | |||
| 6332R | | 63 | 22 | 145 | 32 | 105 | 80 |
| 6332L | | 63 | 22 | 145 | 32 | 105 | 80 |
Tool holder ISO 26623-1 Design: - ISO clamp mounting with ISO square shank 26623-1
- adjustable cooling nozzle with internal thread PSC B
Note: L = left D L R = right A
237101 PSC, axial, single
B Square A L D
Type 237101 PSC
| mm | mm | mm | mm | mm | |||
| 4020L | | 40 | 30 | 20 × 20 | 80 | 60 | 80 |
| 4020R | | 40 | 30 | 20 × 20 | 80 | 60 | 80 |
| 5020L | | 50 | 30 | 20 × 20 | 98 | 75 | 80 |
| 5020R | | 50 | 30 | 20 × 20 | 98 | 75 | 80 |
| 6320L | | 63 | 30 | 20 × 20 | 100 | 75 | 80 |
| 6320R | | 63 | 30 | 20 × 20 | 100 | 75 | 80 |
| 6325L | | 63 | 38 | 25 × 25 | 130 | 102 | 102 |
| 6325R | | 63 | 38 | 25 × 25 | 130 | 102 | 102 |
ISO 26623-1 PSC B
D L 237102 PSC, axial, double A
B Square A L D
Type 237102 PSC
| mm | mm | mm | mm | mm | |||
| 4020R | | 40 | 30 | 20 × 20 | 80 | 60 | 80 |
| 6320R | | 63 | 30 | 20 × 20 | 100 | 75 | 80 |
| 6325R | | 63 | 40 | 25 × 25 | 130 | 102 | 102 |
ISO 26623-1 PSC B
D L 237103 PSC, axial, threefold A
B Square A L D
Type 237103 PSC
| 5020R | | 50 | 36 | 20 × 20 | 123 | 97 | 90 |
| 6320R | | 63 | 36 | 20 × 20 | 125 | 97 | 90 |
| 6325R | | 63 | 40 | 25 × 25 | 130 | 102 | 102 |
