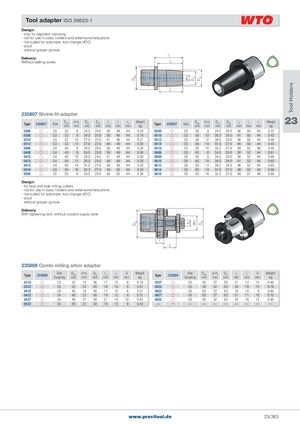

Tool adapter ISO 26623-1

- only for segment clamping - not for use in basic holders and extensions/reductions - not suited for automatic tool change (ATC) - short - without gripper groove l

Delivery: 1 Without setting screw l 3

l C

235807 Shrink-fit adapter 23

Type	235807	Size	D5m mm	d mt mm	D21 mm	D22 mm	lC mm	l1 mm	l3 mm	Weight kg	Type	235807	Size	D5m mm	d mt mm	D21 mm	D22 mm	lC mm	l1 mm	l3 mm	Weight kg
0306		C3	32	6	24�5	20�0	36	48	44	0�20	0508		C5	50	8	24�5	20�0	36	50	44	0�37
0308		C3	32	8	24�5	20�0	36	48	44	0�19	0510		C5	50	10	28�5	24�0	41	50	44	0�42
0310		C3	32	10	27�0	22�5	41	48	44	0�21	0512		C5	50	12	28�5	24�0	46	50	44	0�40
0312		C3	32	12	27�0	22�5	46	48	44	0�20	0514		C5	50	14	31�5	27�0	46	50	44	0�43
0406		C4	40	6	24�5	20�0	36	49	44	0�26	0516		C5	50	16	32�3	27�0	49	55	49	0�45
0408		C4	40	8	24�5	20�0	36	49	44	0�26	0606		C6	63	6	24�5	20�0	36	52	44	0�61
0410		C4	40	10	28�5	24�0	41	49	44	0�30	0608		C6	63	8	24�5	20�0	36	52	44	0�60
0412		C4	40	12	28�5	24�0	46	49	44	0�28	0610		C6	63	10	28�5	24�0	41	52	44	0�65
0414		C4	40	14	31�5	27�0	46	49	44	0�33	0612		C6	63	12	28�5	24�0	46	52	44	0�63
0416		C4	40	16	32�3	27�0	49	54	49	0�33	0614		C6	63	14	31�5	27�0	46	52	44	0�66
0506		C5	50	6	24�5	20�0	36	50	44	0�38	0616		C6	63	16	32�3	27�0	49	57	49	0�68

Design: - for face and side milling cutters - not for use in basic holders and extensions/reductions - not suited for automatic tool change (ATC) - short - without gripper groove

Delivery: With tightening bolt, without coolant supply bore

l 1

l C

235809 Combi milling arbor adapter

Type	235809	Size Coupling	D5m mm	d mt mm	D5t mm	lC mm	l1 mm	S mm	Weight kg	Type	235809	Size Coupling	D5m mm	d mt mm	D5t mm	lC mm	l1 mm	S mm	Weight kg
0316		C3	32	16	36	17	15	6	0�18	0527		C5	50	27	50	21	12	10	0�49
0322		C3	32	22	45	19	19	8	0�31	0532		C5	50	32	63	24	18	12	0�79
0416		C4	40	16	40	17	10	6	0�21	0622		C6	63	22	63	19	10	8	0�60
0422		C4	40	22	45	19	12	8	0�31	0627		C6	63	27	63	21	11	10	0�70
0427		C4	40	27	50	21	14	10	0�42	0632		C6	63	32	63	24	16	12	0�90
0522		C5	50	22	50	19	12	8	0�42	—	—	—	—	—	—	—	—	—	—
