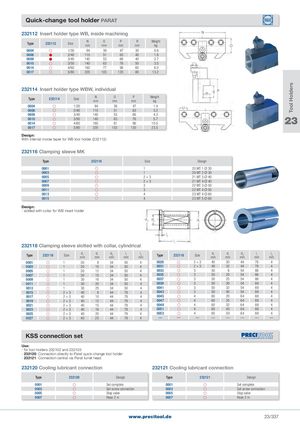

Quick-change tool holder PARAT
| 2112 | Insert hold | er type | WB, inside m | achining | N | |||
| Type | 232112 | Size | N mm O mm | P mm | R mm | Weight kg | O | |
| 0004 | | 1/30 | 84 39 | 47 | 30 | 0�8 | ||
| 0006 | | 2/40 | 110 51 | 63 | 40 | 1�8 | ||
| 0009 | | 3/40 | 140 53 | 66 | 40 | 2�7 | ||
| 0010 | | 3/50 | 140 63 | 76 | 50 | 3�5 | ||
| 0014 | | 4/60 | 160 77 | 96 | 60 | 6�0 | ||
| 0017 | | 5/80 | 220 103 | 120 | 80 | 13�2 | ||
| 2114 | Insert hold | er type | WBW, individ | ual | S P | ders | ||
| Type | 232114 | Size | N mm | O mm | P mm | Weight kg | R | l Hol |
| 0004 | | 1/30 | 84 | 39 | 47 | 1�4 | U | o |
| 0006 | | 2/40 | 110 | 51 | 63 | 3�2 | To | |
| 0009 | | 3/40 | 140 | 53 | 66 | 4�3 | ||
| 0010 | | 3/50 | 140 | 63 | 76 | 5�7 | 23 | |
| 0014 | | 4/60 | 160 | 81 | 96 | 10�0 | ||
| 0017 | | 5/80 | 220 | 103 | 120 | 23�5 |
Design: With internal morse taper for WB tool holder (232112)
232116 Clamping sleeve MK
| Type | 232116 | Size | Design |
| 0001 | | 1 | 20 MT 1Ø30 |
| 0003 | | 1 | 20 MT 2Ø30 |
| 0005 | | 2 + 3 | 21 MT 3Ø40 |
| 0007 | | 2 + 3 | 21 MT 4Ø40 |
| 0009 | | 3 | 22 MT 3Ø50 |
| 0011 | | 3 | 22 MT 4Ø50 |
| 0013 | | 4 | 23 MT 4Ø60 |
| 0015 | | 4 | 23 MT 5Ø60 |
Design: - slotted with collar for WB insert holder
| d | d | d |
| 3 | 2 | 1 |
l 2 l 232118 Clamping sleeve slotted with collar, cylindrical 1
| Type | 232118 | Size | d1 mm | d² mm | d3 mm | l1 mm | l3 mm | Type | 232118 | Size | d1 mm | d² mm | d3 mm | l1 mm | l3 mm |
| 0001 | | 1 | 30 | 8 | 34 | 50 | 4 | 0029 | | 2 + 3 | 40 | 30 | 44 | 78 | 4 |
| 0003 | | 1 | 30 | 10 | 34 | 50 | 4 | 0031 | | 2 + 3 | 40 | 32 | 44 | 78 | 4 |
| 0005 | | 1 | 30 | 12 | 34 | 50 | 4 | 0033 | | 3 | 50 | 8 | 54 | 88 | 4 |
| 0007 | | 1 | 30 | 15 | 34 | 50 | 4 | 0035 | | 3 | 50 | 20 | 54 | 88 | 4 |
| 0009 | | 1 | 30 | 16 | 34 | 50 | 4 | 0037 | | 3 | 50 | 25 | 54 | 88 | 4 |
| 0011 | | 1 | 30 | 20 | 34 | 50 | 4 | 0039 | | 3 | 50 | 30 | 54 | 88 | 4 |
| 0013 | | 1 | 30 | 25 | 34 | 50 | 4 | 0041 | | 3 | 50 | 32 | 54 | 88 | 4 |
| 0015 | | 2 + 3 | 40 | 8 | 44 | 78 | 4 | 0043 | | 3 | 50 | 40 | 54 | 88 | 4 |
| 0017 | | 2 + 3 | 40 | 10 | 44 | 78 | 4 | 0045 | | 4 | 60 | 20 | 64 | 88 | 4 |
| 0019 | | 2 + 3 | 40 | 12 | 44 | 78 | 4 | 0047 | | 4 | 60 | 25 | 64 | 88 | 4 |
| 0021 | | 2 + 3 | 40 | 15 | 44 | 78 | 4 | 0049 | | 4 | 60 | 32 | 64 | 88 | 4 |
| 0023 | | 2 + 3 | 40 | 16 | 44 | 78 | 4 | 0051 | | 4 | 60 | 40 | 64 | 88 | 4 |
| 0025 | | 2 + 3 | 40 | 20 | 44 | 78 | 4 | 0053 | | 4 | 60 | 50 | 64 | 88 | 4 |
| 0027 | | 2 + 3 | 40 | 25 | 44 | 78 | 4 | — | — | — | — | — | — | — | — |
KSS connection set
Use: - for tool holders 232102 and 232103 - 232120: Connection directly to Parat quick-change tool holder - 232121: Connection central via Parat turret head
232120 Cooling lubricant connection 232121 Cooling lubricant connection
| Type | 232120 | Design | Type | 232121 | Design |
| 0001 | | Set complete | 0001 | | Set complete |
| 0003 | | Set screw connection | 0003 | | Set screw connection |
| 0005 | | Stop valve | 0005 | | Stop valve |
| 0007 | | Hose 2 m | 0007 | | Hose 2 m |
