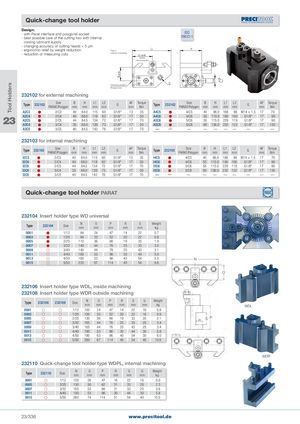

Quick-change tool holder
- with Parat interface and polygonal socket ISO - best possible care of the cutting tool with internal 26623-1 cooling lubricant supply - changing accuracy of cutting heads < 5 µm - ergonomic relief by weight reduction Figure - reduction of measuring cuts external machining Middle clamping prism
Clamping position Polygon size
232102 for external machining
| Type | 232102 | Size | B | H | L1 | L2 | AF | Torque | Type | 232102 | Size | B | H | L1 | L2 | AF | Torque | ||
| G | G | ||||||||||||||||||
| PARAT/Polygon | mm | mm | mm | mm | mm | Nm | PARAT/Polygon | mm | mm | mm | mm | mm | Nm | ||||||
| A2C3 | | 2/C3 | 40 | 64�0 | 115 | 60 | G1/8" | 13 | 35 | A4C5 | | 4/C5 | 40 | 96�0 168 | 88 M14 × 1�5 | 17 | 70 | ||
| 23 A2C4 | | 2/C4 | 40 | 68�0 | 118 | 62 | G1/8" | 17 | 50 | A4C6 | | 4/C6 | 55 | 110�0 180 100 | G1/8" | 17 | 90 | ||
| A2C5 | | 2/C5 | 44 | 84�5 | 134 | 72 | G1/8" | 17 | 70 | A5C6 | | 5/C6 | 55 | 115�0 229 119 | G1/8" | 17 | 90 | ||
| A3C4 | | 3/C4 | 35 | 68�0 | 139 | 73 | G1/8" | 17 | 50 | A5C8 | | 5/C8 | 60 | 136�0 232 122 | G1/8" | 17 | 130 | ||
| A3C5 | | 3/C5 | 40 | 84�5 | 142 | 76 | G1/8" | 17 | 70 | — | — | — | — | — | — | — | — | — | — |
232103 for internal machining
| Type | 232103 | Size PARAT/Polygon | B mm | H mm | L1 mm | L2 mm | G | AF mm | Torque Nm | Type | 232103 | Size PARAT/Polygon | B mm | H mm | L1 mm | L2 mm | G | AF mm | Torque Nm |
| I2C3 | | 2/C3 | 40 | 64�0 | 115 | 60 | G1/8" | 13 | 35 | I4C5 | | 4/C5 | 40 | 96�0 | 168 | 88 | M14 × 1�5 | 17 | 70 |
| I2C4 | | 2/C4 | 40 | 68�0 | 118 | 62 | G1/8" | 17 | 50 | I4C6 | | 4/C6 | 55 | 110�0 | 180 | 100 | G1/8" | 17 | 90 |
| I2C5 | | 2/C5 | 44 | 84�5 | 134 | 72 | G1/8" | 17 | 70 | I5C6 | | 5/C6 | 55 | 115�0 | 229 | 119 | G1/8" | 17 | 90 |
| I3C4 | | 3/C4 | 35 | 68�0 | 139 | 73 | G1/8" | 17 | 50 | I5C8 | | 5/C8 | 60 | 136�0 | 232 | 122 | G1/8" | 17 | 130 |
| I3C5 | | 3/C5 | 40 | 84�5 | 142 | 76 | G1/8" | 17 | 70 | — | — | — | — | — | — | — | — | — | — |
Quick-change tool holder PARAT
232104 Insert holder type WD universal
N
O
| Type | 232104 | Size | N mm | O mm | P mm | R mm | S mm | Weight kg |
| 0001 | | 1/12 | 84 | 24 | 47 | 14 | 22 | 0�7 |
| 0003 | | 1/20 | 84 | 33 | 52 | 20 | 22 | 0�8 |
| 0005 | | 2/25 | 110 | 36 | 66 | 19 | 33 | 1�9 |
| 0007 | | 3/32 | 140 | 44 | 76 | 25 | 33 | 3�0 |
| 0009 | | 3/40 | 140 | 44 | 76 | 25 | 43 | 3�1 |
| 0011 | | 4/40 | 160 | 53 | 96 | 30 | 44 | 5�0 |
| 0013 | | 4/50 | 160 | 53 | 96 | 40 | 54 | N 5�5 |
| 0015 | | 5/50 | 220 | 67 | 114 | 40 | 54 | 9�6 |
S R
| 32106 32108 | Insert Insert | holder holder | type type | WDL, WDR | insid outsi | e mac de ma | hinin chin | g ing | O | ||||
| Type | 232106 | 232108 | Size | N mm | O mm | P mm | R mm | S mm | U mm | Weight kg | WDL | ||
| 0001 | | | 1/12 | 100 | 24 | 47 | 14 | 22 | 16 | 0�8 | |||
| 0003 | | | 1/20 | 100 | 33 | 52 | 20 | 22 | 16 | 0�9 | |||
| 0005 | | | 2/25 | 130 | 36 | 66 | 19 | 33 | 20 | 2�1 | S P | ||
| 0007 | | | 3/32 | 165 | 44 | 76 | 25 | 33 | 25 | 3�4 | R | ||
| 0009 | | | 3/40 | 165 | 44 | 76 | 25 | 43 | 25 | 3�4 | |||
| 0011 | | | 4/40 | 190 | 53 | 96 | 30 | 44 | 30 | 5�8 | |||
| 0013 | | | 4/50 | 190 | 63 | 96 | 40 | 54 | 30 | 6�0 | U | ||
| 0015 | | | 5/50 | 260 | 67 | 114 | 40 | 54 | 40 | 10�6 |
WDR
232110 Quick-change tool holder type WDPL, internal machining
| Type | 232110 | Size | N mm | O mm | P mm | R mm | S mm | U mm | Weight kg |
| 0001 | | 1/12 | 100 | 28 | 47 | 16 | 22 | 16 | 0�9 |
| 0005 | | 2/25 | 130 | 50 | 62 | 31 | 33 | 20 | 2�3 |
| 0007 | | 3/32 | 165 | 53 | 66 | 31 | 33 | 25 | 3�6 |
| 0011 | | 4/40 | 190 | 53 | 96 | 30 | 44 | 30 | 5�8 |
| 0015 | | 5/50 | 260 | 74 | 114 | 51 | 54 | 40 | 10�5 |
