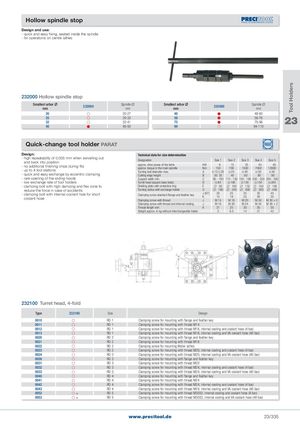

Hollow spindle stop
- quick and easy fixing, seated inside the spindle - for operations on centre lathes
232000 Hollow spindle stop
| Smallest arbor mm | 232000 | SpindleØ mm | Smallest arbor mm | 232000 | SpindleØ mm |
| 20 | | 20-27 | 48 | | 48-60 |
| 25 | | 25-33 | 58 | | 58-76 |
| 32 | | 32-41 | 75 | | 75-96 |
| 40 | | 40-50 | 94 | | 94-110 |
Quick-change tool holder PARAT
| Design: - high repeatability of 0.005 mm when swivelling out and back into position | Technical data for size determination Designation | | Size 1 | Size 2 | Size 3 | Size 4 | Size 5 |
| - no additional finishin chis durin fits | approx� drive power of the lathe | KW | 6 | 15 | 25 | 45 | 65 |
| gpg t 4 tl tti | approx� torque in the main spindle | Nm | 150 | 700 | 1500 | 7000 | 12000 |
| - up o oo saons | Turning tool diameter max� | A | 12 20 | 25 | 40 | 50 | 50 |
| - quick and easy exchange by eccentric clamping | Cutting edge height | B | 30 35 | 40 | 60 | 80 | 90 |
| - rare opening of the sliding hoods | Support width min� | C | 90 - 100 | 110 - 150 | 150 - 180 | 200 - 250 | 200 - 300 |
| - low exchange rate of tool holders | Turret head (square base body) | D | 84 | 106 | 134 | 154 | 204 |
| - clamping bolt with high damping and flex zone to | Dividing plate with protective ring | E | 80 | 100 | 132 | 150 | 195 |
| reduce the force in case of accidents | Turning radius with exchange holder | G | 180 | 240 | 300 | 350 | 446 |
| - clamping bolt with internal coolant hole for short coolant hose | Clamping screw standard flange and feather key | J (H7) K | 20 15 | 25 18 | 35 25 | 35 30 | 45 35 |
| Clamping screw with thread | J | M 14 | M 16 | M 20 | M 24 | M 30 × 2 |
| Clamping screw with thread and internal cooling | J | M 16 | M 20 | M 24 | M 24 | M 30 × 2 |
| Thread length mm | K | 21 | 25 | 30 | 35 | 35 |
| Weight approx� in kg without interchangeable holder | | 3 | 6�5 | 14 | 21 | 42 |
232100 Turret head, 4-fold
| Type | 232100 | Size | Design |
| 0010 | | RD 1 | Clamping screw for mounting with flange and feather key |
| 0011 | | RD 1 | Clamping screw for mounting with thread M14 |
| 0012 | | RD 1 | Clamping screw for mounting with thread M16, internal cooling and coolant hose (4 bar) |
| 0013 | | RD 1 | Clamping screw for mounting with thread M16, internal cooling and VA coolant hose (40 bar) |
| 0020 | | RD 2 | Clamping screw for mounting with flange and feather key |
| 0021 | | RD 2 | Clamping screw for mounting with thread M16 |
| 0022 | | RD 2 | Clamping screw for mounting Weiler lathes |
| 0023 | | RD 2 | Clamping screw for mounting with thread M20, internal cooling and coolant hose (4 bar) |
| 0024 | | RD 2 | Clamping screw for mounting with thread M20, internal cooling and VA coolant hose (40 bar) |
| 0030 | | RD 3 | Clamping screw for mounting with flange and feather key |
| 0031 | | RD 3 | Clamping screw for mounting with thread M20 |
| 0032 | | RD 3 | Clamping screw for mounting with thread M24, internal cooling and coolant hose (4 bar) |
| 0033 | | RD 3 | Clamping screw for mounting with thread M24, internal cooling and VA coolant hose (40 bar) |
| 0040 | | RD 4 | Clamping screw for mounting with flange and feather key |
| 0041 | | RD 4 | Clamping screw for mounting with thread M24 |
| 0042 | | RD 4 | Clamping screw for mounting with thread M24, internal cooling and coolant hose (4 bar) |
| 0043 | | RD 4 | Clamping screw for mounting with thread M24, internal cooling and VA coolant hose (40 bar) |
| 0052 | + | RD 5 | Clamping screw for mounting with thread M3032, internal cooling and coolant hose (4 bar) |
| 0053 | + | RD 5 | Clamping screw for mounting with thread M3032, internal cooling and VA coolant hose (40 bar) |
