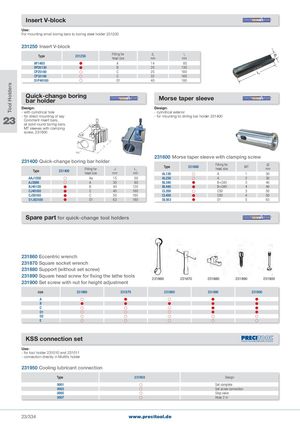

Insert V-block

For mounting small boring bars to boring steel holder 231200

231250 Insert V-block

	Type 231250	Fitting for	d	l
		head size	mm1	mm1
AP1485		A	14	85
BP20130		B	20	130
CP25160		C	25	160
CP32160		C	32	160
D1P40180		D1	40	180
Quick-change boring				Morse taper sleeve
bar holder
Design:			Design:
- with cylindrical hole			- cylindrical exterior

23 - for direct mounting of say - for mounting to drilling bar holder 231400

Coromant insert bars, all solid round boring bars, MT sleeves with clamping screw, 231600

L 1

231600 Morse taper sleeve with clamping screw

231400 Quick-change boring bar holder

Fitting for Ø

Type 231600 MT

Fitting for J L head size mm

Type 231400 1

		head size	mm	mm	AL130		A	1	30
AAJ1550		Aa	15	50	AL230		A	2	30
AJ3080		A	30	80	BL340		B+C40	3	40
BJ40120		B	40	120	BL440		B+C40	4	40
CJ40160		C	40	160	CL350		C50	3	50
CJ50160		C	50	160	CL450		C50	4	50
D1J63180		D1	63	180	DL563		D1	5	63

Spare part for quick-change tool holders

231860 Eccentric wrench

231870 Square socket wrench

231880 Support (without set screw)

231890 Square head screw for fixing the lathe tools

	231860	231870	231880	231890	231900
231900 Set screw with nut for height adjustment

size	231860	231870	231880	231890	231900
A					
B					
C					
D1					
D2					
E					

KSS connection set Use: - for tool holder 231010 and 231011 - connection directly in Multifix holder

231950 Cooling lubricant connection

Type	231950	Design
0001		Set complete
0003		Set screw connection
0005		Stop valve
0007		Hose 2 m
