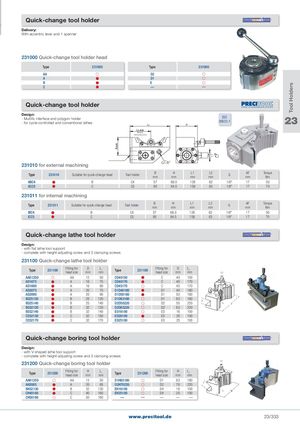

Quick-change tool holder
Delivery: With eccentric lever and 1 spanner
231000 Quick-change tool holder head
| Type | 231000 | Type | 231000 |
| AA | | D2 | |
| A | | D1 | |
| B | | E | |
| C | | — | — |
Quick-change tool holder Design: 23 - Multifix interface and polygon holder ISO - for cycle-controlled and conventional lathes 26623-1
Middle clamping prism
231010 for external machining G1/8"
B H L1 L2 AF Torque
Type 231010 Suitable for quick-change head Tool holder G
| mm | mm | mm | mm | mm | Nm | |||||
| ABC4 | | B | C4 | 57 | 68�0 | 126 | 62 | 1/8" | 17 | 50 |
| ACC5 | | C | C5 | 80 | 84�5 | 158 | 83 | 1/8" | 17 | 70 |
| 231011 for internal machining | ||||||||||
| B | H | L1 | L2 | AF | Torque | |||||
| Type | 231011 | Suitable for quick-change head | Tool holder | G | ||||||
| mm | mm | mm | mm | mm | Nm | |||||
| IBC4 | | B | C4 | 57 | 68�0 | 126 | 62 | 1/8" | 17 | 50 |
| ICC5 | | C | C5 | 80 | 84�5 | 158 | 83 | 1/8" | 17 | 70 |
Quick-change lathe tool holder Design: - with flat lathe tool support - complete with height-adjusting screw and 3 clamping screws
231100 Quick-change lathe tool holder
Fitting for D L Fitting for D L
Type 231100 1 Type 231100 1
| head size | mm | mm | head size | mm | mm | ||||
| AAD1250 | | AA | 12 | 50 | CD40150 | | C | 40 | 150 |
| AD1675 | | A | 16 | 75 | CD40170 | | C | 40 | 170 |
| AD1690 | | A | 16 | 90 | CD45170 | | C | 45 | 170 |
| AD2075 | | A | 20 | 75 | D1D40180 | | D1 | 40 | 180 |
| AD2090 | | A | 20 | 90 | D1D50180 | | D1 | 50 | 180 |
| BD25120 | | B | 25 | 120 | D1D63180 | | D1 | 63 | 180 |
| BD25140 | | B | 25 | 140 | D2D50220 | | D2 | 50 | L 220 |
| 1 | |||||||||
| BD32120 | | B | 32 | 120 | D2D63220 | | D2 | 63 | 220 |
| BD32140 | | B | 32 | 140 | ED16100 | | ED | 16 | 100 |
| CD32150 | | C | 32 | 150 | ED20100 | | ED | 20 | 100 |
| CD32170 | | C | 32 | 170 | ED25100 | | ED | 25 | 100 |
Quick-change boring tool holder Design: - with V-shaped lathe tool support - complete with height-adjusting screw and 3 clamping screws
231200 Quick-change boring tool holder
Fitting for H L Fitting for H L
Type 231200 1 Type 231200 1
| head size | mm | mm | head size | mm | mm | ||||
| AAH1250 | | AA | 12 | 50 | D1H63180 | | D1 | 63 | 180 |
| AH2085 | | A | 20 | 85 | D2H70220 | | D2 | 70 | 220 |
| BH32130 | | B | 32 | 130 | EH16100 | | EH | 16 | 100 |
| CH40160 | | C | 40 | 160 | EH25100 | | EH | 25 | 1 100 |
| CH50160 | | C | 50 | 160 | — — | — | — | — |
