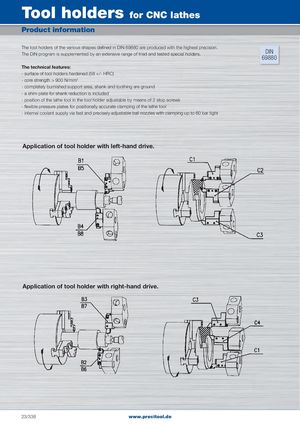

Tool holders for CNC lathes Product information The tool holders of the various shapes defined in DIN 69880 are produced with the highest precision. The DIN program is supplemented by an extensive range of tried and tested special holders. DIN69880 The technical features: - surface of tool holders hardened (58 +/- HRC) - core strength > 900 N/mm2 - completely burnished support area, shank and toothing are ground - a shim plate for shank reduction is included - position of the lathe tool in the tool holder adjustable by means of 2 stop screws - flexible pressure plates for positionally accurate clamping of the lathe tool - internal coolant supply via fast and precisely adjustable ball nozzles with clamping up to 60 bar tight Application of tool holder with left-hand drive. Application of tool holder with right-hand drive. 23/338 www.precitool.de
