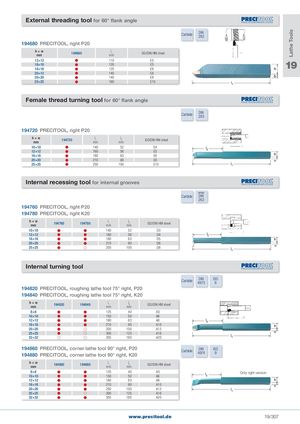

Общий каталог PRECITOOL - страница 312

External threading tool for 60° flank angle

0 PRECITOOL, right P20			Carbide	DIN 282
h × w mm 194680	l1 mm	ISO/DIN HM sheet
12×12 	110	E5
16×10 	120	E5
16×16 	125	E6
20×12 	140	E6
20×20 	140	E8
25×25 	160	E10

Female thread turning tool for 60° flank angle

					Carbide DIN 283
20 PREC h × w mm	ITOOL, right P 194720	20 l1 mm	l2 mm	ISO/DIN HM sheet
10×10		140	52	E4
12×12		160	56	E5
16×16		180	63	E6
20×20		210	80	E8		w
25×25		250	100	E10

Internal recessing tool for internal grooves

760 PRE 780 PRE	CITOOL, ri CITOOL, ri	ght P20 ght K20				Carbide	similar DIN 263
h × w mm	194760	194780	l1 mm	l2 mm	ISO/DIN HM sheet
10×10			140	52	D3
12×12			160	56	D4
16×16			180	63	D5
20×20			210	80	D6
25×25			250	100	D8				w
nternal	turning t	ool				Carbide	DIN 4973	ISO 8

194820 PRECITOOL, roughing lathe tool 75° right, P20

194840 PRECITOOL, roughing lathe tool 75° right, K20

h × w mm	194820	194840	l1 mm	l2 mm	ISO/DIN HM sheet
8×8			125	40	A5
10×10			150	50	A6
12×12			180	63	A8
16×16			210	80	A10
20×20			250	100	A12
25×25			300	125	A16		w
32×32			355	160	A20
860 PR	ECITOOL, c	orner lathe	tool 90° ri	ght, P20		Carbide DIN ISO
880 PR	ECITOOL, c	orner lathe	tool 90° ri	ght, K20		4974 9
h × w mm	194860	194880	l1 mm	l2 mm	ISO/DIN HM sheet
8×8			125	40	A5		Only right version
10×10			150	50	A6
12×12			180	63	A8
16×16			210	80	A10		w
20×20			250	100	A12
25×25			300	125	A16
32×32			355	160	A20
