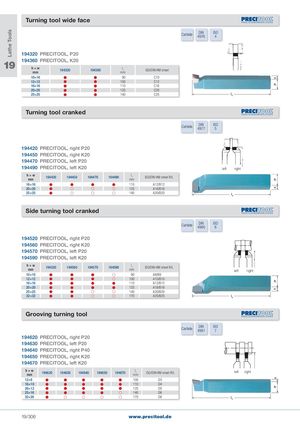

Общий каталог PRECITOOL - страница 311
Навигация
Turning tool wide face
194320 PRECITOOL, P20
19 194360 PRECITOOL, K20
h × w l
| 194320 | 194360 | 1 | ISO/DIN HM sheet | |
| mm | mm | |||
| 10×10 | | | 90 | C10 |
| 12×12 | | | 100 | C12 |
| 16×16 | | | 110 | C16 |
| 20×20 | | | 125 | C20 |
| 25×25 | | | 140 | C25 |
Turning tool cranked
Carbide
Carbide
| DIN | ISO |
| 4976 | 4 |
w
| DIN | ISO |
| 4977 | 5 |
194420 PRECITOOL, right P20
194450 PRECITOOL, right K20
194470 PRECITOOL, left P20
194490 PRECITOOL, left K20
h × w l
| 194420 | 194450 | 194470 | 194490 | 1 | ISO/DIN HM sheet R/L | ||
| mm | mm | ||||||
| 16×16 | | | | | 110 | A12/B12 | |
| 20×20 | | | | | 125 | A16/B16 | |
| 25×25 | | | | | 140 | A20/B20 |
Side turning tool cranked
194520 PRECITOOL, right P20
194560 PRECITOOL, right K20
194570 PRECITOOL, left P20
194590 PRECITOOL, left K20
h × w l
| 194520 | 194560 | 194570 | 194590 | 1 | ISO/DIN HM sheet R/L | |
| mm | mm | |||||
| 10×10 | | | | | 90 | A8/B8 |
| 12×12 | | | | | 100 | A10/B10 |
| 16×16 | | | | | 110 | A12/B12 |
| 20×20 | | | | | 125 | A16/B16 |
| 25×25 | | | | | 140 | A20/B20 |
| 32×32 | | | | | 170 | A25/B25 |
Grooving turning tool
194620 PRECITOOL, right P20
194630 PRECITOOL, left P20
194640 PRECITOOL, right P40
194650 PRECITOOL, right K20
194670 PRECITOOL, left K20
h × w l
| 194620 | 194630 | 194640 | 194650 | 194670 | 1 | ISO/DIN HM sheet R/L | |
| mm | mm |
12×8 100 D3
| 16×10 | | | | | | 110 | D4 |
| 20×12 | | | | | | 125 | D5 |
| 25×16 | | | | | | 140 | D6 |
| 32×20 | | | | | | 170 | D8 |
left right
w
DIN ISO Carbide 4980 6
left right
w
DIN ISO
Carbide 4981 7
left right w
