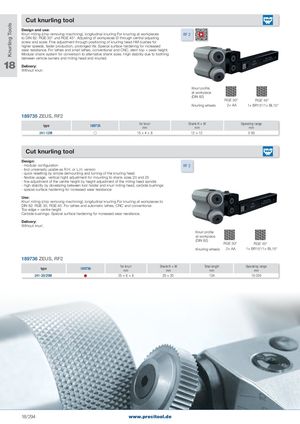

Knurling Tools Cut knurling tool Design and use: Knurl milling (chip removing machining), longitudinal knurling For knurling at workpieces RF 2 to DIN 82: RGE 30° und RGE 45°. Adjusting of workpieces Ø through central adjusting screw and scale. Fine adjustment through positioning of knurling head HM bushes for higher speeds, faster production, prolonged life. Special surface hardening for increased wear resistance. For lathes and small lathes, conventional and CNC, stem top = peak height. Modular shank system for conversion to alternative shank sizes. High stability due to toothing between vehicle owners and milling head and knurled. 18 Delivery: Without knurl. Knurl profile at workpiece (DIN 82) RGE 30° RGE 45° Knurling wheels 2× AA 1× BR15°/1× BL15° 189735 ZEUS, RF2 type 189735 for knurlmm Shank H × W Operating rangemmmm 241-12M  15 × 4 × 8 12 × 12 3-50 Cut knurling tool Design: - modular configuration RF 2 - tool universally usable as R.H. or L.H. version - quick resetting by simple demounting and turning of the knurling head - flexible usage: vertical hight adjustment for mounting to shank sizes 20 and 25 - fine adjustment of the centre height by height adjustment of the milling head spindle - high stability by dovetailing between tool holder and knurl milling head, carbide bushings - special surface hardening for increased wear resistance Use: Knurl milling (chip removing machining), longitudinal knurling For knurling at workpieces to DIN 82: RGE 30, RGE 45. For lathes and automatic lathes, CNC and conventional. Top edge = centre height. Carbide bushings. Special surface hardening for increased wear resistance. Delivery: Without knurl. Knurl profile at workpiece (DIN 82) RGE 30° RGE 45° Knurling wheels 2× AA 1× BR15°/1× BL15° 189736 ZEUS, RF2 type 189736 for knurl Shank H × W Total length Operating rangemmmmmmmm 241-20/25M  25 × 6 × 8 20 × 20 134 10-250 18/294 www.precitool.de
