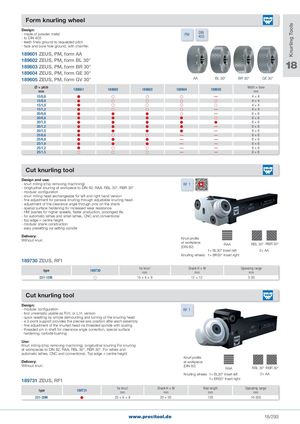

Form knurling wheel
- made of powder metal DIN PM - to DIN 403 403
| - teeth finely ground to r - face and bore hole gro 189601 ZEUS, PM 189602 ZEUS, PM 189603 ZEUS, PM | equested pitch und, with chamfer. , form AA , form BL 30° , form BR 30° | |||||||
| 189604 ZEUS, PM | , form GE 30° | |||||||
| 189605 ZEUS, PM | , form GV 30° | AA | BL 30° | BR 30° | GE 30° | |||
| X× pitch mm | 189601 | 189602 | 189603 | 189604 | 189605 | Width × mm | bore | |
| 15/0,6 | | | | | — | 4 × | 4 | |
| 15/0,8 | | | | | | 4 × | 4 | |
| 15/1,0 | | | | | | 4 × | 4 | |
| 15/1,2 | | | | | — | 4 × | 4 | |
| 20/0,6 | | | | | — | 8 × | 6 | |
| 20/0,8 | | | | | | 8 × | 6 | |
| 20/1,0 | | | | | | 8 × | 6 | |
| 20/1,2 | | | | | — | 8 × | 6 | |
| 20/1,5 | | | | | — | 8 × | 6 | |
| 25/0,6 | | | | — | — | 8 × | 6 | |
| 25/0,8 | | | | — | — | 8 × | 6 | |
| 25/1,0 | | | | — | — | 8 × | 6 | |
| 25/1,2 | | | | — | — | 8 × | 6 | |
| 25/1,5 | | | | — | — | 8 × | 6 |
Cut knurling tool
Design and use: - knurl milling (chip removing machining) - longitudinal knurling at workpiece to DIN 82: RAA, RBL 30°, RBR 30° - modular configuration - knurl milling head exchangeable for left and right hand version - fine adjustment for paraxial knurling through adjustable knurling head - adjustment of the clearance angle through pins on the shank - special surface hardening for increased wear resistance - HM bushes for higher speeds, faster production, prolonged life. - for automatic lathes and small lathes, CNC and conventional - top edge = centre height - modular shank construction - easy presetting via setting spindle
Delivery: Without knurl.
189730 ZEUS, RF1
RF 1
Knurl profile at workpiece RBL 30° RBR 30° RAA (DIN 82) 1× BL30° Insert left 2× AA Knurling wheels 1× BR30° Insert right
| type 189730 | for knurl mm | Shank H × W mm | Operating range mm |
| 231-12M | 15 × 4 × 8 | 12 × 12 | 3-50 |
Cut knurling tool
Design: - modular configuration RF 1 - tool universally usable as R.H. or L.H. version - quick resetting by simple demounting and turning of the knurling head - a 3-point support provides the precise axis position after each assembly - fine adjustment of the knurled head via threaded spindle with scaling - threaded pin in shaft for clearance angle correction, special surface hardening, carbide bushing
Use: Knurl milling (chip removing machining), longitudinal knurling For knurling at workpieces to DIN 82: RAA, RBL 30°, RBR 30°. For lathes and automatic lathes, CNC and conventional. Top edge = centre height Knurl profile
Delivery: at workpiece Without knurl. (DIN 82) RAA RBL 30° RBR 30°
189295 ZEUS, spare jaw Knurling wheels 1× BL30° Insert left 2× AA
189731 ZEUS, RF1 1× BR30° Insert right
| type | 189731 | for knurl mm | Shank H × W mm | Total length mm | Operating range mm |
| 231-20M | | 25 × 6 × 8 | 20 × 20 | 129 | 10-300 |
