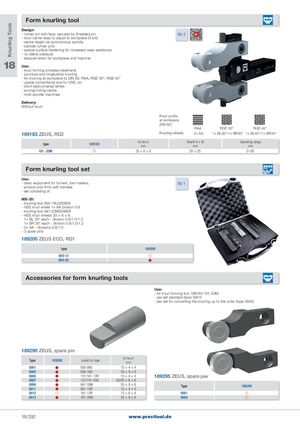

- runner pin with face, secured by threaded pin - knurl carrier easy to adjust to workpiece Ø and centre height via synchronous spindle - carbide runner pins - special surface hardening for increased wear resistance - no lateral pressure 18 - reduced strain for workpiece and machine
Use: - knurl forming (chipless treatment) - puncture and longitudinal knurling - for knurling at workpiece to DIN 82: RAA, RGE 30°, RGE 45° - usable conventional and for CNC on: - short bed/universal lathes - turning/milling centre - multi-spindle machines
Delivery: Without knurl.
189183 ZEUS, RD2
RD 2
Knurl profile at workpiece (DIN 82)
RAA RGE 30° RGE 45°
Knurling wheels 2× AA 1× BL30°/1× BR30° 1× BL45°/1× BR45°
| type 189183 | for knurl mm | Shank H × W mm | Operating range mm |
| 161 - 20M X | 25 × 8 × 6 | 20 × 25 | 0 - 65 |
Form knurling tool set
Use: - basic equipment for turners, tool makers, RD 1 schools and firms with trainees - set consisting of:
800-20: - knurling tool 830-16U250806 - HSS knurl wheel 1× AA division 0.8 - knurling tool 841-20M200806 - HSS knurl wheels 20 × 8 × 6: 1× BL 30° each - division 0.8/1.0/1.2 1× BR 30° each - division 0.8/1.0/1.2 - 2× AA - divisions 0.8/1.0 - 3 spare pins
189200 ZEUS ECO, RD1
| type | 189200 |
| 800-12 | |
| 800-20 | |
Accessories for form knurling tools
Use: - for knurl forming tool 189183 161-20M - jaw set standard (type 0001) - jaw set for converting the knurling up to the collar (type 0003)
189290 ZEUS, spare pin
| Type | 189290 | for knurl | |||
| suited for type | |||||
| mm | |||||
| 0001 | | 830-08U | 15 × 4 × 4 | ||
| 0003 | | 830-16U | 20 × 8 × 6 | ||
| 0005 | | 131/161-12R | 10 × 4 × 4 | 189295 ZEUS, spare jaw | |
| 0007 | | 131/141-20U | 20/25 × 8 × 6 | ||
| 0009 | | 841-20M | 20 × 8 × 6 | Type | 189295 |
| 0011 | | 851-12R | 15 × 4 × 4 | ||
| 0012 | | 161-12R | 15 × 6 × 4 | 0001 | |
| 0013 | | 161-20M | 25 × 8 × 6 | 0003 | |
