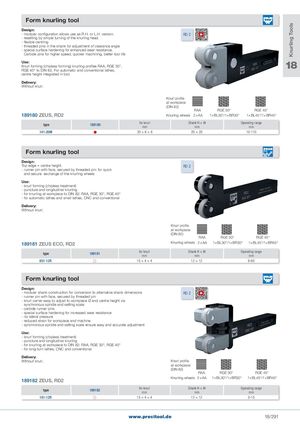

- modular configuration allows use as R.H. or L.H. version. - resetting by simple turning of the knurling head. - flexible centring - threaded pins in the shank for adjustment of clearance angle - special surface hardening for enhanced wear resistance. Carbide pins for higher speed, quicker machining, better tool life
Use: Knurl forming (chipless forming) knurling profiles RAA, RGE 30°, RGE 45° to DIN 82. For automatic and conventional lathes, centre height integrated in tool.
Delivery: Without knurl.
189180 ZEUS, RD2
type 189180 141-20M
Form knurling tool
Design: Top edge = centre height. - runner pin with face, secured by threaded pin: for quick and secure exchange of the knurling wheels
Use: - knurl forming (chipless treatment) - puncture and longitudinal knurling - for knurling at workpiece to DIN 82: RAA, RGE 30°, RGE 45° - for automatic lathes and small lathes, CNC and conventional
Delivery: Without knurl.
RD 2
18
Knurl profile at workpiece (DIN 82)
RAA RGE 30° RGE 45°
Knurling wheels 2×AA 1×BL30°/1×BR30° 1×BL45°/1×BR45°
for knurl Shank H × W Operating range
| mm | mm | mm | |
| 20 × 8 × 6 | 20 × 20 | 10-110 |
RD 2
Knurl profile at workpiece (DIN 82)
RAA RGE 30° RGE 45°
189181 ZEUS ECO, RD2 Knurling wheels 2×AA 1×BL30°/1×BR30° 1×BL45°/1×BR45°
| for knurl | Shank H × W | Operating range | ||
| type | 189181 |
| mm | mm | mm | |||
| 851-12R | | 15 × 4 × 4 | 12 × 12 | 6-60 |
Form knurling tool Design: - modular shank construction for conversion to alternative shank dimensions RD 2 - runner pin with face, secured by threaded pin
- knurl carrier easy to adjust to workpiece Ø and centre height via synchronous spindle and setting scale - carbide runner pins - special surface hardening for increased wear resistance - no lateral pressure - reduced strain for workpiece and machine - synchronous spindle and setting scale ensure easy and accurate adjustment
Use: - knurl forming (chipless treatment) - puncture and longitudinal knurling - for knurling at workpiece to DIN 82: RAA, RGE 30°, RGE 45° - for long-turn lathes, CNC and conventional
Delivery: Without knurl. Knurl profile at workpiece (DIN 82)
RAA RGE 30° RGE 45°
189182 ZEUS, RD2 Knurling wheels 2×AA 1×BL30°/1×BR30° 1×BL45°/1×BR45°
| type 189182 | for knurl mm | Shank H × W mm | Operating range mm |
| 161-12R | 15 × 4 × 4 | 12 × 12 | 0-15 |
