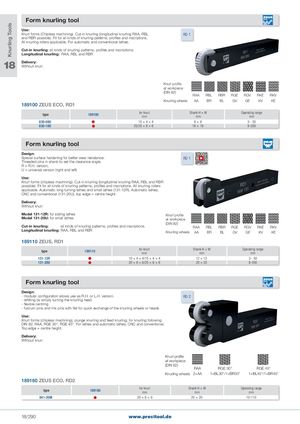

Knurl forms (Chipless machining). Cut-in knurling (longitudinal knurling RAA, RBL RD 1 and RBR possible). Fit for all kinds of knurling patterns, profiles and inscriptions. All knurling rollers applicable. For automatic and conventional lathes.
Cut-in knurling: all kinds of knurling patterns, profiles and inscriptions.
Longitudinal knurling: RAA, RBL and RBR 18 Delivery: Without knurl.
Knurl profile at workpiece (DIN 82)
| RAA | RBL | RBR | RGE | RGV | RKE | RKV | |||
| Knurling wheels AA | BR | BL | GV | GE | KV | KE | |||
| 189100 ZEUS ECO, RD1 | |||||||||
| type | 189100 | for knurl | Shank H × W | Operating range | |||||
| mm | mm | mm | |||||||
| 830-08U | | 15 × 4 × 4 | 8 × 8 | 3- 50 | |||||
| 830-16U | | 25/20 × 8 × 6 | 16 × 16 | 8-200 |
Form knurling tool Design: Special surface hardening for better wear resistance. RD 1 Threaded pins in shank to set the clearance angle.
R = R.H. version, U = universal version (right and left)
Use: Knurl forms (chipless machining). Cut-in knurling (longitudinal knurling RAA, RBL and RBR possible). Fit for all kinds of knurling patterns, profiles and inscriptions. All knurling rollers applicable. Automatic long turning lathes and small lathes (131-12R). Automatic lathes, CNC and conventional (131-20U), top edge = centre height.
Delivery: Without knurl.
Model 131-12R: for sliding lathes Knurl profile
Model 131-20U: for small lathes at workpiece (DIN 82)
| Cut-in knurling: | all kinds of knurling patterns, profiles and inscriptions. | RAA | RBL | RBR | RGE | RGV | RKE | RKV | |
| Longitudinal knurling: RAA, RBL and RBR | Knurling wheels | ||||||||
| AA | BR | BL | GV | GE | KV | KE |
189110 ZEUS, RD1
| type | 189110 | for knurl mm | Shank H × W mm | Operating range mm |
| 131-12R | | 10 × 4 × 4/15 × 4 × 4 | 12 × 12 | 3- 50 |
| 131-20U | | 20 × 8 × 6/25 × 8 × 6 | 20 × 20 | 8-200 |
Form knurling tool
Design: - modular configuration allows use as R.H. or L.H. version. RD 2 - refitting by simply turning the knurling head - flexible centring - fulcrum pins and link pins with flat for quick exchange of the knurling wheels or heads
Use: Knurl forms (chipless machining), plunge knurling and feed knurling, for knurling following DIN 82: RAA, RGE 30°, RGE 45°. For lathes and automatic lathes, CNC and conventional. Top edge = centre height.
Delivery: Without knurl.
Knurl profile at workpiece (DIN 82)
RAA RGE 30° RGE 45°
Knurling wheels 2×AA 1×BL30°/1×BR30° 1×BL45°/1×BR45°
189160 ZEUS ECO, RD2
| type | 189160 for knurl mm | Shank H × W mm | Operating range mm |
| 841-20M | 20 × 8 × 6 | 20 × 20 | 10-110 |
