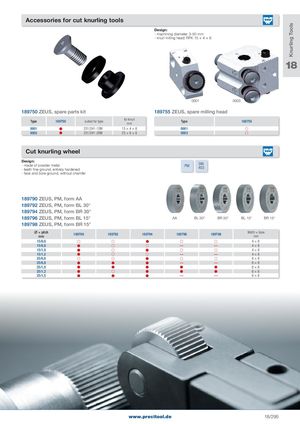

Общий каталог PRECITOOL - страница 300
Навигация
Accessories for cut knurling tools
- machining diameter 3-50 mm - knurl milling head: RFK 15 × 4 × 8
18
0001 0003
189750 ZEUS, spare parts kit 189755 ZEUS, spare milling head
for knurl
| Type | 189750 | suited for type | Type | 189755 | ||
| mm | ||||||
| 0001 | | 231/241-12M | 15 × 4 × 8 | 0001 | | |
| 0003 | | 231/241-20M | 25 × 6 × 8 | 0003 | |
Cut knurling wheel
Design: - made of powder metal DIN PM - teeth fine ground, entirely hardened 403 - face and bore ground, without chamfer
189790 ZEUS, PM, form AA
189792 ZEUS, PM, form BL 30°
189794 ZEUS, PM, form BR 30°
189796 ZEUS, PM, form BL 15° AA BL 30° BR 30° BL 15° BR 15°
189798 ZEUS, PM, form BR 15°
| X× pitch mm | 189790 | 189792 | 189794 | 189796 | 189798 | Width × bore mm |
| 15/0,6 | | | | | | 4 × 8 |
| 15/0,8 | | | | — | — | 4 × 8 |
| 15/1,0 | | | | | | 4 × 8 |
| 15/1,2 | | | | — | — | 4 × 8 |
| 25/0,6 | | | | | | 6 × 8 |
| 25/0,8 | | | | — | — | 6 × 8 |
| 25/1,0 | | | | | | 6 × 8 |
| 25/1,2 | | | | | | 6 × 8 |
| 25/1,5 | | | | — | — | 6 × 8 |
