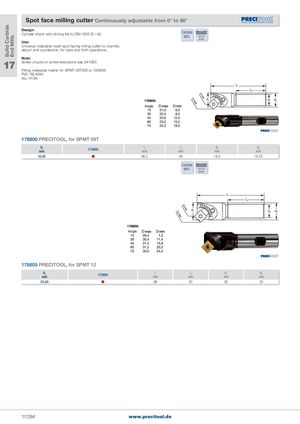

Общий каталог PRECITOOL - страница 289
Навигация
Spot face milling cutter Continuously adjustable from 0° to 90°
Cylinder shank with driving flat to DIN 1835 B / h6. Carbide WPL 1835 B shank
Use: Universal indexable insert spot facing milling cutter to chamfer, deburr and countersink, for back and forth operations.
Solid Carbide End Mills
17 Note: Screw chucks or screw extensions see 241080. Fitting indexable inserts for SPMT 09T308 or 120408: P25: WL4040 Alu: H13A
Angle
178800 PRECITOOL, for SPMT 09T
| d | l | l | d | d | |||
| 2 | 178800 | 1 | 3 | 1 | 3 | ||
| mm | mm | mm | mm | mm | |||
| 16,00 | | 86�2 | 49 | 19�5 | 18�75 |
Carbide WPL 1835 B shank
Angle
178805 PRECITOOL, for SPMT 12
| d | l | l | d | d | |
| 2 | 178805 | 1 | 3 | 1 | 3 |
| mm | mm | mm | mm | mm | |
| 20,00 | | 98 | 53 | 26 | 25 |
