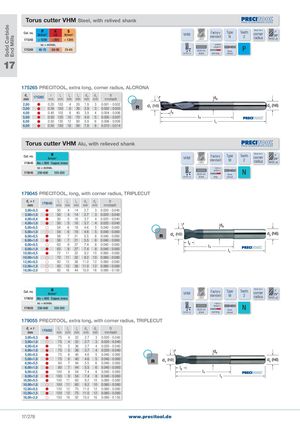

Torus cutter VHM Steel, with relived shank
| P | K | S | | | Type | Teeth | Blade form |
| N/mm2 | HB | N/mm2 | | standard | N | 2 | 30° |
| | | | | | | | Twist radius |
| 175265 | < 1200 | <300 | < 1200 | coated | | | | |
| vc = m/min. | | | | | | P | |
| 175265 | 40-75 | 60-90 | 25-65 | 6535 HA | | | | |
| | | | | | Shank | | |
| Solid Carbide End Mills | | | | Centre cut shank | overlong | relieved | | |
17
175265 PRECITOOL, extra long, corner radius, ALCRONA
| d | | r | l | l | l | d | d | fz |
| 1 | 175265 | | 1 | 2 | 4 | 3 | 2 | |
| mm | | mm | mm | mm | mm | mm | mm | mm/tooth |
| 2,00 | | 0�20 103 | | 4 | 20 | 1�9 | 3 | (h9) 0�001 - 0�002 |
| | | | | | | | R |
| 3,00 | | 0�30 103 | | 6 | 30 | 2�9 | 3 | 0�002 - 0�003 |
| 4,00 | | 0�40 103 | | 8 | 40 | 3�9 | 4 | 0�004 - 0�006 |
| 5,00 | | 0�50 125 | | 10 | 70 | 4�9 | 5 | 0�005 - 0�007 |
| 6,00 | | 0�50 135 | | 12 | 80 | 5�9 | 6 | 0�006 - 0�009 |
| 8,00 | | 0�50 150 | | 16 | 90 | 7�8 | 8 | 0�010 - 0�014 |
| Torus cutter VHM Alu, with relieved shank | | | | | | | | |
N Type Teeth Blade form
Cat. no. VHM Factory corner
| | N/mm2 | | standard | W | 2 | | | 25° |
| | | | | | | radius | Twist | |
| 179045 Alu < 600 Copper, brass | | | coated | | | | | | |
| vc = m/min. | | | | | N | | | |
| 179045 | 250-600 | 120-250 | | |
| | | 6535 HA | Shank |
Centre cut shank long relieved
179045 PRECITOOL, long, with corner radius, TRIPLECUT
| d × r | | l | l | l | d | d | fz |
| 1 | 179045 | 1 | 2 | 4 | 3 | 2 | |
| mm | | mm | mm | mm | mm | mm | mm/tooth |
| 3,00×0,3 | | 50 | 4 | 14 | 2�7 | 3 | 0�020 - 0�040 |
| 3,00×1,0 | | 50 | 4 | 14 | 2�7 | 3 | 0�020 - 0�040 |
| 4,00×0,4 | | 50 | 5 | 16 | 3�7 | 4 | 0�020 - 0�040 |
| 4,00×1,0 | | 50 | 5 | 16 | 3�7 | 4 | 0�020 - 0�040 |
| 5,00×0,5 | | 54 | 6 | 18 | 4�6 | 5 | 0�040 - 0�060 |
| 5,00×1,0 | | 54 | 6 | 18 | 4�6 | 5 | (h9) 0�040 - 0�060 |
| 6,00×0,5 | | 58 | 7 | 21 | 5�5 | 6 | R 0�040 - 0�060 |
| 6,00×1,0 | | 58 | 7 | 21 | 5�5 | 6 | 0�040 - 0�060 |
| 8,00×0,5 | | 63 | 9 | 27 | 7�4 | 8 | 0�040 - 0�060 |
| 8,00×1,0 | | 63 | 9 | 27 | 7�4 | 8 | 0�040 - 0�060 |
| 10,00×0,5 | | | 72 | 11 | 32 | 9�2 | 10 | 0�060 - 0�080 |
| 10,00×1,0 | | | 72 | 11 | 32 | 9�2 | 10 | 0�060 - 0�080 |
| 12,00×0,5 | | | 83 | 12 | 38 | 11�0 | 12 | 0�060 - 0�080 |
| 12,00×1,5 | | | 83 | 12 | 38 | 11�0 | 12 | 0�060 - 0�080 |
| 16,00×2,0 | | | 93 | 16 | 44 | 15�0 | 16 | 0�080 - 0�150 |
N Type Teeth Blade form
Cat. no. VHM Factory corner
| | N/mm2 | | standard | W | 2 | | | 25° |
| | | | | | | radius | Twist | |
| 179055 Alu < 600 Copper, brass | | | coated | | | | | | |
| vc = m/min. | | | | | N | | | |
| 179055 | 250-600 | 120-250 | | |
| | | 6535 HA | Shank |
| Centre cut | shank | overlong | relieved |
| 179055 PRECITOOL, extra long, with corner radius, TRIPLECUT | | | | |
| d × r | | l | l | l | d | d | fz |
| 1 | 179055 | 1 | 2 | 4 | 3 | 2 | |
| mm | | mm | mm | mm | mm | mm | mm/tooth |
| 3,00×0,3 | | 75 | 4 | 32 | 2�7 | 3 | 0�020 - 0�040 |
| 3,00×1,0 | | 75 | 4 | 32 | 2�7 | 3 | 0�020 - 0�040 |
| 4,00×0,4 | | 75 | 5 | 36 | 3�7 | 4 | 0�020 - 0�040 |
| 4,00×1,0 | | 75 | 5 | 36 | 3�7 | 4 | 0�020 - 0�040 |
| 5,00×0,5 | | 75 | 6 | 40 | 4�6 | 5 | 0�040 - 0�060 |
| 5,00×1,0 | | 75 | 6 | 40 | 4�6 | 5 | (h9) R 0�040 - 0�060 |
| 6,00×0,5 | | 80 | 7 | 44 | 5�5 | 6 | 0�040 - 0�060 |
| 6,00×1,0 | | 80 | 7 | 44 | 5�5 | 6 | 0�040 - 0�060 |
| 8,00×0,5 | | 100 | 9 | 54 | 7�4 | 8 | 0�040 - 0�060 |
| 8,00×1,0 | | 100 | 9 | 54 | 7�4 | 8 | 0�040 - 0�060 |
| 10,00×0,5 | | | 100 | 11 | 60 | 9�2 | 10 | 0�060 - 0�080 |
| 10,00×1,0 | | | 100 | 11 | 60 | 9�2 | 10 | 0�060 - 0�080 |
| 12,00×0,5 | | | 120 | 12 | 75 | 11�0 | 12 | 0�060 - 0�080 |
| 12,00×1,5 | | | 120 | 12 | 75 | 11�0 | 12 | 0�060 - 0�080 |
| 16,00×2,0 | | | 150 | 16 | 92 | 15�0 | 16 | 0�080 - 0�150 |
