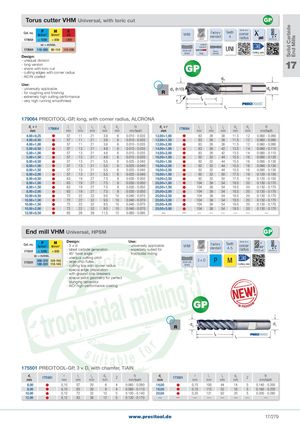

Torus cutter VHM Universal, with toric cut
| P | M | K | Teeth | Blade form | ||||
| N/mm2 | N/mm2 | HB | standard | 4 | ||||
| radius | ||||||||
| 179064 | < 1200 | < 850 | <300 | coated | Centre cut | |||
| vc = m/min. | UNI | |||||||
| 179064 110-280 80-110 110-200 | 6535 HB | |||||||
| Shank | Cutting data | |||||||
| shank | long | relieved | Solid Carbide End Mills |
Design: - unequal division 17 - long version - shank with toric cut
- cutting edges with corner radius - AlCrN coated 3
Use: - universally applicable (h10) - for roughing and finishing R - extremely high cutting performance - very high running smoothness r 4
179064 PRECITOOL-GP, long, with corner radius, ALCRONA
| d1× r mm | 179064 | l1 mm | l2 mm | l4 mm | d3 mm | d2 mm | fz mm/tooth | d1× r mm | 179064 | l1 mm | l2 mm | l4 mm | d3 mm | d2 mm | fz mm/tooth |
| 4,00×0,25 | | 57 | 11 | 21 | 3�8 | 6 | 0�010 - 0�035 | 12,00×1,00 | | 83 | 26 | 38 | 11�5 | 12 | 0�060 - 0�090 |
| 4,00×0,50 | | 57 | 11 | 21 | 3�8 | 6 | 0�010 - 0�035 | 12,00×1,50 | | 83 | 26 | 38 | 11�5 | 12 | 0�060 - 0�090 |
| 4,00×1,00 | | 57 | 11 | 21 | 3�8 | 6 | 0�010 - 0�035 | 12,00×2,00 | | 83 | 26 | 38 | 11�5 | 12 | 0�060 - 0�090 |
| 5,00×0,50 | | 57 | 13 | 21 | 4�8 | 6 | 0�015 - 0�035 | 14,00×1,00 | | 83 | 26 | 42 | 13�5 | 14 | 0�080 - 0�110 |
| 5,00×1,00 | | 57 | 13 | 21 | 4�8 | 6 | 0�015 - 0�035 | 14,00×2,00 | | 83 | 26 | 42 | 13�5 | 14 | 0�080 - 0�110 |
| 5,00×1,50 | | 57 | 13 | 21 | 4�8 | 6 | 0�015 - 0�035 | 16,00×1,00 | | 92 | 32 | 44 | 15�5 | 16 | 0�090 - 0�130 |
| 6,00×0,50 | | 57 | 13 | 21 | 5�5 | 6 | 0�025 - 0�040 | 16,00×1,50 | | 92 | 32 | 44 | 15�5 | 16 | 0�090 - 0�130 |
| 6,00×1,00 | | 57 | 13 | 21 | 5�5 | 6 | 0�025 - 0�040 | 16,00×2,00 | | 92 | 32 | 44 | 15�5 | 16 | 0�090 - 0�130 |
| 6,00×1,50 | | 57 | 13 | 21 | 5�5 | 6 | 0�025 - 0�040 | 16,00×2,50 | | 92 | 32 | 44 | 15�5 | 16 | 0�090 - 0�130 |
| 6,00×2,00 | | 57 | 13 | 21 | 5�5 | 6 | 0�025 - 0�040 | 18,00×1,50 | | 92 | 32 | 50 | 17�5 | 18 | 0�120 - 0�150 |
| 8,00×0,50 | | 63 | 19 | 27 | 7�5 | 8 | 0�030 - 0�050 | 18,00×2,50 | | 92 | 32 | 50 | 17�5 | 18 | 0�120 - 0�150 |
| 8,00×1,00 | | 63 | 19 | 27 | 7�5 | 8 | 0�030 - 0�050 | 20,00×1,00 | | 104 | 38 | 54 | 19�5 | 20 | 0�130 - 0�170 |
| 8,00×1,50 | | 63 | 19 | 27 | 7�5 | 8 | 0�030 - 0�050 | 20,00×1,50 | | 104 | 38 | 54 | 19�5 | 20 | 0�130 - 0�170 |
| 8,00×2,00 | | 63 | 19 | 27 | 7�5 | 8 | 0�030 - 0�050 | 20,00×2,00 | | 104 | 38 | 54 | 19�5 | 20 | 0�130 - 0�170 |
| 10,00×0,50 | | 72 | 22 | 32 | 9�5 | 10 | 0�040 - 0�070 | 20,00×2,50 | | 104 | 38 | 54 | 19�5 | 20 | 0�130 - 0�170 |
| 10,00×1,00 | | 72 | 22 | 32 | 9�5 | 10 | 0�040 - 0�070 | 20,00×3,00 | | 104 | 38 | 54 | 19�5 | 20 | 0�130 - 0�170 |
| 10,00×1,50 | | 72 | 22 | 32 | 9�5 | 10 | 0�040 - 0�070 | 20,00×4,00 | | 104 | 38 | 54 | 19�5 | 20 | 0�130 - 0�170 |
| 10,00×2,00 | | 72 | 22 | 32 | 9�5 | 10 | 0�040 - 0�070 | 20,00×5,00 | | 104 | 38 | 54 | 19�5 | 20 | 0�130 - 0�170 |
| 12,00×0,50 | | 83 | 26 | 38 | 11�5 | 12 | 0�060 - 0�090 | — | — | — | — | — | — | — | — |
End mill VHM Universal, HPSM
P M Design: Use:
Factory Teeth Blade form
Cat. no. - 3 × d - universally applicable VHM corner
N/mm2 N/mm2 standard 4-5 45°
- latest carbide generation - especially suited for radius Twist
| 175501 | < 1200 | < 850 | coated | Centre cut | ||
| - 45° twist angle | trochoidal milling |
vc = m/min. - unequal cutting pitcheciallyy P M
| 120-150 | - large chip flutespp | 3 × D | ||||
| 175501 300-370 | 6535 HB | |||||
| 180-220 | 110-140 | - cutting tips with corner radius | shank | Cutting data |
- special edge preparation - with ground chip breakersEs - special point geometry for perfect plunging behaviour
- AlCr high-performance coating
d d
| R | 2 | 1 | ||
| suitablefo r | ||||
| 175501 PRECITOOL-GP, 3 × D, with chamfer, TiAlN |
| d | r | l | l | d | fz d | r | l | l | d | fz | ||||||
| 1 | 175501 | 1 | 2 | 2 | Z | 1 | 175501 | 1 | 2 | 2 | Z | |||||
| mm | mm | mm | mm | mm | mm/tooth | mm | mm | mm | mm | mm | mm/tooth | |||||
| 6,00 | | 0,10 | 57 | 20 | 6 | 4 | 0�060 - 0�090 | 14,00 | | 0,15 | 100 | 44 | 14 | 5 | 0�140 - 0�200 | |
| 8,00 | | 0,10 | 63 | 26 | 8 | 4 | 0�080 - 0�110 | 16,00 | | 0,15 | 115 | 52 | 16 | 5 | 0�160 - 0�220 | |
| 10,00 | | 0,10 | 72 | 32 | 10 | 5 | 0�100 - 0�140 | 20,00 | | 0,20 | 131 | 62 | 20 | 5 | 0�200 - 0�280 | |
| 12,00 | | 0,12 | 83 | 38 | 12 | 5 | 0�120 - 0�170 | — | — | — | — | — | — | — | — |
