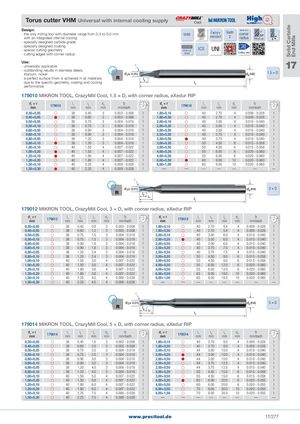

Torus cutter VHM Universal with internal cooling supply
Factory Teeth Blade form
- the only milling tool with diameter range from 0.3 to 6.0 mm VHM corner
standard 2 30°
| with an integrated internal cooling | Twist radius | ||
| - specially designed carbide grade | coated | ||
| - specially designed coating | UNI | ||
| - special cutting geometry | ICS | ||
| 6535 HA | |||
| - cutting edges with corner radius | shank | Solid Carbide End Mills Cutting data |
Use: 17 - universally applicable r - outstanding results in stainless steels, titanium, nickel 1.5 × D
(± 0,01) (h6) - a perfect surface finish is achieved in all materials R due to the specific geometry, coating and cooling performance
179010 MIKRON TOOL, CrazyMill Cool, 1.5 × D, with corner radius, eXedur RIP
| d1× r mm | 179010 | l1 mm | l2 mm | d2 mm | fz mm/tooth | |
| 0,30×0,05 | | 38 | 0�45 | 3 | 0�003 - 0�008 | 1 |
| 0,40×0,05 | | 38 | 0�60 | 3 | 0�003 - 0�008 | 1 |
| 0,50×0,05 | | 38 | 0�75 | 3 | 0�004 - 0�018 | 1 |
| 0,50×0,10 | | 38 | 0�75 | 3 | 0�004 - 0�018 | 1 |
| 0,60×0,05 | | 38 | 0�90 | 3 | 0�004 - 0�018 | 1 |
| 0,60×0,10 | | 38 | 0�90 | 3 | 0�004 - 0�018 | 1 |
| 0,80×0,05 | | 38 | 1�20 | 3 | 0�004 - 0�018 | 1 |
| 0,80×0,10 | | 38 | 1�20 | 3 | 0�004 - 0�018 | 1 |
| 1,00×0,10 | | 40 | 1�50 | 4 | 0�007 - 0�022 | 1 |
| 1,00×0,20 | | 40 | 1�50 | 4 | 0�007 - 0�022 | 1 |
| 1,20×0,10 | | 40 | 1�80 | 4 | 0�007 - 0�022 | 1 |
| 1,20×0,20 | | 40 | 1�80 | 4 | 0�007 - 0�022 | 1 |
| 1,50×0,10 | | 40 | 2�25 | 4 | 0�009 - 0�028 | 1 |
| 1,50×0,30 | | 40 | 2�25 | 4 | 0�009 - 0�028 | 1 |
| d1× r mm | 179010 | l1 mm | l2 mm | d2 mm | fz mm/tooth | |
| 1,80×0,10 | | 40 | 2�70 | 4 | 0�009 - 0�028 | 1 |
| 1,80×0,30 | | 40 | 2�70 | 4 | 0�009 - 0�028 | 1 |
| 2,00×0,10 | | 40 | 3�00 | 4 | 0�010 - 0�040 | 1 |
| 2,00×0,20 | | 40 | 3�00 | 4 | 0�010 - 0�040 | 1 |
| 2,00×0,50 | | 40 | 3�00 | 4 | 0�010 - 0�040 | 1 |
| 2,50×0,20 | | 40 | 3�75 | 4 | 0�010 - 0�040 | 1 |
| 2,50×0,50 | | 40 | 3�75 | 4 | 0�010 - 0�040 | 1 |
| 3,00×0,20 | | 50 | 4�50 | 6 | 0�015 - 0�058 | 1 |
| 3,00×0,50 | | 50 | 4�50 | 6 | 0�015 - 0�058 | 1 |
| 4,00×0,20 | | 50 | 6�00 | 6 | 0�020 - 0�060 | 1 |
| 4,00×0,50 | | 50 | 6�00 | 6 | 0�020 - 0�060 | 1 |
| 6,00×0,50 | | 60 | 9�00 | 10 | 0�020 - 0�060 | 1 |
| 6,00×1,00 — | — | 60 — | 9�00 — | 10 — | 0�020 - 0�060 — | 1 — |
r
(± 0,01) (h6) 3 × D
R 4 179012 MIKRON TOOL, CrazyMill Cool, 3 × D, with corner radius, eXedur RIP
| d1× r mm | 179012 | l1 mm | l2 mm | l4 mm | d2 mm | fz mm/tooth | d1× r mm | 179012 | l1 mm | l2 mm | l4 mm | d2 mm | fz mm/tooth | ||
| 0,30×0,05 | | 38 | 0�45 | 0�9 | 3 | 0�003 - 0�008 | 1 | 1,80×0,10 | | 40 | 2�70 | 5�4 | 4 | 0�009 - 0�028 | 1 |
| 0,40×0,05 | | 38 | 0�60 | 1�2 | 3 | 0�003 - 0�008 | 1 | 1,80×0,30 | | 40 | 2�70 | 5�4 | 4 | 0�009 - 0�028 | 1 |
| 0,50×0,05 | | 38 | 0�75 | 1�5 | 3 | 0�004 - 0�018 | 1 | 2,00×0,10 | | 40 | 3�00 | 6�0 | 4 | 0�010 - 0�040 | 1 |
| 0,50×0,10 | | 38 | 0�75 | 1�5 | 3 | 0�004 - 0�018 | 1 | 2,00×0,20 | | 40 | 3�00 | 6�0 | 4 | 0�010 - 0�040 | 1 |
| 0,60×0,05 | | 38 | 0�90 | 1�8 | 3 | 0�004 - 0�018 | 1 | 2,00×0,50 | | 40 | 3�00 | 6�0 | 4 | 0�010 - 0�040 | 1 |
| 0,60×0,10 | | 38 | 0�90 | 1�8 | 3 | 0�004 - 0�018 | 1 | 2,50×0,20 | | 40 | 3�75 | 7�5 | 4 | 0�010 - 0�040 | 1 |
| 0,80×0,05 | | 38 | 1�20 | 2�4 | 3 | 0�004 - 0�018 | 1 | 2,50×0,50 | | 40 | 3�75 | 7�5 | 4 | 0�010 - 0�040 | 1 |
| 0,80×0,10 | | 38 | 1�20 | 2�4 | 3 | 0�004 - 0�018 | 1 | 3,00×0,20 | | 50 | 4�50 | 9�0 | 6 | 0�015 - 0�058 | 1 |
| 1,00×0,10 | | 40 | 1�50 | 3�0 | 4 | 0�007 - 0�022 | 1 | 3,00×0,50 | | 50 | 4�50 | 9�0 | 6 | 0�015 - 0�058 | 1 |
| 1,00×0,20 | | 40 | 1�50 | 3�0 | 4 | 0�007 - 0�022 | 1 | 4,00×0,20 | | 55 | 6�00 | 12�0 | 6 | 0�020 - 0�060 | 1 |
| 1,20×0,10 | | 40 | 1�80 | 3�6 | 4 | 0�007 - 0�022 | 1 | 4,00×0,50 | | 55 | 6�00 | 12�0 | 6 | 0�020 - 0�060 | 1 |
| 1,20×0,20 | | 40 | 1�80 | 3�6 | 4 | 0�007 - 0�022 | 1 | 6,00×0,50 | | 65 | 9�00 | 18�0 | 10 | 0�020 - 0�060 | 1 |
| 1,50×0,10 | | 40 | 2�25 | 4�5 | 4 | 0�009 - 0�028 | 1 | 6,00×1,00 | | 65 | 9�00 | 18�0 | 10 | 0�020 - 0�060 | 1 |
| 1,50×0,30 | | 40 | 2�25 | 4�5 | 4 | 0�009 - 0�028 | 1 | — | — | — | — | — | — | — | — |
r
(± 0,01) (h6) 5 × D
R 4 179014 MIKRON TOOL, CrazyMill Cool, 5 × D, with corner radius, eXedur RIP
| d1× r mm | 179014 | l1 mm | l2 mm | l4 mm | d2 mm | fz mm/tooth | d1× r mm | 179014 | l1 mm | l2 mm | l4 mm | d2 mm | fz mm/tooth | ||
| 0,30×0,05 | | 38 | 0�45 | 1�5 | 3 | 0�003 - 0�008 | 1 | 1,80×0,10 | | 40 | 2�70 | 9�0 | 4 | 0�009 - 0�028 | 1 |
| 0,40×0,05 | | 38 | 0�60 | 2�0 | 3 | 0�003 - 0�008 | 1 | 1,80×0,30 | | 40 | 2�70 | 9�0 | 4 | 0�009 - 0�028 | 1 |
| 0,50×0,05 | | 38 | 0�75 | 2�5 | 3 | 0�004 - 0�018 | 1 | 2,00×0,10 | | 44 | 3�00 | 10�0 | 4 | 0�010 - 0�040 | 1 |
| 0,50×0,10 | | 38 | 0�75 | 2�5 | 3 | 0�004 - 0�018 | 1 | 2,00×0,20 | | 44 | 3�00 | 10�0 | 4 | 0�010 - 0�040 | 1 |
| 0,60×0,05 | | 38 | 0�90 | 3�0 | 3 | 0�004 - 0�018 | 1 | 2,00×0,50 | | 44 | 3�00 | 10�0 | 4 | 0�010 - 0�040 | 1 |
| 0,60×0,10 | | 38 | 0�90 | 3�0 | 3 | 0�004 - 0�018 | 1 | 2,50×0,20 | | 44 | 3�75 | 12�5 | 4 | 0�010 - 0�040 | 1 |
| 0,80×0,05 | | 38 | 1�20 | 4�0 | 3 | 0�004 - 0�018 | 1 | 2,50×0,50 | | 44 | 3�75 | 12�5 | 4 | 0�010 - 0�040 | 1 |
| 0,80×0,10 | | 38 | 1�20 | 4�0 | 3 | 0�004 - 0�018 | 1 | 3,00×0,20 | | 55 | 4�50 | 15�0 | 6 | 0�015 - 0�058 | 1 |
| 1,00×0,10 | | 40 | 1�50 | 5�0 | 4 | 0�007 - 0�022 | 1 | 3,00×0,50 | | 55 | 4�50 | 15�0 | 6 | 0�015 - 0�058 | 1 |
| 1,00×0,20 | | 40 | 1�50 | 5�0 | 4 | 0�007 - 0�022 | 1 | 4,00×0,20 | | 60 | 6�00 | 20�0 | 6 | 0�020 - 0�055 | 1 |
| 1,20×0,10 | | 40 | 1�80 | 6�0 | 4 | 0�007 - 0�022 | 1 | 4,00×0,50 | | 60 | 6�00 | 20�0 | 6 | 0�020 - 0�055 | 1 |
| 1,20×0,20 | | 40 | 1�80 | 6�0 | 4 | 0�007 - 0�022 | 1 | 6,00×0,50 | | 70 | 9�00 | 30�0 | 10 | 0�020 - 0�055 | 1 |
| 1,50×0,10 | | 40 | 2�25 | 7�5 | 4 | 0�009 - 0�028 | 1 | 6,00×1,00 | | 70 | 9�00 | 30�0 | 10 | 0�020 - 0�055 | 1 |
| 1,50×0,30 | | 40 | 2�25 | 7�5 | 4 | 0�009 - 0�028 | 1 | — | — | — | — | — | — | — | — |
