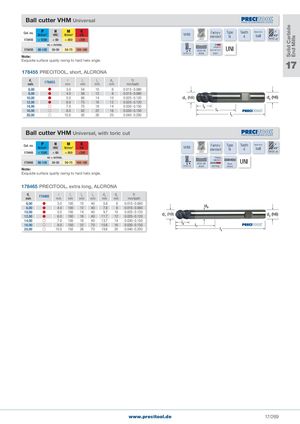

Общий каталог PRECITOOL - страница 274

Solid Carbide End Mills Ball cutter VHM Universal Cat. no. PN/mm2 HHRC MN/mm2 KHB178455< 1200< 60< 850<300 VHM Factory Type Teeth Blade formstandardNcoated4ball45°Twist vc = m/min. 178455 60-120 30-50 50-75 100-180 6535 HB UNI Centre cut shank short Note: Exquisite surface quality owing to hard helix angle. 17 178455 PRECITOOL, short, ALCRONA d1mm 178455 rmm l1 l2 d2mmmmmm fzmm/tooth 6,00  3.0 54 10 6 0.015 - 0.080 8,00  4.0 58 12 8 0.015 - 0.080 10,00  5.0 66 14 10 0.025 - 0.120 (h9) 12,00  6.0 73 16 12 0.025 - 0.120 14,00  7.0 75 18 14 0.030 - 0.150 16,00  8.0 82 22 16 0.030 - 0.150 20,00  10.0 92 26 20 0.040 - 0.200 Ball cutter VHM Universal, with toric cut Cat. no. PN/mm2 HHRC MN/mm2 KHB178465< 1200< 60< 850<300 VHM Factory Type Teeth Blade formstandardNcoated4ball45°Twist vc = m/min. 178465 60-120 30-50 50-75 100-180 6535 HB Shank UNI Centre cut shank overlong relieved Note: Exquisite surface quality owing to hard helix angle. 178465 PRECITOOL, extra long, ALCRONA d1mm 178465 rmm l1 l2 l4mmmmmmd3mm d2mm fzmm/tooth 6,00  3.0 100 10 40 5.8 6 0.015 - 0.080 8,00  4.0 100 12 40 7.8 8 0.015 - 0.080 10,00  5.0 100 14 40 9.7 10 0.025 - 0.12012,006.0100164011.7120.025 - 0.120(h9) 14,00  7.0 100 18 40 13.7 14 0.030 - 0.150 16,00  8.0 150 22 70 15.6 16 0.030 - 0.150 20,00  10.0 150 26 70 19.6 20 0.040 - 0.200 www.precitool.de 17/269
