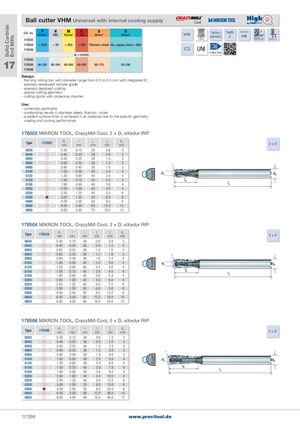

Общий каталог PRECITOOL - страница 273
Навигация
| Bal | l cutt | er V | HM U | nivers | al with | internal cooling supply | |||||||
| Cat. no. 178502 | P N/mm2 | H HRC | M N/mm2 | K HB | S N/mm2 | N N/mm2 | VHM | coated | Factory standard | Teeth 2 | Blade form ball | Twist 30° | Centre cut |
| 178504 178506 | < 1200 | < 55 | < 850 v | < 850 c = m/min. | Titanium, nicke | l Alu, copper, brass < 600 | ICS | UNI | Cutting data | ||||
| 178502 | |||||||||||||
| 178504 178506 | 60-280 | 60-240 | 60-280 | 60-200 | 60-170 | 60-280 |
Design: - the only milling tool with diameter range from 0.3 to 6.0 mm with integrated IC - specially developed carbide grade - specially designed coating - special cutting geometry - cutting points with protective chamfer
Use: - universally applicable - outstanding results in stainless steels, titanium, nickel - a perfect surface finish is achieved in all materials due to the specific geometry, coating and cooling performance
178502 MIKRON TOOL, CrazyMill Cool, 2 × D, eXedur RIP
| Type | 178502 | d1 mm | r mm | l1 mm | l2 mm | d2 mm |
| 0030 | | 0�30 | 0�15 | 38 | 0�6 | 3 |
| 0040 | | 0�40 | 0�20 | 38 | 0�8 | 3 |
| 0050 | | 0�50 | 0�25 | 38 | 1�0 | 3 |
| 0060 | | 0�60 | 0�30 | 38 | 1�2 | 3 |
| 0080 | | 0�80 | 0�40 | 38 | 1�6 | 3 |
| 0100 | | 1�00 | 0�50 | 40 | 2�0 | 4 |
| 0120 | | 1�20 | 0�60 | 40 | 2�4 | 4 |
| 0150 | | 1�50 | 0�75 | 40 | 3�0 | 4 |
| 0180 | | 1�80 | 0�90 | 40 | 3�6 | 4 |
| 0200 | | 2�00 | 1�00 | 40 | 4�0 | 4 |
| 0250 | | 2�50 | 1�25 | 40 | 5�0 | 6 |
| 0300 | | 3�00 | 1�50 | 50 | 6�0 | 6 |
| 0400 | | 4�00 | 2�00 | 50 | 8�0 | 6 |
| 0600 | | 6�00 | 3�00 | 60 | 12�0 | 10 |
| 0800 | | 8�00 | 4�00 | 70 | 16�0 | 12 |
r
178504 MIKRON TOOL, CrazyMill Cool, 3 × D, eXedur RIP
| Type | 178504 | d1 mm | r mm | l1 mm | l2 mm | l4 mm | d2 mm | 3 × D | ||
| 0030 | | 0�30 | 0�15 | 38 | 0�6 | 0�9 | 3 | |||
| 0040 | | 0�40 | 0�20 | 38 | 0�8 | 1�2 | 3 | |||
| 0050 | | 0�50 | 0�25 | 38 | 1�0 | 1�5 | 3 | |||
| 0060 | | 0�60 | 0�30 | 38 | 1�2 | 1�8 | 3 | r | ||
| 0080 | | 0�80 | 0�40 | 38 | 1�6 | 2�4 | 3 | l | ||
| 0100 | | 1�00 | 0�50 | 40 | 2�0 | 3�0 | 4 | uge | ||
| 0120 | | 1�20 | 0�60 | 40 | 2�4 | 3�6 | 4 | K | ||
| 0150 | | 1�50 | 0�75 | 40 | 3�0 | 4�5 | 4 | |||
| 0180 | | 1�80 | 0�90 | 40 | 3�6 | 5�4 | 4 | |||
| 0200 | | 2�00 | 1�00 | 40 | 4�0 | 6�0 | 4 | |||
| 0250 | | 2�50 | 1�25 | 40 | 5�0 | 7�5 | 6 | |||
| 0300 | | 3�00 | 1�50 | 50 | 6�0 | 9�0 | 6 | |||
| 0400 | | 4�00 | 2�00 | 55 | 8�0 | 12�0 | 6 | |||
| 0600 | | 6�00 | 3�00 | 65 | 12�0 | 18�0 | 10 | |||
| 0800 | | 8�00 | 4�00 | 80 | 16�0 | 24�0 | 12 |
178506 MIKRON TOOL, CrazyMill Cool, 5 × D, eXedur RIP
| Type | 178506 | d1 mm | r mm | l1 mm | l2 mm | l4 mm | d2 mm | 5 × D | ||
| 0030 | | 0�30 | 0�15 | 38 | 0�6 | 1�5 | 3 | |||
| 0040 | | 0�40 | 0�20 | 38 | 0�8 | 2�0 | 3 | |||
| 0050 | | 0�50 | 0�25 | 38 | 1�0 | 2�5 | 3 | |||
| 0060 | | 0�60 | 0�30 | 38 | 1�2 | 3�0 | 3 | r | ||
| 0080 | | 0�80 | 0�40 | 38 | 1�6 | 4�0 | 3 | l | ||
| 0100 | | 1�00 | 0�50 | 40 | 2�0 | 5�0 | 4 | ge | ||
| 0120 | | 1�20 | 0�60 | 40 | 2�4 | 6�0 | 4 | Ku | ||
| 0150 | | 1�50 | 0�75 | 40 | 3�0 | 7�5 | 4 | |||
| 0180 | | 1�80 | 0�90 | 40 | 3�6 | 9�0 | 4 | |||
| 0200 | | 2�00 | 1�00 | 40 | 4�0 | 10�0 | 4 | |||
| 0250 | | 2�50 | 1�25 | 40 | 5�0 | 12�5 | 6 | |||
| 0300 | | 3�00 | 1�50 | 50 | 6�0 | 15�0 | 6 | |||
| 0400 | | 4�00 | 2�00 | 55 | 8�0 | 20�0 | 6 | |||
| 0600 | | 6�00 | 3�00 | 65 | 12�0 | 30�0 | 10 | |||
| 0800 | | 8�00 | 4�00 | 80 | 16�0 | 40�0 | 12 |
