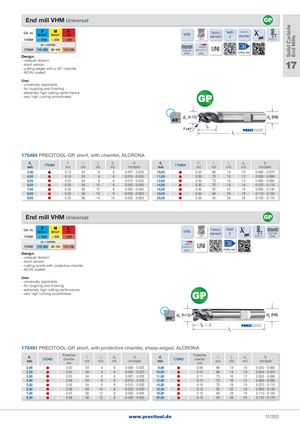

Solid Carbide End Mills End mill VHM Universal Cat. no. PN/mm2 MN/mm2 KHB VHM Factory Teeth Blade formstandard4chamfer 175484 < 1200 < 850 <300 coated Centre cut vc = m/min. 175484 110-280 80-140 110-200 6535 HB UNI shank short Cutting data Design: - unequal division- short version- cutting edges with a 45° chamfer 17 - AlCrN coated Use: - universally applicable - for roughing and finishing - extremely high cutting performance - very high running smoothness 45° (h10) 175484 PRECITOOL-GP, short, with chamfer, ALCRONA d1mm 175484 Fmm l l d12 2mmmmmm fzmm/tooth d1mm 175484 Fmm l l d12 2mmmmmm fzmm/tooth 3,00  0.13 54 6 6 0.007 - 0.028 10,00  0.30 66 14 10 0.040 - 0.070 4,00  0.18 54 8 6 0.010 - 0.035 11,00  0.30 73 16 12 0.050 - 0.080 5,00  0.20 54 9 6 0.015 - 0.035 12,00  0.30 73 16 12 0.060 - 0.090 6,00  0.20 54 10 6 0.025 - 0.040 14,00  0.30 75 18 14 0.070 - 0.110 7,00  0.20 58 12 8 0.030 - 0.045 16,00  0.40 82 22 16 0.090 - 0.130 8,00  0.20 58 12 8 0.030 - 0.050 18,00  0.40 84 24 18 0.110 - 0.150 9,00  0.30 66 14 10 0.035 - 0.060 20,00  0.50 92 26 20 0.130 - 0.170 End mill VHM Universal Cat. no. PN/mm2 MN/mm2 KHB VHM Factory Teethstandard4 6535 HB 175491 < 1200 < 850 <300 coated Centre cut shank vc = m/min. 175491 110-280 80-140 110-200 UNI short Cutting data Design: - unequal division - short version - cutting points with protective chamfer - AlCrN coated Use: - universally applicable - for roughing and finishing - extremely high cutting performance - very high running smoothness (h10) 90° 175491 PRECITOOL-GP, short, with protective chamfer, sharp-edged, ALCRONA d1mm 175491 Protectivechamfermm l1 l2 d2mmmmmm fzmm/tooth d1mm 175491 Protectivechamfermm l1 l2 d2mmmmmm fzmm/tooth 2,00  0.02 54 4 6 0.005 - 0.023 9,00  0.09 66 14 10 0.035 - 0.060 2,50  0.02 54 4 6 0.005 - 0.023 10,00  0.10 66 14 10 0.040 - 0.070 3,00  0.03 54 6 6 0.007 - 0.028 11,00  0.11 73 16 12 0.050 - 0.080 4,00  0.04 54 8 6 0.010 - 0.035 12,00  0.12 73 16 12 0.060 - 0.090 5,00  0.05 54 9 6 0.015 - 0.035 14,00  0.14 75 18 14 0.070 - 0.110 6,00  0.06 54 10 6 0.025 - 0.040 16,00  0.15 82 22 16 0.090 - 0.130 7,00  0.07 58 12 8 0.030 - 0.045 18,00  0.15 84 24 18 0.110 - 0.150 8,00  0.08 58 12 8 0.030 - 0.050 20,00  0.15 92 26 20 0.130 - 0.170 www.precitool.de 17/253
