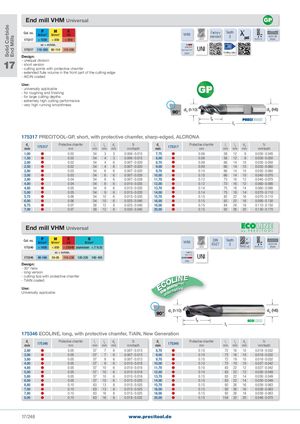

Solid Carbide End Mills End mill VHM Universal Cat. no. PN/mm2 MN/mm2 KHB VHM Factory Teethstandard3 6535 HB 175317 < 1200 < 850 < 650 coated Centre cut shank vc = m/min. 175317 110-280 80-110 110-200 UNI short Cutting data Design: 17 - unequal division- short version- cutting points with protective chamfer - extended flute volume in the front part of the cutting edge - AlCrN coated Use: - universally applicable - for roughing and finishing - for large cutting depths - extremely high cutting performance - very high running smoothness 90° (h10) 175317 PRECITOOL-GP, short, with protective chamfer, sharp-edged, ALCRONA d1mm 175317 Protective chamfer l1 l2 d2mmmmmmmm fzmm/tooth d1mm 175317 Protective chamfer l1 l2 d2mmmmmmmm fzmm/tooth 1,00  0.02 54  3 3 0.006 - 0.015   7,75  0.08 58 12  8 0.030 - 0.045 1,50  0.02 54  4 3 0.006 - 0.015   8,00  0.08 58 12  8 0.030 - 0.050 2,00  0.02 54  4 6 0.007 - 0.020   8,70  0.09 66 14 10 0.030 - 0.050 2,50  0.02 54  4 6 0.007 - 0.020   9,00  0.09 66 14 10 0.035 - 0.060 2,80  0.03 54  6 6 0.007 - 0.020   9,70  0.10 66 14 10 0.035 - 0.060 3,00  0.03 54  6 6 0.007 - 0.028 10,00  0.10 66 14 10 0.040 - 0.070 3,80  0.04 54  8 6 0.007 - 0.028 11,70  0.12 73 16 12 0.040 - 0.070 4,00  0.04 54  8 6 0.010 - 0.035 12,00  0.12 73 16 12 0.060 - 0.090 4,80  0.05 54  9 6 0.010 - 0.035 13,70  0.14 75 18 14 0.060 - 0.090 5,00  0.05 54  9 6 0.015 - 0.035 14,00  0.14 75 18 14 0.070 - 0.110 5,75  0.06 54 10 6 0.015 - 0.035 15,70  0.15 82 22 16 0.070 - 0.110 6,00  0.06 54 10 6 0.025 - 0.040 16,00  0.15 82 22 16 0.090 - 0.130 6,75  0.07 58 12 8 0.025 - 0.040 18,00  0.15 84 24 18 0.110 - 0.150 7,00  0.07 58 12 8 0.030 - 0.045 20,00  0.15 92 26 20 0.130 - 0.170 End mill VHM Universal Cat. no. PN/mm2 MN/mm2 KHB NN/mm2175346< 1400< 850> 250HBaluminium< 7 % Si VHM coated DIN Teeth65273 30° 6535 HATwistCentre cutshank vc = m/min. 175346 80-160 50-85 110-230 120-220 100-160 UNI long Design: - 30° helix - long version - cutting tips with protective chamfer- TiAlN coatedUse:Universally applicable ECOLINE thaelteecronnaotimveic (h10) 90° 175346 ECOLINE, long, with protective chamfer, TiAlN, New Generation d1mm 175346 Protective chamfer l1 l2 d2mmmmmmmm fzmm/tooth d1mm 175346 Protective chamfer l1 l2 d2mmmmmmmm fzmm/tooth 2,80  0.05 57  7 6 0.007 - 0.013   8,70  0.10  72 16 10 0.018 - 0.032 3,00  0.05 57  7 6 0.007 - 0.013   9,00  0.10  72 16 10 0.018 - 0.032 3,80  0.05 57  8 6 0.007 - 0.013   9,70  0.10  72 19 10 0.018 - 0.032 4,00  0.05 57  8 6 0.010 - 0.018 10,00  0.10  72 19 10 0.027 - 0.042 4,80  0.05 57 10 6 0.010 - 0.018 11,70  0.10  83 22 12 0.027 - 0.042 5,00  0.05 57 10 6 0.010 - 0.018 12,00  0.10  83 22 12 0.030 - 0.049 5,80  0.05 57 10 6 0.010 - 0.018 13,70  0.15  83 22 14 0.030 - 0.049 6,00  0.05 57 10 6 0.015 - 0.025 14,00  0.15  83 22 14 0.030 - 0.049 6,80  0.10 63 13 8 0.015 - 0.025 15,70  0.15  92 26 16 0.039 - 0.063 7,00  0.10 63 13 8 0.015 - 0.025 16,00  0.15  92 26 16 0.039 - 0.063 7,80  0.10 63 16 8 0.015 - 0.025 18,00  0.15  92 26 18 0.039 - 0.063 8,00  0.10 63 16 8 0.018 - 0.032 20,00  0.15 104 32 20 0.048 - 0.070 17/248 www.precitool.de
