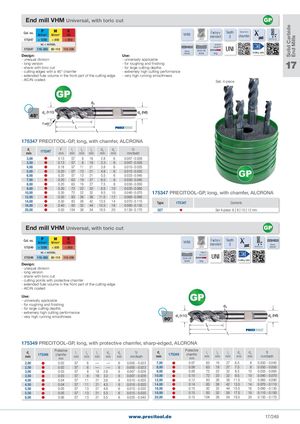

Solid Carbide End Mills End mill VHM Universal, with toric cut Cat. no. PN/mm2 MN/mm2 KHB VHM Factory Teeth Blade formstandard3chamfer 175347 < 1200 < 850 < 650 coated Centre cut vc = m/min. 175347 110-280 80-110 110-200 Shank 6535 HB UNIrelievedshanklong Cutting data Design: Use: - unequal division - universally applicable - long version - for roughing and finishing- shank with toric cut- for large cutting depths 17 - cutting edges with a 45° chamfer - extremely high cutting performance - extended flute volume in the front part of the cutting edge - very high running smoothness - AlCrN coated Set: 4-piece 3 (h10) 45° 4 175347 PRECITOOL-GP, long, with chamfer, ALCRONA d1mm 175347 F l1 l2 l4 d3 d2mmmmmmmmmmmmfzmm/tooth   3,00  0.13  57  8 18  2.8  6 0.007 - 0.028   3,50  0.13  57  8 18  3.3  6 0.007 - 0.028   4,00  0.18  57 11 21  3.8  6 0.010 - 0.035   5,00  0.20  57 13 21  4.8  6 0.015 - 0.035   6,00  0.20  57 13 21  5.5  6 0.025 - 0.040   7,00  0.20  63 19 27  6.5  8 0.030 - 0.045   8,00  0.20  63 19 27  7.5  8 0.030 - 0.050   9,00  0.30  72 22 32  8.5 10 0.035 - 0.060 10,00  0.30  72 22 32  9.5 10 0.040 - 0.070 175347 PRECITOOL-GP, long, with chamfer, ALCRONA 12,00  0.30  83 26 38 11.5 12 0.060 - 0.090 14,00  0.30  83 26 42 13.5 14 0.070 - 0.110 Type 175347 Contents 16,00  0.40  92 32 44 15.5 16 0.090 - 0.130 20,00  0.50 104 38 54 19.5 20 0.130 - 0.170 SET  Set 4-piece: 6 | 8 | 10 | 12 mm End mill VHM Universal, with toric cut Cat. no. PN/mm2 MN/mm2 KHB VHM Factory Teethstandard3 Shank 175349 < 1200 < 850 < 650 coated Centre cut relieved vc = m/min. 175349 110-280 80-110 110-200 6535 HB UNI shank long Cutting data Design: - unequal division - long version - shank with toric cut - cutting points with protective chamfer - extended flute volume in the front part of the cutting edge - AlCrN coated Use: - universally applicable - for roughing and finishing - for large cutting depths 3 - extremely high cutting performance - very high running smoothness (h10)90° 4 175349 PRECITOOL-GP, long, with protective chamfer, sharp-edged, ALCRONA d1mm 175349 Protectivechamfermml1 l2 l4mmmmmmd3mm d2mm fzmm/tooth d1mm 175349 Protectivechamfermm l l l124mmmmmmd 3mm d 2mm fzmm/tooth 2,00  0.02 57 6 — — 6 0.005 - 0.023 7,00  0.07 63 19 27 6.5 8 0.030 - 0.045 2,50  0.02 57 6 — — 6 0.005 - 0.023 8,00  0.08 63 19 27 7.5 8 0.030 - 0.050 3,00  0.03 57 8 18 2.8 6 0.007 - 0.028 9,00  0.09 72 22 32 8.5 10 0.035 - 0.060 3,50  0.03 57 8 18 3.3 6 0.007 - 0.028 10,00  0.10 72 22 32 9.5 10 0.040 - 0.070 4,00  0.04 57 11 21 3.8 6 0.010 - 0.035 12,00  0.12 83 26 38 11.5 12 0.060 - 0.090 4,50  0.04 57 11 21 4.3 6 0.010 - 0.035 14,00  0.14 83 26 42 13.5 14 0.070 - 0.110 5,00  0.05 57 13 21 4.8 6 0.015 - 0.035 16,00  0.15 92 32 44 15.5 16 0.090 - 0.130 5,50  0.05 57 13 21 5.3 6 0.015 - 0.035 18,00  0.15 92 32 50 17.5 18 0.110 - 0.150 6,00  0.06 57 13 21 5.5 6 0.025 - 0.040 20,00  0.15 104 38 54 19.5 20 0.130 - 0.170 www.precitool.de 17/249
