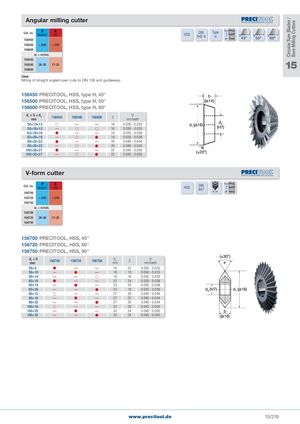

Общий каталог PRECITOOL - страница 224

Angular milling cutter

P	K	DIN	Type	Twist
N/mm2	HB	842 A	H

		45°	50°	60°
156450	0°

156500		< 850	< 240
156600
	vc = m/min.
156450				15
156500		26-30	17-25

156600 Use: Milling of straight angled open cuts to DIN 138 and guideways. 156450 PRECITOOL, HSS, type H, 45°

156500 PRECITOOL, HSS, type H, 50°

156600 PRECITOOL, HSS, type H, 60°

d × b × d fz

	1	2 156450	156500	156600	Z
	mm					mm/tooth
	50×13×13		—	—	16	0�030 - 0�033
	50×16×13	—			16	0�030 - 0�033
	63×18×16		—	—	18	0�035 - 0�039
	63×20×16	—			18	0�035 - 0�039
	80×22×22		—	—	20	0�040 - 0�044
	80×25×22	—			20	0�040 - 0�044
100×28×27			—	—	22	0�045 - 0�050
100×32×27		—			22	0�045 - 0�050

V-form cutter

	P	K	DIN	Twist
Cat. no.			HSS
	N/mm2	HB	847
156700				0°
156720	< 850	< 240
156750
	vc = m/min.
156700
156720	26-30	17-25

156750

156700 PRECITOOL, HSS, 45°

156720 PRECITOOL, HSS, 60°

156750 PRECITOOL, HSS, 90°

Ød1× b mm	156700	156720	156750	d2 mm	Z	fz mm/tooth
50×8		—	—	16	22	0�030 - 0�033
50×10	—		—	16	18	0�030 - 0�033
50×14	—	—		16	16	0�030 - 0�033
63×10		—	—	22	24	0�035 - 0�039
63×14	—		—	22	20	0�035 - 0�039
63×20	—	—		22	18	0�035 - 0�039
80×12		—	—	27	26	0�040 - 0�044
80×18	—		—	27	22	0�040 - 0�044
80×22	—	—		27	20	0�040 - 0�044
100×18		—	—	32	28	0�045 - 0�050
100×25	—		—	32	24	0�045 - 0�050
100×32	—	—		32	24	0�045 - 0�050
