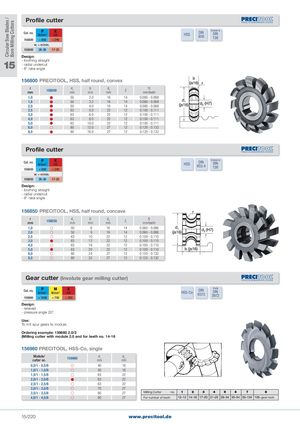

Circular Saw Blades / Bore Milling Cutters Profile cutter Cat. no. PN/mm2 KHB156800< 850< 240 HSS DIN Groove toDIN856138 vc = m/min. 156800 26-30 17-25 Design: 15 - toothing straight- radial undercut- 8° rake angle 156800 PRECITOOL, HSS, half round, convex rmm 156800 d1mm bmm d2mm Z fzmm/tooth 1,0  50  2.0 16 14 0.080 - 0.088 1,6  50  3.2 16 14 0.080 - 0.088 2,0  50  4.0 16 14 0.080 - 0.088 2,5  63  5.0 22 12 0.100 - 0.111 3,0  63  6.0 22 12 0.100 - 0.111 4,0  63  8.0 22 12 0.100 - 0.111 5,0  63 10.0 22 12 0.100 - 0.111 6,0  80 12.0 27 12 0.120 - 0.132 8,0  80 16.0 27 12 0.120 - 0.132 Profile cutter Cat. no. PN/mm2 KHB156850< 850< 240 HSS DIN Groove toDIN855 A138 vc = m/min. 156850 26-30 17-25 Design: - toothing straight - radial undercut - 8° rake angle 156850 PRECITOOL, HSS, half round, concave rmm 156850 d1mm bmm d2mm Z fzmm/tooth 1,0  50 6 16 14 0.080 - 0.088 2,0  50 9 16 14 0.080 - 0.088 2,5  63 10 22 12 0.100 - 0.110 3,0  63 12 22 12 0.100 - 0.110 4,0  63 16 22 12 0.100 - 0.110 5,0  63 20 22 12 0.100 - 0.110 6,0  80 24 27 12 0.120 - 0.132 8,0  80 32 27 12 0.120 - 0.132 Gear cutter (Involute gear milling cutter) Cat. no. PN/mm2 MN/mm2 KHB156960< 1200< 750< 250 HSS-Co DIN6513 ProfilDIN3972 Design: - relieved - pressure angle 20°. Use: To mill spur gears to module. Ordering example: 159660 2.0/2 (Milling cutter with module 2.0 and for teeth no. 14-16 156960 PRECITOOL, HSS-Co, single Module/cutter no. 156960 d1mm d2mm 0,5/1 - 0,5/8  40 16 1,0/1 - 1,0/8  50 16 1,5/1 - 1,5/8  63 22 2,0/1 - 2,0/8  63 22 2,5/1 - 2,5/8  63 22 3,0/1 - 3,0/8  70 27 3,5/1 - 3,5/8  80 27 Milling Cutter no. 4,0/1 - 4,0/8  80 27 For number of teeth gear-rack 15/220 www.precitool.de
