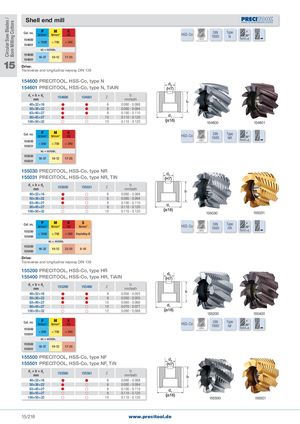

Общий каталог PRECITOOL - страница 223

Shell end mill

	P	M	K	DIN	Type
	N/mm2	N/mm2	HB	1880	30° N
					Twist
154600				coated
	< 1200	< 750	< 240
154601
	vc = m/min.
154600
	18-37	10-12	17-25

15 154601 Drive: Transverse and longitudinal keyway DIN 138 154600 PRECITOOL, HSS-Co, type N

154601 PRECITOOL, HSS-Co, type N, TiAIN

d × b × d fz

	1	2		154600		154601	Z
	mm							mm/tooth
	40×32×16						6	0�080 - 0�088
	50×36×22						8	0�085 - 0�094
	63×40×27						8	0�100 - 0�110
	80×45×27						10	0�110 - 0�120
100×50×32							10	0�110 - 0�120
		P	M		K			Type DIN
Cat. no.								HSS-Co
		N/mm2	N/mm2		HB			30° NR 1880
155030								Twist
								coated
		< 850	< 750		< 240
155031
		vc = m/min.
155030
		18-37	10-12		17-25
155031
155030 PRECITOOL, HSS-Co, type NR
155031 PRECITOOL, HSS-Co, type NR, TiN
d × b × d								fz
	1	2		155030		155031	Z
	mm							mm/tooth
	40×32×16						6	0�080 - 0�088
	50×36×22						6	0�085 - 0�094
	63×40×27						8	0�100 - 0�110
	80×45×27						8	0�110 - 0�120
100×50×32							10	0�110 - 0�120
		P	M		K	S		Type DIN
Cat. no.								HSS-Co
		N/mm2	N/mm2		HB	N/mm2		30° HR 1880
155200								Twist
								coated
		< 1200	< 750		< 240 Hastelloy B
155400
			vc = m/min.
155200
		16-32	10-12		22-25	8-10

155400 Drive: Transverse and longitudinal keyway DIN 138 155200 PRECITOOL, HSS-Co, type HR

155400 PRECITOOL, HSS-Co, type HR, TiAIN

d × b × d fz

	1	2	155200	155400	Z
	mm					mm/tooth
	40×32×16				8	0�050 - 0�055
	50×36×22				8	0�050 - 0�055
	63×40×27				10	0�060 - 0�066
	80×45×27				10	0�070 - 0�077
100×50×32					12	0�080 - 0�088
		P	M K			Type DIN
Cat. no.						HSS-Co
		N/mm2	N/mm2 HB			30° NF 1880
155500						Twist
						coated
		< 850	< 750 < 240
155501
		vc = m/min.
155500
		18-37	10-12 17-25
155501
155500 PRECITOOL, HSS-Co, type NF
155501 PRECITOOL, HSS-Co, type NF, TiN
d × b × d						fz
	1	2	155500	155501	Z
	mm					mm/tooth
	40×32×16				6	0�080 - 0�088
	50×36×22				6	0�085 - 0�094
	63×40×27				8	0�100 - 0�110
	80×45×27				8	0�110 - 0�120
100×50×32					10	0�110 - 0�120
