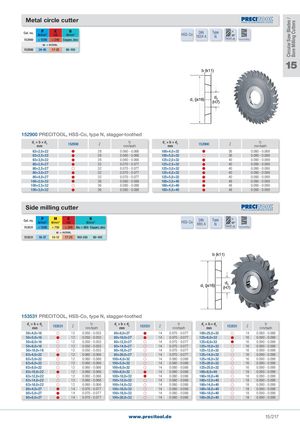

Metal circle cutter

		P	K	N	DIN	Type
	N/mm2		HB	N/mm2	1834 A	10° N
						Twist
152900	< 1200		< 240 Copper, zinc			Cross toothing
		vc = m/min.
152900		24-45	17-25	60-100

15

152900 PRECITOOL, HSS-Co, type N, stagger-toothed

d1× b × d2 mm	152900	Z	fz mm/tooth	d1× b × d2 mm	152900	Z	fz mm/tooth
63×2,0×22		28	0�060 - 0�066	100×4,0×32		36	0�080 - 0�088
63×2,5×22		28	0�060 - 0�066	100×5,0×32		36	0�080 - 0�088
63×3,0×22		28	0�060 - 0�066	125×2,0×32		40	0�090 - 0�099
80×2,0×27		32	0�070 - 0�077	125×2,5×32		40	0�090 - 0�099
80×2,5×27		32	0�070 - 0�077	125×3,0×32		40	0�090 - 0�099
80×3,0×27		32	0�070 - 0�077	125×4,0×32		40	0�090 - 0�099
80×4,0×27		32	0�070 - 0�077	125×5,0×32		40	0�090 - 0�099
100×2,0×32		36	0�080 - 0�088	160×3,0×40		48	0�090 - 0�099
100×2,5×32		36	0�080 - 0�088	160×4,0×40		48	0�090 - 0�099
100×3,0×32		36	0�080 - 0�088	160×5,0×40		48	0�090 - 0�099

Side milling cutter

	P		M	K	N	DIN	Type
Cat. no.						HSS-Co
	N/mm2	N/mm2		HB	N/mm2	885 A	10° N
153531	< 1200	< 750		< 240 Alu < 600 Copper, zinc			Twist
							Cross toothing
			vc = m/min.
153531	18-37	10-12		17-25	160-250 60-100

153531 PRECITOOL, HSS-Co, type N, stagger-toothed

d1× b × d2 mm	153531	Z	fz mm/tooth	d1× b × d2 mm	153531	Z	fz mm/tooth	d1× b × d2 mm	153531	Z	fz mm/tooth
50×4,0×16		12	0�050 - 0�055	80×8,0×27		14	0�070 - 0�077	100×25,0×32		14	0�080 - 0�088
50×5,0×16		12	0�050 - 0�055	80×10,0×27		14	0�070 - 0�077	125×6,0×32		16	0�090 - 0�099
50×6,0×16		12	0�050 - 0�055	80×12,0×27		14	0�070 - 0�077	125×8,0×32		16	0�090 - 0�099
50×8,0×16		12	0�050 - 0�055	80×14,0×27		14	0�070 - 0�077	125×10,0×32		16	0�090 - 0�099
50×10,0×16		12	0�050 - 0�055	80×16,0×27		14	0�070 - 0�077	125×12,0×32		16	0�090 - 0�099
63×4,0×22		12	0�060 - 0�066	80×20,0×27		14	0�070 - 0�077	125×14,0×32		16	0�090 - 0�099
63×5,0×22		12	0�060 - 0�066	100×4,0×32		14	0�080 - 0�088	125×16,0×32		16	0�090 - 0�099
63×6,0×22		12	0�060 - 0�066	100×5,0×32		14	0�080 - 0�088	125×20,0×32		16	0�090 - 0�099
63×8,0×22		12	0�060 - 0�066	100×6,0×32		14	0�080 - 0�088	125×25,0×32		16	0�090 - 0�099
63×10,0×22		12	0�060 - 0�066	100×8,0×32		14	0�080 - 0�088	160×8,0×40		18	0�090 - 0�099
63×12,0×22		12	0�060 - 0�066	100×10,0×32		14	0�080 - 0�088	160×10,0×40		18	0�090 - 0�099
63×14,0×22		12	0�060 - 0�066	100×12,0×32		14	0�080 - 0�088	160×12,0×40		18	0�090 - 0�099
63×16,0×22		12	0�060 - 0�066	100×14,0×32		14	0�080 - 0�088	160×14,0×40		18	0�090 - 0�099
80×4,0×27		14	0�070 - 0�077	100×16,0×32		14	0�080 - 0�088	160×16,0×40		18	0�090 - 0�099
80×5,0×27		14	0�070 - 0�077	100×18,0×32		14	0�080 - 0�088	160×18,0×40		18	0�090 - 0�099
80×6,0×27		14	0�070 - 0�077	100×20,0×32		14	0�080 - 0�088	160×20,0×40		18	0�090 - 0�099
