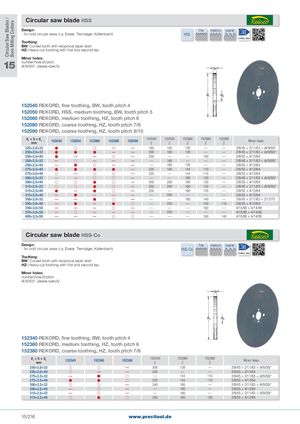

Circular Saw Blades / Bore Milling Cutters Circular saw blade HSS Design: fine medium coarse - for cold circular saws (i.a. Eisele, Trennjäger, Kaltenbach) HSS Cutting data Toothing: BW: Curved tooth with reciprocal taper start HZ: Heavy-cut toothing with first and second tap Minor holes: 15 number/hole Ø/pitch(4/9/50)*: please specify 152040 REKORD, fine toothing, BW, tooth pitch 4 152050 REKORD, HSS, medium toothing, BW, tooth pitch 5 152060 REKORD, medium toothing, HZ, tooth pitch 6 152080 REKORD, coarse toothing, HZ, tooth pitch 7/8 152090 REKORD, coarse toothing, HZ, tooth pitch 9/10 d1 × b × d2mm 152040 152050 152060 152080 152090 152040Z 152050Z 152060Z 152080Z 152090Z Minor holes 225×2,0×32    — — 180 150 120 — — 2/8/45 + 2/11/63 + (4/9/50)* 250×2,0×32    — — 200 160 128 — — 2/8/45 + 2/11/63 + (4/9/50)* 250×2,0×40  — —  — 200 — — 100 — 2/8/55 + 4/12/64 250×2,5×32 —  — — — — 160 — — — 2/8/45 + 2/11/63 + (4/9/50)* 250×2,5×40 —   — — — 160 128 — — 2/8/55 + 4/12/64 275×2,5×40     — 220 180 144 110 — 2/8/55 + 4/12/64 275×3,0×40  —   — 220 — 144 110 — 2/8/55 + 4/12/64 300×2,5×32 — —   — — — 160 120 — 2/8/45 + 2/11/63 + (4/9/50)* 300×2,5×40     — 240 200 160 120 — 2/8/55 + 4/12/64 315×2,5×32     — 250 200 160 120 — 2/8/45 + 2/11/63 + (4/9/50)* 315×2,5×40  —   — 250 — 160 120 — 2/8/55 + 4/12/64 315×3,0×40 —  — — — — 200 — — — 2/8/55 + 4/12/64 350×3,0×32 — —   — — — 180 140 — 2/8/45 + 2/11/63 + 2/12/75 350×3,0×40 —  —   — 220 — 140 110 2/8/55 + 4/12/64 350×3,0×50 — — —  — — — — 160 — 4/15/80 + 4/14/85 370×3,0×50 —  — — — — 220 — — — 4/15/80 + 4/14/85 400×3,5×50 — — —   — — — 180 140 4/15/80 + 4/14/85 Circular saw blade HSS-Co Design: fine medium coarse - for cold circular saws (i.a. Eisele, Trennjäger, Kaltenbach) HSS-Co Cutting data Toothing: BW: Curved tooth with reciprocal taper start HZ: Heavy-cut toothing with first and second tap Minor holes: number/hole Ø/pitch (4/9/50)*: please specify 152340 REKORD, fine toothing, BW, tooth pitch 4 152360 REKORD, medium toothing, HZ, tooth pitch 6 152380 REKORD, coarse toothing, HZ, tooth pitch 7/8 d1 × b × d2mm 152340 152360 152380 152340Z 152360 152380ZZ Minor holes 250×2,0×32   — 200 128 — 2/8/45 + 2/11/63 + (4/9/50)* 250×2,0×40  — — 200 — — 2/8/55 + 4/12/64 275×2,5×32 —   — 144 110 2/8/45 + 2/11/63 + (4/9/50)* 275×2,5×40    220 144 110 2/8/55 + 4/12/64 300×2,5×32   — 240 160 — 2/8/45 + 2/11/63 + (4/9/50)* 300×2,5×40 —  — — 160 — 2/8/55 + 4/12/64 315×2,5×32 —  — — 160 — 2/8/45 + 2/11/63 + (4/9/50)* 315×2,5×40    250 160 120 2/8/55 + 4/12/64 15/216 www.precitool.de
