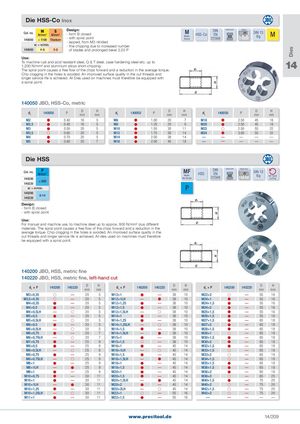

Общий каталог PRECITOOL - страница 214
Навигация
Die HSS-Co Inox
| Cat. no. 140050 | M N/mm2 < 1100 vc = m/min | S N/mm2 Titanium . | Design: - form B closed - with spiral point - lapped, from M3 nitrided - fine chipping due to increased number | Metric thread M | HSS-Co | DIN EN 22568 | Spiral point | Metric 60° | DIN 13 6g | M |
| 140050 | 4-6 | 5-8 | of blades and prolonged bevel 2.25 P |
Use: 14 To machine rust and acid resistant steel, Q & T steel, case hardening steel etc. up to 1,200 N/mm² and aluminium alloys short-chipping. The spiral point causes a free flow of the chips forward and a reduction in the average torque. Chip clogging in the holes is avoided. An improved surface quality in the cut threads and longer service life is achieved. All Dies used on machines must therefore be equipped with a spiral point.
140050 JBO, HSS-Co, metric
| d1 | 140050 | P | D mm | H mm | d1 | 140050 | P | D mm | H mm | d1 | 140050 | P | D mm | H mm |
| M2 | | 0�40 | 16 | 5 | M6 | | 1�00 | 20 | 7 | M18 | | 2�50 | 45 | 18 |
| M2,5 | | 0�45 | 16 | 5 | M8 | | 1�25 | 25 | 9 | M20 | | 2�50 | 45 | 18 |
| M3 | | 0�50 | 20 | 5 | M10 | | 1�50 | 30 | 11 | M22 | | 2�50 | 55 | 22 |
| M3,5 | | 0�60 | 20 | 5 | M12 | | 1�75 | 38 | 14 | M24 | | 3�00 | 55 | 22 |
| M4 | | 0�70 | 20 | 5 | M14 | | 2�00 | 38 | 14 | — | — | — | — | — |
| M5 | | 0�80 | 20 | 7 | M16 | | 2�00 | 45 | 18 | — | — | — | — | — |
Die HSS
| P | MF | DIN | Spiral point | Metric fine | DIN 13 | |||
| Cat. no. | HSS | EN | 60° | |||||
| N/mm2 | 6g | |||||||
| Metric | 22568 | left hand | ||||||
| 140200 | fine thread | cutting |
< 850 140220 P vc = m/min. 140200
8-14 140220
Design: - form B closed - with spiral point
Use: For manual and machine use, to machine steel up to approx. 800 N/mm² plus different materials. The spiral point causes a free flow of the chips forward and a reduction in the average torque. Chip clogging in the holes is avoided. An improved surface quality in the cut threads and longer service life is achieved. All dies used on machines must therefore be equipped with a spiral point.
140200 JBO, HSS, metric fine
140220 JBO, HSS, metric fine, left-hand cut
| d1× P | 140200 | 140220 | D mm | H mm | d1× P | 140200 | 140220 | D mm | H mm | d1× P | 140200 | 140220 | D mm | H mm |
| M3×0,35 | | — | 20 | 5 | M12×1 | | — | 38 | 10 | M22×2 | | — | 55 | 16 |
| M3,5×0,35 | | — | 20 | 5 | M12×1LH | — | | 38 | 10 | M24×1 | | — | 55 | 16 |
| M4×0,35 | | — | 20 | 5 | M12×1,25 | | — | 38 | 10 | M24×1,5 | | — | 55 | 16 |
| M4×0,5 | | — | 20 | 5 | M12×1,5 | | — | 38 | 10 | M24×2 | | — | 55 | 16 |
| M4×0,5LH | — | | 20 | 5 | M12×1,5LH | — | | 38 | 10 | M25×1,5 | | — | 55 | 16 |
| M5×0,5 | | — | 20 | 5 | M14×1 | | — | 38 | 10 | M26×1,5 | | — | 55 | 16 |
| M5×0,5LH | — | | 20 | 5 | M14×1,25 | | — | 38 | 10 | M27×1,5 | | — | 65 | 18 |
| M6×0,5 | | — | 20 | 5 | M14×1,25LH | — | | 38 | 10 | M27×2 | | — | 65 | 18 |
| M6×0,5LH | — | | 20 | 5 | M14×1,5 | | — | 38 | 10 | M28×1,5 | | — | 65 | 18 |
| M6×0,75 | | — | 20 | 7 | M14×1,5LH | — | | 38 | 10 | M30×1 | | — | 65 | 18 |
| M6×0,75LH | — | | 20 | 7 | M15×1 | | — | 38 | 10 | M30×1,5 | | — | 65 | 18 |
| M7×0,75 | | — | 25 | 9 | M15×1,5 | | — | 38 | 10 | M30×2 | | — | 65 | 18 |
| M8×0,5 | | — | 25 | 9 | M16×1 | | — | 45 | 14 | M32×1,5 | | — | 65 | 18 |
| M8×0,5LH | — | | 25 | 9 | M16×1LH | — | | 45 | 14 | M33×1,5 | | — | 65 | 18 |
| M8×0,75 | | — | 25 | 9 | M16×1,5 | | — | 45 | 14 | M33×2 | | — | 65 | 18 |
| M8×0,75LH | — | | 25 | 9 | M16×1,5LH | — | | 45 | 14 | M34×1,5 | | — | 65 | 18 |
| M8×1 | | — | 25 | 9 | M18×1 | | — | 45 | 14 | M35×1,5 | | — | 65 | 18 |
| M8×1LH | — | | 25 | 9 | M18×1,5 | | — | 45 | 14 | M36×1,5 | | — | 65 | 18 |
| M9×1 | | — | 25 | 9 | M20×1 | | — | 45 | 14 | M36×2 | | — | 65 | 18 |
| M10×0,75 | | — | 30 | 11 | M20×1,5 | | — | 45 | 14 | M36×3 | | — | 65 | 25 |
| M10×1 | | — | 30 | 11 | M20×1,5LH | — | | 45 | 14 | M40×1,5 | | — | 75 | 20 |
| M10×1LH | — | | 30 | 11 | M20×2 | | — | 45 | 14 | M40×2 | | — | 75 | 20 |
| M10×1,25 | | — | 30 | 11 | M20×2LH | — | | 45 | 14 | M42×1,5 | | — | 75 | 20 |
| M10×1,25LH | — | | 30 | 11 | M22×1 | | — | 55 | 16 | M42×2 | | — | 75 | 20 |
| M11×1 | | — | 30 | 11 | M22×1,5 | | — | 55 | 16 | — | — | — | — | — |
