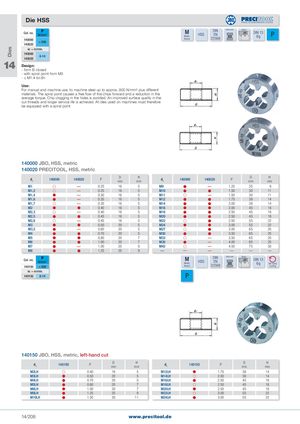

Общий каталог PRECITOOL - страница 213
Навигация
| P | M | DIN | Spiral point | Metric | DIN 13 | P | ||
| Cat. no. | HSS | EN | 60° |
N/mm2 6g Metric 22568 140000 thread < 850
140020 vc = m/min. 140000 8-14 14 140020
Design: - form B closed - with spiral point from M3 - ≤ M1.4 tol.6h
Use: For manual and machine use, to machine steel up to approx. 800 N/mm² plus different materials. The spiral point causes a free flow of the chips forward and a reduction in the average torque. Chip clogging in the holes is avoided. An improved surface quality in the cut threads and longer service life is achieved. All dies used on machines must therefore be equipped with a spiral point
140000 JBO, HSS, metric
140020 PRECITOOL, HSS, metric
| d1 | 140000 | 140020 | P | D mm | H mm | d1 | 140000 | 140020 | P | D mm | H mm | ||
| M1 | | — | 0�25 | 16 | 5 | M9 | | — | 1�25 | 25 | 9 | ||
| M1,2 | | — | 0�25 | 16 | 5 | M10 | | | 1�50 | 30 | 11 | ||
| M1,4 | | — | 0�30 | 16 | 5 | M11 | | — | 1�50 | 30 | 11 | ||
| M1,6 | | — | 0�35 | 16 | 5 | M12 | | | 1�75 | 38 | 14 | ||
| M1,7 | | — | 0�35 | 16 | 5 | M14 | | | 2�00 | 38 | 14 | ||
| M2 | | | 0�40 | 16 | 5 | M16 | | | 2�00 | 45 | 18 | ||
| M2,3 | | — | 0�40 | 16 | 5 | M18 | | | 2�50 | 45 | 18 | ||
| M2,5 | | | 0�45 | 16 | 5 | M20 | | | 2�50 | 45 | 18 | ||
| M2,6 | | — | 0�45 | 16 | 5 | M22 | | | 2�50 | 55 | 22 | ||
| M3 | | | 0�50 | 20 | 5 | M24 | | | 3�00 | 55 | 22 | ||
| M3,5 | | — | 0�60 | 20 | 5 | M27 | | | 3�00 | 65 | 25 | ||
| M4 | | | 0�70 | 20 | 5 | M30 | | | 3�50 | 65 | 25 | ||
| M5 | | | 0�80 | 20 | 7 | M33 | | — | 3�50 | 65 | 25 | ||
| M6 | | | 1�00 | 20 | 7 | M36 | | — | 4�00 | 65 | 25 | ||
| M7 | | — | 1�00 | 25 | 9 | M42 | | — | 4�50 | 75 | 30 | ||
| M8 | | | 1�25 | 25 | 9 | — | — | — | — | — | — | ||
| Cat. no. 140150 | P N/mm2 < 850 | Metric thread M | HSS DIN EN 22568 | Spiral point | Metric 60° | DIN 13 6g | left hand cutting | ||||||
| vc = m/ | min. | ||||||||||||
| 140150 | 8-14 | P |
140150 JBO, HSS, metric, left-hand cut
| d1 | 140150 | P | D mm | H mm | d1 | 140150 | P | D mm | H mm |
| M2LH | | 0�40 | 16 | 5 | M12LH | | 1�75 | 38 | 14 |
| M3LH | | 0�50 | 20 | 5 | M14LH | | 2�00 | 38 | 14 |
| M4LH | | 0�70 | 20 | 5 | M16LH | | 2�50 | 45 | 18 |
| M5LH | | 0�80 | 20 | 7 | M18LH | | 2�50 | 45 | 18 |
| M6LH | | 1�00 | 20 | 7 | M20LH | | 2�50 | 45 | 18 |
| M8LH | | 1�25 | 25 | 9 | M22LH | | 3�00 | 55 | 22 |
| M10LH | | 1�50 | 30 | 11 | M24LH | | 3�00 | 55 | 22 |
