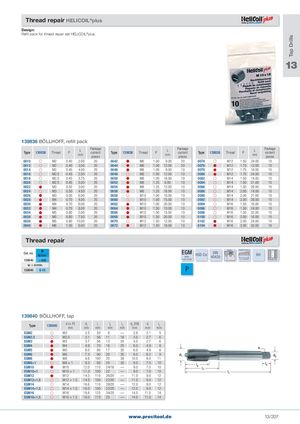

Общий каталог PRECITOOL - страница 212

Thread repair HELICOIL®plus

Refill pack for thread repair set HELICOIL®plus.

13

139836 BÖLLHOFF, refill pack

Package Package Package

L L L

Type 139836 Thread P content Type 139836 Thread P content Type 139836 Thread P content

mm mm mm

pieces pieces pieces

0010		M2	0�40	2�00	20	0042		M6	1�00	9�00	20	0074		M12	1�50	24�00	10
0012		M2	0�40	3�00	20	0044		M6	1�00	12�00	20	0076		M12	1�75	12�00	10
0014		M2	0�40	4�00	20	0046		M8	1�00	8�00	10	0078		M12	1�75	18�00	10
0016		M2�5	0�45	2�50	20	0048		M8	1�00	12�00	10	0080		M12	1�75	24�00	10
0018		M2�5	0�45	3�75	20	0050		M8	1�00	16�00	10	0082		M14	1�50	14�00	10
0020		M2�5	0�45	5�00	20	0052		M8	1�25	8�00	10	0084		M14	1�50	21�00	10
0022		M3	0�50	3�00	20	0054		M8	1�25	12�00	10	0086		M14	1�50	28�00	10
0024		M3	0�50	4�50	20	0056		M8	1�25	16�00	10	0088		M14	2�00	14�00	10
0026		M3	0�50	6�00	20	0058		M10	1�00	10�00	10	0090		M14	2�00	21�00	10
0028		M4	0�70	4�00	20	0060		M10	1�00	15�00	10	0092		M14	2�00	28�00	10
0030		M4	0�70	6�00	20	0062		M10	1�00	20�00	10	0094		M16	1�50	16�00	10
0032		M4	0�70	8�00	20	0064		M10	1�50	10�00	10	0096		M16	1�50	24�00	10
0034		M5	0�80	5�00	20	0066		M10	1�50	15�00	10	0098		M16	1�50	32�00	10
0036		M5	0�80	7�50	20	0068		M10	1�50	20�00	10	0100		M16	2�00	16�00	10
0038		M5	0�80	10�00	20	0070		M12	1�50	12�00	10	0102		M16	2�00	24�00	10
0040		M6	1�00	6�00	20	0072		M12	1�50	18�00	10	0104		M16	2�00	32�00	10
Thread repair
	P										EGM		DIN	Metric	Chamfer form B
Cat. no.												HSS-Co		60°			6H
	N/mm2												40435
											Metric				L
139840	< 850										insert thread				3,5-5 threads		Through hole

vc = m/min. P 139840 6-15

139840 BÖLLHOFF, tap

Type	139840	d (× P) mm	d1 mm	l1 mm	l2 mm	l4 mm	d2(h9) mm	a mm	l3 mm
EGM2		M2	2�5	50	8	—	2�8	2�1	5
EGM2,5		M2�5	3�1	56	11	18	3�5	2�7	6
EGM3		M3	3�7	56	13	20	4�0	2�7	6
EGM4		M4	4�9	70	16	25	6�0	4�9	8
EGM5		M5	6�0	80	17	30	6�0	4�9	8
EGM6		M6	7�3	90	20	35	8�0	6�2	9
EGM8		M8	9�6	100	20	39	10�0	8�0	11
EGM8×1		M8 × 1	9�3	90	20	35	9�0	7�0	10
EGM10		M10	12�0	110	24/16	—	9�0	7�0	10
EGM10×1		M10 × 1	11�3	100	22	—	9�0	7�0	10
EGM12		M12	14�3	110	26/20	—	11�0	9�0	12
EGM12×1,5		M12 × 1�5	14�0	100	22/20	—	11�0	9�0	12
EGM14		M14	16�6	110	28/20	—	12�0	9�0	12
EGM14×1,5		M14 × 1�5	16�0	100	22/20	—	12�0	9�0	12
EGM16		M16	18�6	125	34/25	—	14�0	11�0	14
EGM16×1,5		M16 × 1�5	18�0	110	25	—	14�0	11�0	14
