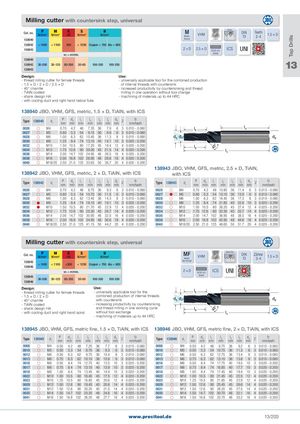

Общий каталог PRECITOOL - страница 208

Общий каталог PRECITOOL - страница 208

Milling cutter with countersink step, universal

Milling cutter with countersink step, universal

Milling cutter with countersink step, universal

Milling cutter with countersink step, universal

Milling cutter with countersink step, universal

Milling cutter with countersink step, universal

Отправьте заявку

Навигация

Навигация

На подбор необходимой оснастки и оборудования

P M K S N M Metric DIN Teeth

Cat. no. VHM 60° 1.5 × D

N/mm2	N/mm2	HB	N/mm2	N/mm2		13	2-4
					Metric

138940 thread coated

138942 < 1400 < 1100 300 < 1250 Copper < 700 Alu < 600 UNI

138942	100-350 100-350 30-80 80-200 30-120 30-200
138943
Design:	Use:
- thread milling cutter for female threads	- universally applicable tool for the combined production
- 1.5 × D / 2 × D / 2.5 × D	of internal threads with countersink
- 45° chamfer	- increased productivity by countersinking and thread
- TiAIN coated	milling in one operation without tool change
- shank design HA	- machining of materials up to 44 HRC

- with cooling duct and right hand helical flute 138940 JBO, VHM, GFS, metric, 1.5 × D, TiAlN, with ICS

Type	138940	d1	P mm	d5 mm	l1 mm	l2 mm	l3 mm	l5 mm	d2 mm	Z	fz mm/tooth
0026		M4	0�70	4�2	48	7�35	36	7�9	6	3	0�010 - 0�080
0027		M5	0�80	5�3	54	9�15	36	9�9	6	3	0�010 - 0�080
0028		M6	1�00	6�3	62	10�45	36	11�3	8	3	0�010 - 0�080
0030		M8	1�25	8�4	74	13�10	40	14�1	10	3	0�020 - 0�200
0032		M10	1�50	10�5	80	17�20	45	18�4	12	4	0�020 - 0�200
0034		M12	1�75	12�6	90	20�05	45	21�5	14	4	0�020 - 0�200
0036		M14	2�00	14�7	102	24�95	48	26�5	16	4	0�020 - 0�200
0038		M16	2�00	16�8	102	26�95	48	28�6	18	4	0�020 - 0�200
0040		M18/20	2�50	21�0	125	33�65	50	36�7	20	4	0�020 - 0�200

138943 JBO, VHM, GFS, metric, 2.5 × D, TiAlN,

1389 Type	42 JB 138942	O, VH d1	M, G P mm	FS, d5 mm	met l1 mm	ric, 2 l2 mm	× l3 mm	D, Ti l5 mm	AlN, d2 mm	w Z	ith I f mm/	CS z tooth
0026		M4	0�70	4�2	48	8�75	36	9�3	6	3	0�010	- 0�080
0027		M5	0�80	5�3	54	10�75	36	11�5	6	3	0�010	- 0�080
0028		M6	1�00	6�3	62	13�45	36	14�3	8	3	0�010	- 0�080
0030		M8	1�25	8�4	74	18�10	40	19�1	10	3	0�020	- 0�200
0032		M10	1�50	10�5	80	21�70	45	22�9	12	4	0�020	- 0�200
0034		M12	1�75	12�6	90	25�30	45	26�7	14	4	0�020	- 0�200
0036		M14	2�00	14�7	102	30�95	48	32�5	16	4	0�020	- 0�200
0038		M16	2�00	16�8	102	34�95	48	36�6	18	4	0�020	- 0�200
0040		M18/20	2�50	21�0	125	41�15	50	44�2	20	4	0�020	- 0�200

Type	138943	d1	P mm	d5 mm	l1 mm	l2 mm	l3 mm	l5 mm	d2 mm	Z	fz mm/tooth
0026		M4	0�70	4�2	48	10�85	36	11�4	6	3	0�010 - 0�080
0027		M5	0�80	5�3	54	13�15	36	13�9	6	3	0�010 - 0�080
0028		M6	1�00	6�3	62	16�45	36	17�3	8	3	0�010 - 0�080
0030		M8	1�25	8�4	74	21�85	40	22�8	10	3	0�020 - 0�200
0032		M10	1�50	10�5	80	26�20	45	27�4	12	4	0�020 - 0�200
0034		M12	1�75	12�6	90	32�30	45	33�7	14	4	0�020 - 0�200
0036		M14	2�00	14�7	102	36�95	48	38�5	16	4	0�020 - 0�200
0038		M16	2�00	16�8	102	42�95	48	44�6	18	4	0�020 - 0�200
0040		M18/20	2�50	21�0	125	48�65	50	51�7	20	4	0�020 - 0�200

P M K S N MF Metric fine DIN Zähne

Cat. no. VHM 60° 1.5 × D

N/mm2	N/mm2	HB	N/mm2	N/mm2		13	3-4
					Metric

138945 fine thread coated

	< 1100 < 1400 <300	< 1250 Copper < 700 Alu < 600
138946		UNI
		ICS 2 × D
	vc = m/min.	6535 HA
138945		shank
	30-120 30-200 80-200	100-350 30-80 100-350
138946
Design:		Use:
- thread milling cutter for female threads		- universally applicable tool for the
- 1.5 × D / 2 × D		combined production of internal threads
- 45° chamfer		with countersink
- TiAIN coated		- increasing productivity by countersinking
- shank design HA		and thread milling in one working cycle
- with cooling duct and right-hand spiral		without tool exchange

- machining of materials up to 44 HRC 138945 JBO, VHM, GFS, metric fine, 1.5 × D, TiAlN, with ICS 138946 JBO, VHM, GFS, metric fine, 2 × D, TiAlN, with ICS

Type	138945	d1	P mm	d5 mm	l1 mm	l2 mm	l3 mm	l5 mm	d2 mm	Z	fz mm/tooth	Type	138946	d1	P mm	d5 mm	l1 mm	l2 mm	l3 mm	l5 mm	d2 m	m	Z	fz mm/tooth
0008		M4	0�50	4�2	48	7�25	36	7�7	6	3	0�010 - 0�080	0008		M4	0�50	4�2	48	8�75	36	9�2		6	3	0�010 - 0�080
0010		M5	0�50	5�3	54	8�75	36	9�3	6	3	0�010 - 0�080	0010		M5	0�50	5�3	54	10�75	36	11�3		6	3	0�010 - 0�080
0012		M6	0�50	6�3	62	9�75	36	10�4	8	3	0�010 - 0�080	0012		M6	0�50	6�3	62	12�75	36	13�4		8	3	0�010 - 0�080
0013		M6	0�75	6�3	62	10�10	36	10�8	8	3	0�010 - 0�080	0013		M6	0�75	6�3	62	13�10	36	13�8		8	3	0�010 - 0�080
0016		M8	0�50	8�4	74	12�75	40	13�5	10	3	0�020 - 0�200	0016		M8	0�50	8�4	74	17�75	40	18�5	1	0	3	0�020 - 0�200
0017		M8	0�75	8�4	74	13�10	40	13�9	10	3	0�020 - 0�200	0017		M8	0�75	8�4	74	16�85	40	17�7	1	0	3	0�020 - 0�200
0018		M8	1�00	8�4	74	13�45	40	14�4	10	3	0�020 - 0�200	0018		M8	1�00	8�4	74	17�45	40	18�4	1	0	3	0�020 - 0�200
0022		M10	1�00	10�5	80	16�45	45	17�5	12	4	0�020 - 0�200	0022		M10	1�00	10�5	80	21�45	45	22�5	1	2	4	0�020 - 0�200
0023		M10	1�25	10�5	80	16�85	45	20�6	12	4	0�020 - 0�200	0023		M10	1�25	10�5	80	21�85	45	22�9	1	2	4	0�020 - 0�200
0029		M12	1�00	12�6	90	19�45	45	20�6	14	4	0�020 - 0�200	0029		M12	1�00	12�6	90	25�45	45	26�6	1	4	4	0�020 - 0�200
0031		M12	1�50	12�6	90	20�20	45	21�5	14	4	0�020 - 0�200	0031		M12	1�50	12�6	90	26�20	45	27�5	1	4	4	0�020 - 0�200
0035		M14	1�50	14�7	102	23�20	48	24�6	16	4	0�020 - 0�200	0035		M14	1�50	14�7	102	30�70	48	32�1	1	6	4	0�020 - 0�200
0041		M16	1�50	16�8	102	26�20	48	27�7	18	4	0�020 - 0�200	0041		M16	1�50	16�8	102	33�70	48	35�2	1	8	4	0�020 - 0�200

vc = m/min.
