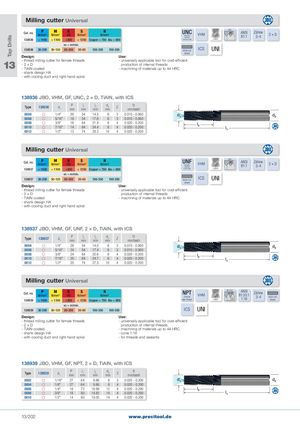

Общий каталог PRECITOOL - страница 207
Навигация
| P | M | K | S | N | UNC | UNC ANSI | Zähne | ||
| N/mm2 | N/mm2 | HB | N/mm2 | N/mm2 | B1.1 | 3-4 | |||
| american | |||||||||
| UNIFIED | |||||||||
| 138936 | < 1400 | < 1100 | <300 | < 1250 Copper < 700 Alu < 600 | coarse thread | coated | |||
| vc = m/min. | UNI | ||||||||
| ICS | |||||||||
| 138936 | 30-200 | 30-120 | 80-200 | 30-80 | 100-350 | 100-350 6535 HA | |||
| shank | |||||||||
| Design: | Use: |
13 - thread milling cutter for female threads - universally applicable tool for cost-efficient
- 2 × D production of internal threads - TiAIN coated - machining of materials up to 44 HRC - shank design HA - with cooling duct and right-hand spiral
138936 JBO, VHM, GF, UNC, 2 × D, TiAlN, with ICS
| Type | 138936 | P | l | l | d | fz | |||
| d | 1 | 2 | 2 | Z | |||||
| 1 mm | mm | mm | mm | mm/tooth | |||||
| 0004 | | 1/4" | 20 | 54 | 14�5 | 6 | 3 | 0�010 - 0�060 | |
| 0006 | | 5/16" | 18 | 54 | 17�6 | 6 | 3 | 0�010 - 0�060 | |
| 0008 | | 3/8" | 16 | 64 | 21�4 | 8 | 4 | 0�020 - 0�200 | |
| 0010 | | 7/16" | 14 | 64 | 24�4 | 8 | 4 | 0�020 - 0�200 | |
| 0012 | | 1/2" | 13 | 74 | 28�3 | 10 | 4 | 0�020 - 0�200 | |
| Milling cutter Universal | |||||||||
| P | M | K | S | N | Zähne ANSI UNF UNF | ||||
| Cat. no. | 2 × D 60° VHM | ||||||||
| N/mm2 | N/mm2 | HB | N/mm2 | N/mm2 | 3-4 B1.1 | ||||
| American | |||||||||
| 138937 | < 1400 | < 1100 | <300 | < 1250 Copper < 700 Alu < 600 | UNIFIED | ||||
| coated fine thread | |||||||||
| vc = m/min. | UNI | ||||||||
| ICS | |||||||||
| 138937 | 30-200 | 30-120 | 80-200 | 30-80 | 100-350 | 100-350 | 6535 HA | ||
| shank | |||||||||
| Design: | Use: | ||||||||
| - thread milling cutter for female threads | - universally applicable tool for cost-efficient | ||||||||
| - 2 × D | production of internal threads | ||||||||
| - TiAIN coated | - machining of materials up to 44 HRC |
- shank design HA - with cooling duct and right-hand spiral
138937 JBO, VHM, GF, UNF, 2 × D, TiAlN, with ICS
| P | l | l | d | fz | ||||
| Type | 138937 | d | 1 | 2 | 2 | Z | ||
| 1 mm | mm | mm | mm | mm/tooth | ||||
| 0004 | | 1/4" | 28 | 54 | 14�0 | 6 | 3 | 0�010 - 0�060 |
| 0006 | | 5/16" | 24 | 54 | 17�4 | 6 | 3 | 0�010 - 0�060 |
| 0008 | | 3/8" | 24 | 64 | 20�6 | 8 | 4 | 0�020 - 0�200 |
| 0010 | | 7/16" | 20 | 64 | 24�7 | 8 | 4 | 0�020 - 0�200 |
| 0012 | | 1/2" | 20 | 74 | 27�3 | 10 | 4 | 0�020 - 0�200 |
| Milling cutter Universal | ||||||||
| P | M | K | S | N | Zähne ANSI NPT 60° NPT | |||
| Cat. no. | B1.20.1 30° 30° VHM |
N/mm2 N/mm2 HB N/mm2 N/mm2 3-4
Conical 1:16 6535 HA
| 138939 | < 1400 | < 1100 | <300 | < 1250 Copper < 700 Alu < 600 | shank 1° 47' coated pipe thread | |
| vc = m/min. | UNI | |||||
| ICS | ||||||
| 138939 | 30-200 | 30-120 | 80-200 | 30-80 | 100-350 100-350 | |
| Design: | Use: | |||||
| - thread milling cutter for female threads | - universally applicable tool for cost-efficient | |||||
| - 2 × D | production of internal threads | |||||
| - TiAIN coated | - machining of materials up to 44 HRC | |||||
| - shank design HA | - cone 1:16 | |||||
| - with cooling duct and right-hand spiral | - for threads and sealants |
138939 JBO, VHM, GF, NPT, 2 × D, TiAlN, with ICS
| P | l | l | d | fz | |||||
| Type | 138939 | d | 1 | 2 | 2 | Z | |||
| 1 | mm | mm | mm | mm | mm/tooth | ||||
| 0002 | | 1/16" | 27 | 64 | 9�86 | 8 | 3 | 0�020 - 0�200 | |
| 0004 | | 1/8" | 27 | 64 | 9�86 | 8 | 4 | 0�020 - 0�200 | |
| 0006 | | 1/4" | 18 | 72 | 18�98 | 12 | 4 | 0�020 - 0�200 | |
| 0008 | | 3/8" | 18 | 80 | 14�82 | 14 | 4 | 0�020 - 0�200 | |
| 0010 | | 1/2" | 14 | 80 | 19�05 | 14 | 4 | 0�020 - 0�200 |
