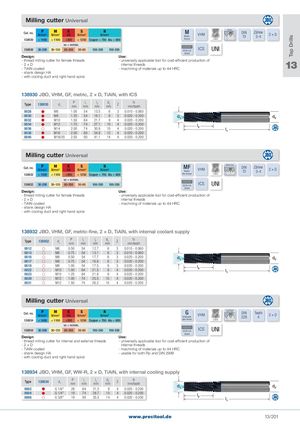

Общий каталог PRECITOOL - страница 206

Tap Drills Milling cutter Universal Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2 M Metric VHM Metric60° DIN13 Zähne3-42×D 138930 < 1400 < 1100 <300 < 1250 Copper < 700 Alu < 600 thread coated vc = m/min. 138930 30-200 30-120 80-200 30-80 100-350 100-350 6535 HA ICS UNI shank Design: Use: - thread milling cutter for female threads - universally applicable tool for cost-efficient production of-2×Dinternal threads- TiAIN coated- machining of materials up to 44 HRC 13 - shank design HA - with cooling duct and right-hand spiral 138930 JBO, VHM, GF, metric, 2 × D, TiAlN, with ICS Type 138930 d1 Pmm l1mm l2mm d2mm Z fzmm/tooth 0028  M6 1.00 54 13.5 6 3 0.010 - 0.060 0030  M8 1.25 54 18.1 6 3 0.020 - 0.200 0032  M10 1.50 64 21.7 8 4 0.020 - 0.200 0034  M12 1.75 74 27.1 10 4 0.020 - 0.200 0036  M14 2.00 74 30.9 10 4 0.020 - 0.200 0038  M16 2.00 80 34.9 12 4 0.020 - 0.200 0040  M18/20 2.50 90 41.1 14 4 0.020 - 0.200 Milling cutter Universal Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2 MF Metric VHM Metric fine60° DIN13 Zähne3-42×D 138932 < 1400 < 1100 <300 < 1250 Copper < 700 Alu < 600 fine thread coated vc = m/min. 138932 30-200 30-120 80-200 30-80 100-350 100-350 6535 HA ICS UNI shank Design: Use: - thread milling cutter for female threads - universally applicable tool for cost-efficient production of -2×D internal threads - TiAIN coated - machining of materials up to 44 HRC - shank design HA - with cooling duct and right-hand spiral 138932 JBO, VHM, GF, metric-fine, 2 × D, TiAlN, with internal coolant supply Type 138932 d1 Pmm l1mm l2mm d2mm Z fzmm/tooth 0012  M6 0.50 54 12.7 6 3 0.010 - 0.060 0013  M6 0.75 54 13.1 6 3 0.010 - 0.060 0016  M8 0.50 54 17.7 6 3 0.020 - 0.200 0017  M8 0.75 54 16.8 6 3 0.020 - 0.200 0018  M8 1.00 54 17.5 6 3 0.020 - 0.200 0022  M10 1.00 64 21.5 8 4 0.020 - 0.200 0023  M10 1.25 64 21.8 8 4 0.020 - 0.200 0029  M12 1.00 74 25.5 10 4 0.020 - 0.200 0031  M12 1.50 74 26.2 10 4 0.020 - 0.200 Milling cutter Universal Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2 G Whitworth VHM G. Whitworthpipe thread55°DIN228Teeth42×D 138934 < 1400 < 1100 <300 < 1250 Copper < 700 Alu < 600 pipe thread coated vc = m/min. 138934 30-200 30-120 80-200 30-80 100-350 100-350 6535 HA ICS UNI shank Design Use: - thread milling cutter for internal and external threads - universally applicable tool for cost-efficient production of -2×D internal threads - TiAIN coated - machining of materials up to 44 HRC - shank design HA - usable for both Rp and DIN 2999 - with cooling duct and right-hand spiral 138934 JBO, VHM, GF, WW-R, 2 × D, TiAlN, with internal cooling supply Type 138934 d 1 Pmm l 1mm l 2mm d 2mm Z fzmm/tooth 0002  G 1/8" 28 64 21.3 8 4 0.020 - 0.200 0004  G 1/4" 19 74 28.7 10 4 0.020 - 0.200 0006  G 3/8" 19 90 35.5 14 4 0.020 - 0.200 www.precitool.de 13/201
