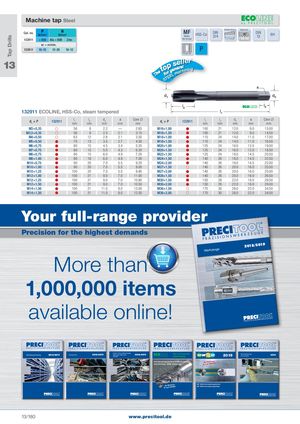

Общий каталог PRECITOOL - страница 185
Навигация
| P | N | MF | DIN | Chamfer form B | Metric fine DIN | |||
| N/mm2 | N/mm2 | 374 | 13 | |||||
| Metric | ||||||||
| fine thread | L | |||||||
| 132911 | < 850 Alu < 600 | Zinc | 3,5-5 threads | |||||
| vc = m/min. | P | |||||||
| 132911 | 10-15 | 12-20 | 10-12 | |||||
| Through hole | ||||||||
| 13 | seller | |||||||
| top neral |
e r ge chining
Th fo ma
EEL ST
132911 ECOLINE, HSS-Co, steam tempered
| d1× P | 132911 | l1 mm | l2 mm | d2 mm | a mm | Corex mm | d1× P | 132911 | l1 mm | l2 mm | d2 mm | a mm | Corex mm |
| M3×0,35 | | 56 | 8 | 2�2 | — | 2�65 | M16×1,00 | | 100 | 21 | 12�0 | 9�0 | 15�00 |
| M3,5×0,35 | | 56 | 8 | 2�5 | 2�1 | 3�15 | M16×1,50 | | 100 | 21 | 12�0 | 9�0 | 14�50 |
| M4×0,50 | | 63 | 12 | 2�8 | 2�1 | 3�50 | M18×1,00 | | 110 | 24 | 14�0 | 11�0 | 17�00 |
| M5×0,50 | | 70 | 13 | 3�5 | 2�7 | 4�50 | M18×1,50 | | 110 | 24 | 14�0 | 11�0 | 16�50 |
| M6×0,75 | | 80 | 15 | 4�5 | 3�4 | 5�20 | M20×1,00 | | 125 | 24 | 16�0 | 12�0 | 19�00 |
| M7×0,75 | | 80 | 15 | 5�5 | 4�3 | 6�20 | M20×1,50 | | 125 | 24 | 16�0 | 12�0 | 18�50 |
| M8×0,75 | | 80 | 15 | 6�0 | 4�9 | 7�20 | M22×1,50 | | 125 | 24 | 18�0 | 14�5 | 20�50 |
| M8×1,00 | | 90 | 18 | 6�0 | 4�9 | 7�00 | M24×1,50 | | 140 | 26 | 18�0 | 14�5 | 22�50 |
| M10×0,75 | | 90 | 20 | 7�0 | 5�5 | 9�20 | M24×2,00 | | 140 | 26 | 18�0 | 14�5 | 22�00 |
| M10×1,00 | | 90 | 20 | 7�0 | 5�5 | 9�00 | M27×1,50 | | 140 | 26 | 20�0 | 16�0 | 25�50 |
| M10×1,25 | | 100 | 20 | 7�0 | 5�5 | 8�80 | M27×2,00 | | 140 | 26 | 20�0 | 16�0 | 25�00 |
| M12×1,00 | | 100 | 21 | 9�0 | 7�0 | 11�00 | M28×1,50 | | 140 | 26 | 20�0 | 16�0 | 26�50 |
| M12×1,25 | | 100 | 21 | 9�0 | 7�0 | 10�80 | M30×1,50 | | 150 | 28 | 22�0 | 18�0 | 28�50 |
| M12×1,50 | | 100 | 21 | 9�0 | 7�0 | 10�50 | M30×2,00 | | 150 | 28 | 22�0 | 18�0 | 28�00 |
| M14×1,00 | | 100 | 21 | 11�0 | 9�0 | 13�00 | M36×1,50 | | 170 | 30 | 28�0 | 22�0 | 34�50 |
| M14×1,50 | | 100 | 21 | 11�0 | 9�0 | 12�50 | M36×2,00 | | 170 | 30 | 28�0 | 22�0 | 34�00 |
