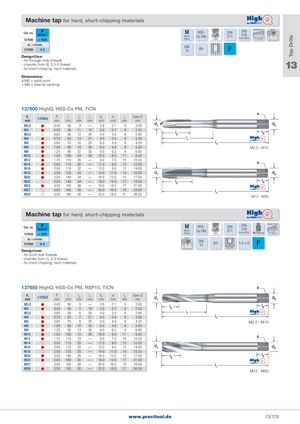

Tap Drills Machine tap for hard, short-chipping materials Cat. no. PN/mm2137600< 1500 M HSS- DIN DIN Chamfer form B Metric 60°MetricCo PMthreadcoated371376Lfrom M123,5-5 threads vc = m/min.1376004-6 DIN13 6H P Through hole Design/Use: - for through-hole threads- chamfer form B, 3.5-5 thread- for short-chipping, hard materials 13 Dimensions: ≤ M6 = solid point > M8 = internal centring 137600 HighQ, HSS-Co PM, TiCN d1mm 137600 Pmm l l l d124 2mmmmmmmma l 3 Core mmmmmm M2,5  0.45 50 9 —  2.8  2.1 5  2.05 M3  0.50 56 11 18  3.5  2.7 6  2.50 M3,5  0.60 56 12 20  4.0  3.0 6  2.90 M4  0.70 63 13 21  4.5  3.4 6  3.30 l4 M5  0.80 70 16 25  6.0  4.9 8  4.20 M6  1.00 80 19 30  6.0  4.9 8  5.00 M2,5 - M10 M8  1.25 90 22 35  8.0  6.2 9  6.80 M10  1.50 100 24 39 10.0  8.0 11  8.50 M12  1.75 110 28 —  9.0  7.0 10 10.20 M14  2.00 110 30 — 11.0  9.0 12 12.00 M16  2.00 110 32 — 12.0  9.0 12 14.00 M18  2.50 125 34 — 14.0 11.0 14 15.50 M20  2.50 140 34 — 16.0 12.0 15 17.50 M22  2.50 140 34 — 18.0 14.5 17 19.50 M24  3.00 160 38 — 18.0 14.5 17 21.00 M27  3.00 160 38 — 20.0 16.0 19 24.00 M30  3.50 180 45 — 22.0 18.0 21 26.50 M12 - M30 Machine tap for hard, short-chipping materials Cat. no. PN/mm2137650< 1500 M HSS- DIN DIN Chamfer form CMetricCo PMthreadcoated371376from M1215°TwistL2-3 threads vc = m/min.1376506-8 Metric60° DIN13 6H 1.5 × D P Blind hole Design/use: - for blind hole threads - chamfer form C, 2-3 thread - for short-chipping, hard materials 137650 HighQ, HSS-Co PM, RSP15, TiCN d1mm 137650 Pmm l1 l2 l4 d2mmmmmmmm a l3 Core mmmmmm M2,5  0.45 50 9 —  2.8  2.1 5  2.05 M3  0.50 56 5 18  3.5  2.7 6  2.50 M3,5  0.60 56 6 20  4.0  3.0 6  2.90 l4 M4  0.70 63 7 21  4.5  3.4 6  3.30 M5  0.80 70 8 25  6.0  4.9 8  4.20 M2,5 - M10 M6  1.00 80 10 30  6.0  4.9 8  5.00 M8  1.25 90 13 35  8.0  6.2 9  6.80 M10  1.50 100 15 39 10.0  8.0 11  8.50 M12  1.75 110 18 —  9.0  7.0 10 10.20 M14  2.00 110 20 — 11.0  9.0 12 12.00 M16  2.00 110 20 — 12.0  9.0 12 14.00 M18  2.50 125 25 — 14.0 11.0 14 15.50 M20  2.50 140 25 — 16.0 12.0 15 17.50 M24  3.00 160 30 — 18.0 14.5 17 21.00 M27  3.00 160 30 — 20.0 16.0 19 24.00 M30  3.50 180 35 — 22.0 18.0 21 26.50 M12 - M30 www.precitool.de 13/179
