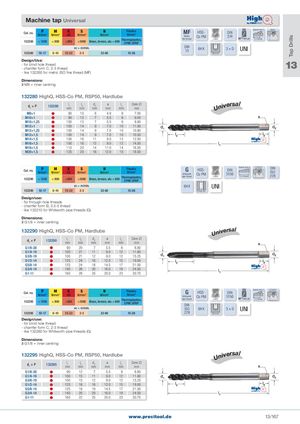

Общий каталог PRECITOOL - страница 172
Навигация
| P | M | K | S | N | Plastics | MF | HSS- | DIN | Metric Chamfer form C | ||
| N/mm2 | N/mm2 | HB | N/mm2 | N/mm2 | N/mm2 | Co PM | 374 | ||||
| Metric | |||||||||||
| fine thread | 50°Twist | L | |||||||||
| 132280 | < 1200 | < 900 | <300 | <1000 Brass, bronze, alu < 600 Thermoplastics, | coated | 2-3 threads | |||||
| CFRP, GFRP | |||||||||||
| DIN | UNI | ||||||||||
| vc = m/min. | 6HX | 3 × D | |||||||||
| 13 | |||||||||||
| 132280 | 10-17 | 8-10 | 15-22 | 2-3 | 32-60 | 15-26 |
Blind hole Design/Use: 13 - for blind hole thread - chamfer form C, 2-3 thread
- like 132260 for metric ISO fine thread (MF)
Dimensions:
- M8 = inner centring
132280 HighQ, HSS-Co PM, RSP50, Hardlube
| l | l | d | a | l | ersal Core x | |||
| d × P | 132280 | 1 | 2 | 2 | 3 | Univ | ||
| 1 | mm | mm | mm | mm | mm | mm | ||
| M8×1 | | 90 | 10 | 6 | 4�9 | 8 | 7�00 | |
| M10×1 | | 90 | 12 | 7 | 5�5 | 8 | 9�00 | |
| M10×1,25 | | 100 | 12 | 7 | 5�5 | 8 | 8�80 | |
| M12×1 | | 100 | 14 | 9 | 7�0 | 10 | 11�00 | |
| M12×1,25 | | 100 | 14 | 9 | 7�0 | 10 | 10�80 | |
| M12×1,5 | | 100 | 14 | 9 | 7�0 | 10 | 10�50 | |
| M14×1,5 | | 100 | 16 | 11 | 9�0 | 12 | 12�50 | |
| M16×1,5 | | 100 | 16 | 12 | 9�0 | 12 | 14�50 | |
| M18×1,5 | | 110 | 20 | 14 | 11�0 | 14 | 16�50 | |
| M20×1,5 | | 125 | 20 | 16 | 12�0 | 15 | 18�50 |
P M K S N Plastics G HSS- Chamfer form B G. Whitworth DIN
Cat. no. DIN pipe thread
N/mm2 N/mm2 HB N/mm2 N/mm2 N/mm2 55° ISO
| Whitworth | Co PM | 5156 | ||
| L | 228 |
pipe thread coated 3,5-5 threads
| 132290 | < 1200 | < 900 | <300 | <1000 Brass, bronze, alu < 600 Thermoplastics, | |
| CFRP, GFRP |
vc = m/min. 6HX UNI
132290 10-17 8-10 15-22 2-3 32-60 15-26
Through hole Design/use: - for through-hole threads - chamfer form B, 3.5-5 thread
- like 132210 for Whitworth pipe threads (G)
Dimensions:
- G1/8 = inner centring
132290 HighQ, HSS-Co PM, Hardlube ersal
Univ
| l | l | d | a | l | Core x | ||
| d × P | 132290 | 1 | 2 | 2 | 3 | ||
| 1 | mm | mm | mm | mm | mm | mm | |
| G1/8-28 | | 90 | 20 | 7 | 5�5 | 8 | 8�80 |
| G1/4-19 | | 100 | 21 | 11 | 9�0 | 12 | 11�80 |
| G3/8-19 | | 100 | 21 | 12 | 9�0 | 12 | 15�25 |
| G1/2-14 | | 125 | 24 | 16 | 12�0 | 15 | 19�00 |
| G5/8-14 | | 125 | 24 | 18 | 14�5 | 17 | 21�00 |
| G3/4-14 | | 140 | 26 | 20 | 16�0 | 19 | 24�50 |
| G1-11 | | 160 | 28 | 25 | 20�0 | 23 | 30�75 |
P M K S N Plastics G Chamfer form C G. Whitworth
Cat. no. HSS- DIN pipe thread
N/mm N/mm2 55°
| 2 | N/mm2 | HB | N/mm2 | N/mm2 | Co PM | 5156 | |
| Whitworth |
pipe thread coated 50°Twist L
| 132295 | < 1200 | < 900 | <300 | <1000 Brass, bronze, alu < 600 Thermoplastics, | 2-3 threads | ||
| CFRP, GFRP | DIN |
vc = m/min. ISO 6HX 3 × D UNI
132295 10-17 8-10 15-22 2-3 32-60 15-26 228
Blind hole Design/use: - for blind hole thread - chamfer form C, 2-3 thread
- like 132260 for Whitworth pipe threads (G)
Dimensions:
- G1/8 = inner centring
132295 HighQ, HSS-Co PM, RSP50, Hardlube ersal
Univ
| l | l | d | a | l | Core x | ||
| d × P | 132295 | 1 | 2 | 2 | 3 | ||
| 1 | mm | mm | mm | mm | mm | mm | |
| G1/8-28 | | 90 | 12 | 7 | 5�5 | 8 | 8�80 |
| G1/4-19 | | 100 | 15 | 11 | 9�0 | 12 | 11�80 |
| G3/8-19 | | 100 | 15 | 12 | 9�0 | 12 | 15�25 |
| G1/2-14 | | 125 | 18 | 16 | 12�0 | 15 | 19�00 |
| G5/8-14 | | 125 | 18 | 18 | 14�5 | 17 | 21�00 |
| G3/4-14 | | 140 | 20 | 20 | 16�0 | 19 | 24�50 |
| G1-11 | | 160 | 22 | 25 | 20�0 | 23 | 30�75 |
