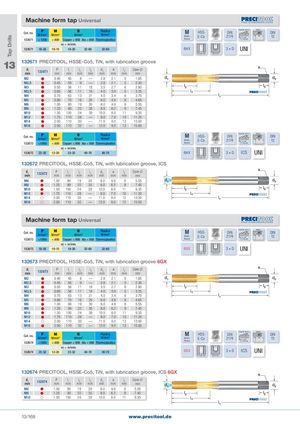

Tap Drills Machine form tap Universal Cat. no. PN/mm2 MN/mm2 NN/mm2 PlasticsN/mm2 M HSS- Chamfer form C MetricDIN60°DINMetricE-Co2174L13 132671 < 1300 < 800 Copper < 900 Alu < 600 Thermoplastics thread coated 2-3 threads vc = m/min. 132671 18-28 10-15 18-26 32-60 32-60 6HX 3×D UNI Through hole Blind hole 13 132671 PRECITOOL, HSSE-Co5, TiN, with lubrication groove d1mm 132671 Pmm l l l12 4mmmmmmd 2mm a l 3 Core mmmmmm M2  0.40 45 8 —  2.8 2.1 5  1.85 M2,5  0.45 50 9 —  2.8 2.1 5  2.30 M3  0.50 56 11 18  3.5 2.7 6  2.80 M3,5  0.60 56 11 18  4.0 3.0 5  3.25 M4  0.70 63 13 21  4.5 3.4 6  3.70 M5  0.80 70 16 25  6.0 4.9 8  4.65 M6  1.00 80 19 30  6.0 4.9 8  5.55 M8  1.25 90 22 35  8.0 6.2 9  7.45 M10  1.50 100 24 39 10.0 8.0 11  9.35 M12  1.75 110 28 —  9.0 7.0 10 11.20 M14  2.00 110 30 — 11.0 9.0 12 13.00 M16  2.00 110 32 — 12.0 9.0 12 15.00 Cat. no. PN/mm2 MN/mm2 NN/mm2 PlasticsN/mm2 M HSS- Chamfer form C MetricDIN60°DINMetricE-Co2174L13 132672 <1000 < 800 Copper < 900 Alu < 600 Thermoplastics thread coated 2-3 threads vc = m/min. 132672 22-32 12-20 22-32 40-70 40-70 6HX 3×D ICS UNI Through hole Blind hole 132672 PRECITOOL, HSSE-Co5, TiN, with lubrication groove, ICS d1mm 132672 Pmm l l l12 4mmmmmmd 2mm a l 3 Core mmmmmm M6  1.00 80 19 30  6.0 4.9 8  5.55 M8  1.25 90 22 35  8.0 6.2 9  7.45 M10  1.50 100 24 39 10.0 8.0 11  9.35 M12  1.75 110 28 —  9.0 7.0 10 11.20 M14  2.00 110 30 — 11.0 9.0 12 13.00 M16  2.00 110 32 — 12.0 9.0 12 15.00 Machine form tap Universal Cat. no. PN/mm2 MN/mm2 NN/mm2 PlasticsN/mm2 M HSS- Chamfer form C MetricDIN60°DINMetricE-Co2174L13 132673 <1000 < 800 Copper < 900 Alu < 600 Thermoplastics thread coated 2-3 threads vc = m/min. 132673 18-28 10-15 18-26 32-60 32-60 6GX 3×D UNI Through hole Blind hole 132673 PRECITOOL, HSSE-Co5, TiN, with lubrication groove 6GX d1mm 132673 Pmm l1 l2 l4mmmmmm d2mm a l3 Core mmmmmm M2  0.40 45 8 —  2.8 2.1 5  1.85 M2,5  0.45 50 9 —  2.8 2.1 5  2.30 M3  0.50 56 11 18  3.5 2.7 6  2.80 M3,5  0.60 56 11 18  4.0 3.0 5  3.25 M4  0.70 63 13 21  4.5 3.4 6  3.70 M5  0.80 70 16 25  6.0 4.9 8  4.65 M6  1.00 80 19 30  6.0 4.9 8  5.55 M8  1.25 90 22 35  8.0 6.2 9  7.45 M10  1.50 100 24 39 10.0 8.0 11  9.35 M12  1.75 110 28 —  9.0 7.0 10 11.20 M14  2.00 110 30 — 11.0 9.0 12 13.00 M16  2.00 110 32 — 12.0 9.0 12 15.00 Cat. no. PN/mm2 MN/mm2 NN/mm2 PlasticsN/mm2 M HSS- Chamfer form C MetricDIN60°DINMetricE-Co2174L13 132674 <1000 < 800 Copper < 900 Alu < 600 Thermoplastics thread coated 2-3 threads vc = m/min. 132674 22-32 12-20 22-32 40-70 40-70 6GX 3×D ICS UNI Through hole Blind hole 132674 PRECITOOL, HSSE-Co5, TiN, with lubrication groove, ICS 6GX d1mm 132674 Pmm l l l12 4mmmmmmd 2mm a l 3 Core mmmmmm M6  1.00 80 19 30  6.0 4.9 8 5.55 M8  1.25 90 22 35  8.0 6.2 9 7.45 M10  1.50 100 24 39 10.0 8.0 11 9.35 13/168 www.precitool.de
