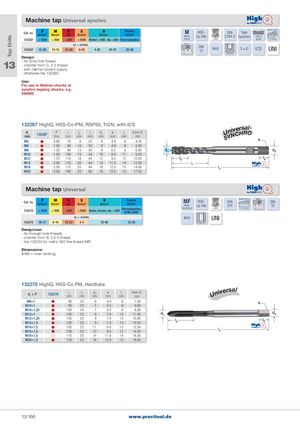

Tap Drills Machine tap Universal synchro Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2 PlasticsN/mm2 M HSS- Chamfer form CDINTypeMetricCo PM2184-2Synchro1835 BL 132267 < 1200 < 900 <300 <1000 Nickel < 900 Alu <500 Thermoplastics thread coated shank 2-3 threads vc = m/min.13226712-5010-1510-306-204-2020-7020-40 Metric60° DIN13 6HX 3×D ICS UNI Blind hole Design: 13 - for blind hole thread- chamfer form C, 2-3 thread - with internal coolant supply - otherwise like 132260 Use: For use in Weldon chucks or synchro tapping chucks, e.g. 240680 132267 HighQ, HSS-Co-PM, RSP50, TiCN, with ICSd1mm132267Pmml1l2l4d2mmmmmmmmamml3 Core mmmm USYnNivCeHrsRaOl- M5  0.80 70 8 25 6  4.9 8  4.20 M6  1.00 80 10 30 6  4.9 8  5.00 M8  1.25 90 13 35 8  6.2 9  6.80 M10  1.50 100 15 39 10  8.0 11  8.50 M12  1.75 110 18 44 12  9.0 12 10.20 M14  2.00 110 20 44 14 11.0 14 12.00 l4 M16  2.00 110 20 44 16 12.0 15 14.00 M20  2.50 140 25 56 16 12.0 15 17.50 Machine tap Universal Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2 PlasticsN/mm2 MF HSS- Chamfer form B MetricDIN60°DINMetricCo PM374L13 132270 < 1200 < 900 <300 <1000 Brass, bronze, alu < 600 Thermoplastics,CFRP, GFRP fine thread coated 3,5-5 threads vc = m/min. 6HX UNI 132270 10-17 8-10 15-22 2-3 32-60 15-26 Through hole Design/use: - for through-hole threads - chamfer form B, 3.5-5 thread - like 132210 for metric ISO fine thread (MF) Dimensions: ≥ M8 = inner centring 132270 HighQ, HSS-Co PM, Hardlube d1 × P 132270 l1mm l2mm d2mm amm l3mm Core mm Universal M8×1  90 22 6  4.9 8  7.00 M10×1  90 20 7  5.5 8  9.00 M10×1,25  100 24 7  5.5 8  8.80 M12×1  100 22 9  7.0 10 11.00 M12×1,25  100 22 9  7.0 10 10.80 M12×1,5  100 22 9  7.0 10 10.50 M14×1,5  100 22 11  9.0 12 12.50 M16×1,5  100 22 12  9.0 12 14.50 M18×1,5  110 25 14 11.0 14 16.50 M20×1,5  125 25 16 12.0 15 18.50 13/166 www.precitool.de
