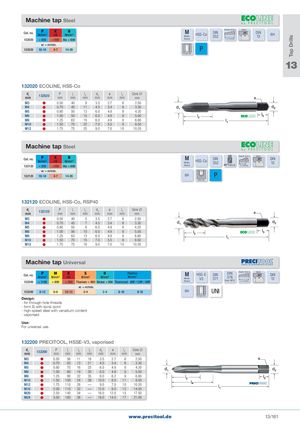

Tap Drills Machine tap Steel Cat. no. PN/mm2 KHB NN/mm2 M Metric HSS-Co DIN352 Chamfer form B L Metric 60° DIN13 6H 132020 < 850 <150 Alu < 600 thread 3,5-5 threads vc = m/min. 132020 10-14 4-7 14-20 P Through hole 13 132020 ECOLINE, HSS-Co d1mm 132020 Pmm l l d a l122 3mmmmmmmmmmCore mm M3  0.50 40 9 3.5 2.7 6  2.50 M4  0.70 45 11 4.5 3.4 6  3.30 M5  0.80 50 13 6.0 4.9 8  4.20 M6  1.00 50 15 6.0 4.9 8  5.00 M8  1.25 63 19 6.0 4.9 8  6.80 M10  1.50 70 22 7.0 5.5 8  8.50 M12  1.75 75 25 9.0 7.0 10 10.20 Machine tap Steel Cat. no. PN/mm2 KHB NN/mm2 M Metric HSS-Co DIN352 Chamfer form C Metric60° DINL13 132120 < 850 <150 Alu < 600 thread 40°Twist 2-3 threads vc = m/min. 132120 10-14 4-7 14-20 6H P Blind hole 132120 ECOLINE, HSS-Co, RSP40 d1mm 132120 Pmm l1 l2 d2 a l3 Core mmmmmmmmmmmm M3  0.50 40 5 3.5 2.7 6  2.50 M4  0.70 45 7 4.5 3.4 6  3.30 M5  0.80 50 8 6.0 4.9 8  4.20 M6  1.00 56 10 6.0 4.9 8  5.00 M8  1.25 63 13 6.0 4.9 8  6.80 M10  1.50 70 15 7.0 5.5 8  8.50 M12  1.75 75 18 9.0 7.0 10 10.20 Machine tap Universal Cat. no. PN/mm2 MN/mm2 KHB SN/mm2 NN/mm2 PlasticsN/mm2132200< 1100< 800< 250Titanium < 900Nickel < 900ThermosetGRP / CRP / ARPM HSS-E DIN DIN Chamfer form B Metric60° DINMetricthreadV3371376Lfrom M123,5-5 threads13 vc = m/min. 132200 8-12 6-8 10-12 2-4 2-4 8-10 8-10 6H UNI Through hole Design: - for through-hole threads - form B with spiral point - high-speed steel with vanadium content - vaporised Use: For universal use. 132200 PRECITOOL, HSSE-V3, vaporised d1mm 132200 Pmm l1 l2 l4mmmmmm d2mm amm l3 Core mmmm M3  0.50 56 11 18  3.5  2.7 6  2.50 M4  0.70 63 13 21  4.5  3.4 6  3.30 M5  0.80 70 16 25  6.0  4.9 8  4.20 M6  1.00 80 19 30  6.0  4.9 8  5.00 M8  1.25 90 22 35  8.0  6.2 9  6.80 M10  1.50 100 24 39 10.0  8.0 11  8.50 M12  1.75 110 28 —  9.0  7.0 10 10.20 M16  2.00 110 32 — 12.0  9.0 12 14.00 M20  2.50 140 34 — 16.0 12.0 15 17.50 M24  3.00 160 38 — 18.0 14.5 17 21.00 www.precitool.de 13/161
