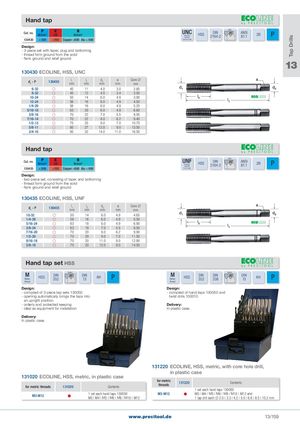

Tap Drills Hand tap Cat. no. PN/mm2 KHB NN/mm2 UNC americanUNIFIEDHSS DIN2184-2 UNC60° ANSIB1.1 2B P 130430 < 850 <150 Copper <600 Alu < 600 coarse thread Design: - 3-piece set with taper, plug and bottoming - thread form ground from the solid - flank ground and relief ground 13 130430 ECOLINE, HSS, UNC d1 - P 130430 l1mm l2mm d2mm amm Core mm 6-32  45 11  4.0  3.0  2.85 8-32  45 12  4.5  3.4  3.50 10-24  50 14  6.0  4.9  3.90 12-24  56 16  6.0  4.9  4.50 1/4-20  56 16  6.0  4.9  5.20 5/16-18  63 20  6.0  4.9  6.60 3/8-16  70 22  7.0  5.5  8.00 7/16-14  70 22  8.0  6.2  9.40 1/2-13  75 25  9.0  7.0 10.75 5/8-11  80 27 12.0  9.0 13.50 3/4-10  95 32 14.0 11.0 16.50 Hand tap Cat. no. PN/mm2 KHB NN/mm2 UNF AmericanUNIFIEDHSS DIN2184-2 UNF60° ANSIB1.1 2B P 130435 < 850 <150 Copper <600 Alu < 600 fine thread Design: - two-piece set, consisting of taper and bottoming - thread form ground from the solid - flank ground and relief ground 130435 ECOLINE, HSS, UNF d1 - P 130435 l1mm l2mm d2mm amm Core mm 10-32  50 14  6.0 4.9  4.65 1/4-28  56 16  6.0 4.9  5.50 5/16-24  63 18  6.0 4.9  6.90 3/8-24  63 18  7.0 5.5  8.50 7/16-20  70 20  8.0 6.2  9.90 1/2-20  70 20  9.0 7.0 11.50 9/16-18  70 20 11.0 9.0 12.90 5/8-18  70 20 12.0 9.0 14.50 Hand tap set HSS MMetric HSS DIN352 Metric60° DIN13 6H P M Metric HSS DIN352 DIN338 Metric60° DIN13 6H P thread thread Design: Design: - compiled of 3-piece tap sets 130050 - compiled of hand taps 130050 and - opening automatically brings the taps into twist drills 100010 an upright position - orderly and protected keeping Delivery: - ideal as equipment for installation In plastic case. Delivery: In plastic case. 131220 ECOLINE, HSS, metric, with core hole drill, in plastic case 131020 ECOLINE, HSS, metric, in plastic case for metric threads 131020 Contents for metricthreads 131220 Contents 1 set each hand taps 130050 M3-M12  1 set each hand taps 130050M3 | M4 | M5 | M6 | M8 | M10 | M12M3-M12  M3 | M4 | M5 | M6 | M8 | M10 | M12 and1 tap drill each x 2.5 | 3.3 | 4.2 | 5.0 | 6.8 | 8.5 | 10.2 mm www.precitool.de 13/159
