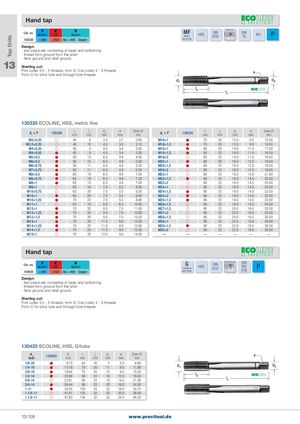

Общий каталог PRECITOOL - страница 163
Навигация
Hand tap
P K N MF DIN Metric fine DIN P
Cat. no. HSS 60° 6H
| N/mm2 | HB | N/mm2 | 2181 | 13 | |||
| Metric | |||||||
| 130330 | < 850 | <150 | Alu < 600 Copper | fine thread |
Design: - two-piece set, consisting of taper and bottoming - thread form ground from the solid 13 - flank ground and relief ground
Starting cut: First cutter 3.5 - 5 threads, form D; final cutter 2 - 3 threads Form C for blind hole and through hole threads
130330 ECOLINE, HSS, metric fine
| d1× P | 130330 | l1 mm | l2 mm | d2 mm | a mm | Corex mm | d1× P | 130330 | l1 mm | l2 mm | d2 mm | a mm | Corex mm |
| M3×0,35 | | 40 | 9 | 3�5 | 2�7 | 2�65 | M16×1 | | 70 | 20 | 12�0 | 9�0 | 15�00 |
| M3,5×0,35 | | 45 | 10 | 4�0 | 3�0 | 3�15 | M16×1,5 | | 70 | 20 | 12�0 | 9�0 | 14�50 |
| M4×0,35 | | 45 | 9 | 4�5 | 3�4 | 3�65 | M18×1 | | 80 | 20 | 14�0 | 11�0 | 17�00 |
| M4×0,50 | | 45 | 9 | 4�5 | 3�4 | 3�50 | M18×1,5 | | 80 | 22 | 14�0 | 11�0 | 16�50 |
| M5×0,5 | | 50 | 13 | 6�0 | 4�9 | 4�50 | M18×2 | | 80 | 22 | 14�0 | 11�0 | 16�00 |
| M6×0,5 | | 56 | 15 | 6�0 | 4�9 | 5�50 | M20×1 | | 80 | 20 | 16�0 | 12�0 | 19�00 |
| M6×0,75 | | 56 | 11 | 6�0 | 4�9 | 5�20 | M20×1,5 | | 80 | 22 | 16�0 | 12�0 | 18�50 |
| M7×0,75 | | 56 | 11 | 6�0 | 4�9 | 6�20 | M20×2 | | 80 | 22 | 16�0 | 12�0 | 18�00 |
| M8×0,5 | | 63 | 19 | 6�0 | 4�9 | 7�50 | M22×1 | | 80 | 22 | 18�0 | 14�5 | 21�00 |
| M8×0,75 | | 63 | 19 | 6�0 | 4�9 | 7�20 | M22×1,5 | | 80 | 22 | 18�0 | 14�5 | 20�50 |
| M8×1 | | 63 | 19 | 6�0 | 4�9 | 7�00 | M22×2 | | 80 | 22 | 18�0 | 14�5 | 20�00 |
| M9×1 | | 63 | 18 | 7�0 | 5�5 | 8�00 | M24×1 | | 90 | 22 | 18�0 | 14�5 | 23�00 |
| M10×0,75 | | 63 | 20 | 7�0 | 5�5 | 9�20 | M24×1,5 | | 90 | 22 | 18�0 | 14�5 | 22�50 |
| M10×1 | | 63 | 20 | 7�0 | 5�5 | 9�00 | M24×2 | | 90 | 22 | 18�0 | 14�5 | 22�00 |
| M10×1,25 | | 70 | 22 | 7�0 | 5�5 | 8�80 | M25×1,5 | | 90 | 22 | 18�0 | 14�5 | 23�50 |
| M11×1 | | 63 | 18 | 8�0 | 6�2 | 10�00 | M26×1,5 | | 90 | 22 | 18�0 | 14�5 | 24�50 |
| M12×1 | | 70 | 20 | 9�0 | 7�0 | 11�00 | M27×1,5 | | 90 | 22 | 20�0 | 16�0 | 25�50 |
| M12×1,25 | | 70 | 20 | 9�0 | 7�0 | 10�80 | M27×2 | | 90 | 22 | 20�0 | 16�0 | 25�00 |
| M12×1,5 | | 70 | 20 | 9�0 | 7�0 | 10�50 | M28×1,5 | | 90 | 22 | 20�0 | 16�0 | 26�50 |
| M14×1 | | 70 | 20 | 11�0 | 9�0 | 13�00 | M30×1 | | 90 | 22 | 22�0 | 18�0 | 29�00 |
| M14×1,25 | | 70 | 20 | 11�0 | 9�0 | 12�80 | M30×1,5 | | 90 | 22 | 22�0 | 18�0 | 28�50 |
| M14×1,5 | | 70 | 20 | 11�0 | 9�0 | 12�50 | M30×2 | | 90 | 22 | 22�0 | 18�0 | 28�00 |
| M15×1 | | 70 | 20 | 12�0 | 9�0 | 14�00 | — | — | — | — | — | — | — |
Hand tap
P K N G BSW Withworth DIN
Cat. no. DIN 55° P
| N/mm2 | HB | N/mm2 | HSS | 5157 | ISO | |||
| Cylindrical | 228 | |||||||
| 130420 | < 850 | <150 | Alu < 600 Copper | pipe thread |
Design: - two-piece set, consisting of taper and bottoming - thread form ground from the solid - flank ground and relief ground
Starting cut: First cutter 3.5 - 5 threads, form D; final cutter 2 - 3 threads Form C for blind hole and through hole threads
130420 ECOLINE, HSS, G/tube
| d1 inch | 130420 | d1 mm | l1 mm | l2 mm | d2 mm | a mm | Corex mm |
| 1/8-28 | | 9�73 | 63 | 20 | 7 | 5�5 | 8�80 |
| 1/4-19 | | 13�16 | 70 | 20 | 11 | 9�0 | 11�80 |
| 3/8-19 | | 16�66 | 70 | 20 | 12 | 9�0 | 15�25 |
| 1/2-14 | | 20�96 | 80 | 22 | 16 | 12�0 | 19�00 |
| 5/8-14 | | 22�91 | 80 | 22 | 18 | 14�5 | 21�00 |
| 3/4-14 | | 26�44 | 90 | 22 | 20 | 16�0 | 24�50 |
| 1-11 | | 33�25 | 100 | 25 | 22 | 18�0 | 30�75 |
| 1.1/4-11 | | 41�91 | 125 | 32 | 25 | 20�0 | 39�50 |
| 1.1/2-11 | | 47�80 | 140 | 32 | 32 | 24�0 | 45�25 |
