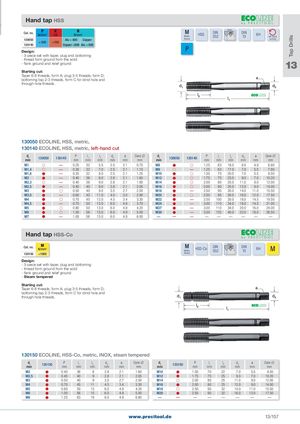

Tap Drills Hand tap HSS Cat. no. PN/mm2 KHB NN/mm2 M Metric HSS DIN352 Metric60° DIN13 6H left hand 130050 Alu < 600 Copper thread cutting < 850 <150 130140 Copper <600 Alu < 600 Design: P - 3-piece set with taper, plug and bottoming - thread form ground from the solid - flank ground and relief ground 13 Starting cut: Taper 6-8 threads, form A; plug 3-5 threads, form D; bottoming tap 2-3 threads, form C for blind hole and through hole threads. 130050 ECOLINE, HSS, metric, 130140 ECOLINE, HSS, metric, left-hand cut d1mm 130050 130140 Pmm l1mm l2mm d2mm amm Core mm d1mm 130050 130140 Pmm l1mm l2mm d2mm amm Core mm M1  — 0.25 32 5.5 2.5 2.1 0.75 M8   1.25 63 18.0 6.0 4.9 6.80 M1,4  — 0.30 32 7.0 2.5 2.1 1.10 M9  — 1.25 63 17.0 7.0 5.5 7.80 M1,6  — 0.35 32 8.0 2.5 2.1 1.25 M10   1.50 70 20.0 7.0 5.5 8.50 M2  — 0.40 36 8.0 2.8 2.1 1.60 M12   1.75 75 23.0 9.0 7.0 10.20 M2,3  — 0.40 36 9.0 2.8 2.1 1.90 M14   2.00 80 25.0 11.0 9.0 12.00 M2,5  — 0.45 40 9.0 2.8 2.1 2.05 M16   2.00 80 25.0 12.0 9.0 14.00 M3   0.50 40 9.0 3.5 2.7 2.50 M18  — 2.50 95 30.0 14.0 11.0 15.50 M3,5  — 0.60 45 11.0 4.0 3.0 2.90 M20   2.50 95 30.0 16.0 12.0 17.50 M4   0.70 45 12.0 4.5 3.4 3.30 M22  — 2.50 100 30.0 18.0 14.5 19.50 M4,5  — 0.75 50 13.0 6.0 4.9 3.70 M24  — 3.00 110 34.0 18.0 14.5 21.00 M5   0.80 50 13.0 6.0 4.9 4.20 M27  — 3.00 110 34.0 20.0 16.0 24.00 M6   1.00 56 15.0 6.0 4.9 5.00 M30  — 3.50 125 40.0 22.0 18.0 26.50 M7  — 1.00 56 15.0 6.0 4.9 6.00 — — — — — — — — — Hand tap HSS-Co Cat. no. MN/mm2 M Metric HSS-Co DIN352 Metric60° DIN13 6H M 130150 <1000 thread Design: - 3-piece set with taper, plug and bottoming - thread form ground from the solid - flank ground and relief ground - Steam tempered Starting cut: Taper 6-8 threads, form A; plug 3-5 threads, form D; bottoming tap 2-3 threads, form C for blind hole and through hole threads. 130150 ECOLINE, HSS-Co, metric, INOX, steam tempered d1mm 130150 Pmm l l d12 2mmmmmm amm Core mm d1mm 130150 P l l d122mmmmmmmmamm Core mm M2  0.40 36 8 2.8 2.1 1.60 M10  1.50 70 22 7.0 5.5 8.50 M2,5  0.45 40 9 2.8 2.1 2.05 M12  1.75 75 25 9.0 7.0 10.20 M3  0.50 40 9 3.5 2.7 2.50 M14  2.00 80 25 11.0 9.0 12.00 M4  0.70 45 11 4.5 3.4 3.30 M16  2.00 80 25 12.0 9.0 14.00 M5  0.80 50 13 6.0 4.9 4.20 M18  2.50 95 32 14.0 11.0 15.50 M6  1.00 56 15 6.0 4.9 5.00 M20  2.50 95 32 16.0 12.0 17.50 M8  1.25 63 19 6.0 4.9 6.80 — — — — — — — — www.precitool.de 13/157
