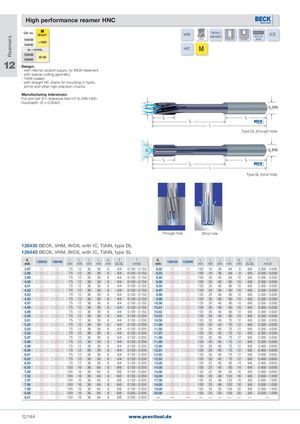

High performance reamer HNC

Cat. no. 126430	M N/mm2
126440 vc = m 126430	/min.
126440	20-60

6535 HA 12 126440

Design: - with internal coolant supply, for INOX treatment - with special cutting geometry - TiAlN coated - with straight NC shank for mounting in hydro, shrink and other high precision chucks

Manufacturing tolerances: Full and half Ø = tolerance field H7 to DIN 1420 Hundredth Ø = 0.004/0

Type DL (through hole)

Type SL (blind hole)

Through hole Blind hole

126430 BECK, VHM, INOX, with IC, TiAIN, type DL

126440 BECK, VHM, INOX, with IC, TiAIN, type SL

d1 mm	126430	126440	l1 mm	l2 mm	l3 mm	l4 mm	d2 mm	Z DL/SL m	f m/U
3,97			75	12	36	39	6	4/4 0�100	- 0�150
3,98			75	12	36	39	6	4/4 0�100	- 0�150
3,99			75	12	36	39	6	4/4 0�100	- 0�150
4,00			75	12	36	39	6	4/4 0�100	- 0�150
4,01			75	12	36	39	6	4/4 0�100	- 0�150
4,02			75	12	36	39	6	4/4 0�100	- 0�150
4,03			75	12	36	39	6	4/4 0�100	- 0�150
4,50			75	12	36	39	6	4/4 0�100	- 0�150
4,97			75	12	36	39	6	4/4 0�100	- 0�150
4,98			75	12	36	39	6	4/4 0�100	- 0�150
4,99			75	12	36	39	6	4/4 0�100	- 0�150
5,00			75	12	36	39	6	4/4 0�150	- 0�200
5,01			75	12	36	39	6	4/4 0�150	- 0�200
5,02			75	12	36	39	6	4/4 0�150	- 0�200
5,03			75	12	36	39	6	4/4 0�150	- 0�200
5,50			75	12	36	39	6	4/4 0�150	- 0�200
5,97			75	12	36	39	6	4/4 0�150	- 0�200
5,98			75	12	36	39	6	4/4 0�150	- 0�200
5,99			75	12	36	39	6	4/4 0�150	- 0�200
6,00			75	12	36	39	6	4/4 0�150	- 0�200
6,01			75	12	36	39	6	4/4 0�150	- 0�200
6,02			75	12	36	39	6	4/4 0�150	- 0�200
6,03			75	12	36	39	6	4/4 0�150	- 0�200
6,50			100	16	36	64	8	6/6 0�150	- 0�200
7,00			100	16	36	64	8	6/6 0�150	- 0�200
7,50			100	16	36	64	8	6/6 0�150	- 0�200
7,97			100	16	36	64	8	6/6 0�150	- 0�200
7,98			100	16	36	64	8	6/6 0�150	- 0�200
7,99			100	16	36	64	8	6/6 0�150	- 0�200
8,00			100	16	36	64	8	6/6 0�300	- 0�500
8,01			100	16	36	64	8	6/6 0�300	- 0�500

d1 mm	126430	126440	l1 mm	l2 mm	l3 mm	l4 mm	d2 mm	Z DL/SL	f mm/U
8,02			100	16	36	64	8	6/6	0�300 - 0�500
8,03			100	16	36	64	8	6/6	0�300 - 0�500
8,50			100	20	40	60	10	6/6	0�300 - 0�500
9,00			100	20	40	60	10	6/6	0�300 - 0�500
9,50			120	20	40	80	10	6/6	0�300 - 0�500
9,97			120	20	40	80	10	6/6	0�300 - 0�500
9,98			120	20	40	80	10	6/6	0�300 - 0�500
9,99			120	20	40	80	10	6/6	0�300 - 0�500
10,00			120	20	40	80	10	6/6	0�300 - 0�500
10,01			120	20	40	80	10	6/6	0�300 - 0�500
10,02			120	20	40	80	10	6/6	0�300 - 0�500
10,03			120	20	40	80	10	6/6	0�300 - 0�500
10,50			120	20	45	75	12	6/6	0�300 - 0�500
11,00			120	20	45	75	12	6/6	0�300 - 0�500
11,50			120	20	45	75	12	6/6	0�300 - 0�500
11,97			120	20	45	75	12	6/6	0�300 - 0�500
11,98			120	20	45	75	12	6/6	0�300 - 0�500
11,99			120	20	45	75	12	6/6	0�300 - 0�500
12,00			120	20	45	75	12	6/6	0�400 - 0�600
12,01			120	20	45	75	12	6/6	0�400 - 0�600
12,02			120	20	45	75	12	6/6	0�400 - 0�600
12,03			120	20	45	75	12	6/6	0�400 - 0�600
13,00			130	22	45	85	14	6/6	0�400 - 0�600
14,00			130	22	45	85	14	6/6	0�400 - 0�600
15,00			130	22	48	82	16	6/6	0�400 - 0�600
16,00			150	25	48	102	16	6/6	0�500 - 1�000
17,00			150	25	48	102	18	8/6	0�500 - 1�000
18,00			150	25	48	102	18	8/6	0�500 - 1�000
19,00			150	25	50	100	20	8/6	0�500 - 1�000
20,00 —	 —	 —	150 —	25 —	50 —	100 —	20 —	8/6 —	0�500 - 1�000 —
