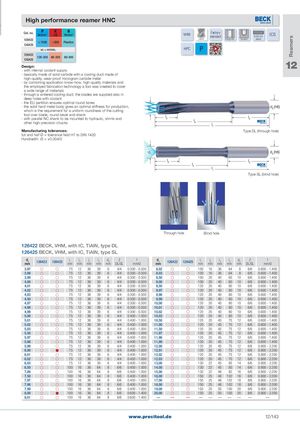

Reamers High performance reamer HNC Cat. no. PN/mm2 KHB NN/mm2 VHM Factorystandard 6335 HA ICS 126422 coated Through hole Grundloch shank < 1200 <300 Plastics 126425 vc = m/min. HPC P 126422 120-250 60-250 80-200 126425 Design: 12 - with internal coolant supply - basically made of solid carbide with a cooling duct made of high-quality, wear-proof micrograin carbide metal - by combining application know-how, high-quality materials and the employed fabrication technology a tool was created to cover a wide range of materials - through a sintered cooling duct, the blades are supplied also in deep holes with coolant - the EU partition ensures optimal round bores - the solid hard metal body gives an optimal stiffness for production, which is the requirement for a uniform roundness of the cutting tool over blade, round bevel and shank - with parallel NC shank to be mounted to hydraulic, shrink and other high-precision chucks Manufacturing tolerances: Type DL (through hole) full and half Ø = tolerance field H7 to DIN 1420 Hundredth Ø = +0.004/0 Type SL (blind hole) Through hole Blind hole 126422 BECK, VHM, with IC, TiAIN, type DL 126425 BECK, VHM, with IC, TiAIN, type SL d1mm 126422 126425 l1mm l2mm l3mm l4mm d2mm ZDL/SL fmm/U d1mm 126422 126425 l1mm l2mm l3mm l4mm d2mm ZDL/SL fmm/U 3,97   75 12 36 39 6 4/4 0.300 - 0.500 8,02   100 16 36 64 8 6/6 0.600 - 1.400 3,98   75 12 36 39 6 4/4 0.300 - 0.500 8,03   100 16 36 64 8 6/6 0.600 - 1.400 3,99   75 12 36 39 6 4/4 0.300 - 0.500 8,50   100 20 40 60 10 6/6 0.600 - 1.400 4,00   75 12 36 39 6 4/4 0.300 - 0.500 9,00   100 20 40 60 10 6/6 0.600 - 1.400 4,01   75 12 36 39 6 4/4 0.300 - 0.500 9,50   120 20 40 80 10 6/6 0.600 - 1.400 4,02   75 12 36 39 6 4/4 0.300 - 0.500 9,97   120 20 40 80 10 6/6 0.600 - 1.400 4,03   75 12 36 39 6 4/4 0.300 - 0.500 9,98   120 20 40 80 10 6/6 0.600 - 1.400 4,50   75 12 36 39 6 4/4 0.300 - 0.500 9,99   120 20 40 80 10 6/6 0.600 - 1.400 4,97   75 12 36 39 6 4/4 0.300 - 0.500 10,00   120 20 40 80 10 6/6 0.600 - 1.400 4,98   75 12 36 39 6 4/4 0.300 - 0.500 10,01   120 20 40 80 10 6/6 0.600 - 1.400 4,99   75 12 36 39 6 4/4 0.300 - 0.500 10,02   120 20 40 80 10 6/6 0.600 - 1.400 5,00   75 12 36 39 6 4/4 0.400 - 1.000 10,03   120 20 40 80 10 6/6 0.600 - 1.400 5,01   75 12 36 39 6 4/4 0.400 - 1.000 10,50   120 20 45 75 12 6/6 0.600 - 1.400 5,02   75 12 36 39 6 4/4 0.400 - 1.000 11,00   120 20 45 75 12 6/6 0.600 - 1.400 5,03   75 12 36 39 6 4/4 0.400 - 1.000 11,50   120 20 45 75 12 6/6 0.600 - 1.400 5,50   75 12 36 39 6 4/4 0.400 - 1.000 11,97   120 20 45 75 12 6/6 0.600 - 1.400 5,97   75 12 36 39 6 4/4 0.400 - 1.000 11,98   120 20 45 75 12 6/6 0.600 - 1.400 5,98   75 12 36 39 6 4/4 0.400 - 1.000 11,99   120 20 45 75 12 6/6 0.600 - 1.400 5,99   75 12 36 39 6 4/4 0.400 - 1.000 12,00   120 20 45 75 12 6/6 0.800 - 2.200 6,00   75 12 36 39 6 4/4 0.400 - 1.000 12,01   120 20 45 75 12 6/6 0.800 - 2.200 6,01   75 12 36 39 6 4/4 0.400 - 1.000 12,02   120 20 45 75 12 6/6 0.800 - 2.200 6,02   75 12 36 39 6 4/4 0.400 - 1.000 12,03   120 20 45 75 12 6/6 0.800 - 2.200 6,03   75 12 36 39 6 4/4 0.400 - 1.000 13,00   130 22 45 85 14 6/6 0.800 - 2.200 6,50   100 16 36 64 8 6/6 0.400 - 1.000 14,00   130 22 45 85 14 6/6 0.800 - 2.200 7,00   100 16 36 64 8 6/6 0.400 - 1.000 15,00   130 22 48 82 16 6/6 0.800 - 2.200 7,50   100 16 36 64 8 6/6 0.400 - 1.000 16,00   150 25 48 102 16 6/6 0.800 - 2.200 7,97   100 16 36 64 8 6/6 0.400 - 1.000 17,00   150 25 48 102 18 8/6 0.800 - 2.200 7,98   100 16 36 64 8 6/6 0.400 - 1.000 18,00   150 25 48 102 18 8/6 0.800 - 2.200 7,99   100 16 36 64 8 6/6 0.400 - 1.000 19,00   150 25 50 100 20 8/6 0.800 - 2.200 8,00   100 16 36 64 8 6/6 0.600 - 1.400 20,00   150 25 50 100 20 8/6 0.800 - 2.200 8,01   100 16 36 64 8 6/6 0.600 - 1.400 — — — — — — — — — — www.precitool.de 12/143
