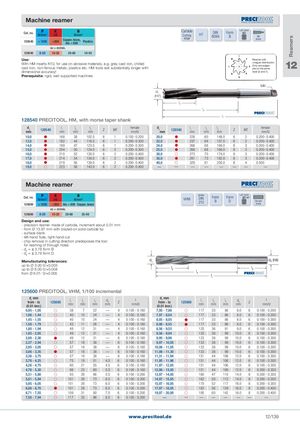

Общий каталог PRECITOOL - страница 144

Reamers Machine reamer Cat. no. PN/mm2 KHB NN/mm2128540< 1200<300Copper, brass,Alu < 600Plastics CarbideCuttingH7edge DIN Form Left twist8094B MKshank vc = m/min. 128540 8-20 10-20 20-60 10-50 Use: Reamer with With HM inserts K10, for use on abrasive materials, e.g. grey cast iron, chilledcast iron, non-ferrous metals, plastics etc. HM tools last substantially longer with unegual distribution.Only two edgesare on the same12 dimensional accuracy! level (3 and 7). Prerequisite: rigid, well supported machines MK d1 (H7) l2 l4 l1 128540 PRECITOOL, HM, with morse taper shank d1mm 128540 l1mm l2mm l4mm Z MT femalemm/U d1 mm 128540 l1mm l2 l4mmmm Z MT femalemm/U 10,0  168 38 102.5 6 1 0.150 - 0.200 20,0  228 60 148.0 6 2 0.200 - 0.400 12,0  182 44 116.5 6 1 0.200 - 0.300 22,0  237 64 157.0 6 2 0.200 - 0.400 14,0  189 47 123.5 6 1 0.200 - 0.300 24,0  268 68 169.0 8 3 0.200 - 0.400 15,0  204 50 124.0 6 2 0.200 - 0.300 25,0  268 68 169.0 8 3 0.200 - 0.400 16,0  210 52 130.0 6 2 0.200 - 0.400 26,0  273 70 174.0 8 3 0.200 - 0.400 17,0  214 54 134.0 6 2 0.200 - 0.400 30,0  281 73 182.0 8 3 0.200 - 0.400 18,0  219 56 139.0 6 2 0.200 - 0.400 40,0  329 81 205.0 8 4 0.500 19,0  223 58 143.0 6 2 0.200 - 0.400 — — — — — — — — Machine reamer Cat. no. PN/mm2 KHB NN/mm2125600< 1200<300Alu < 600Copper, brass VHM similarDIN212 FormB Form Left twist10°D Straightshank vc = m/min. 125600 8-20 10-20 20-60 25-50 Design and use: - precision reamer made of carbide, increment about 0.01 mm - from Ø 13.97 mm with brazed-on solid-carbide tip - surface blank - left-hand flute, right-hand cut - chip removal in cutting direction predisposes the tool for reaming of through holes - d2 = ≤ 3.76 form B - d2 = ≤ 3.76 form D Manufacturing tolerances: up to Ø 3.00 0/+0.003 up to Ø 6.00 0/+0.004 from Ø 6.01: 0/+0.005 125600 PRECITOOL, VHM, 1/100 incremental d1 mmfrom - to(0.01 incr.)125600l 1mm l2mm l4mm d2mm Z fmm/U d1 mmfrom - to(0.01 incr.)125600l 1mm l2mm l4mm d2mm Z fmm/U 0,95 - 1,05  38 7 22 — 4 0.100 - 0.160 7,95 - 7,96  117 33 86 8.0 6 0.100 - 0.200 1,06 - 1,44  40 10 24 — 4 0.100 - 0.160 7,97 - 8,04  117 33 86 8.0 6 0.100 - 0.200 1,45 - 1,55  40 10 24 — 4 0.100 - 0.160 8,05 - 8,05  117 33 86 8.0 6 0.100 - 0.300 1,56 - 1,79  43 11 26 — 4 0.100 - 0.160 8,06 - 8,55  117 33 86 8.0 6 0.100 - 0.300 1,80 - 1,94  49 12 31 — 4 0.100 - 0.160 8,56 - 9,55  125 36 91 9.0 6 0.100 - 0.300 1,95 - 2,05  49 12 31 — 4 0.100 - 0.160 9,56 - 9,94  133 38 99 10.0 6 0.100 - 0.300 2,06 - 2,36  49 12 31 — 6 0.100 - 0.160 9,95 - 9,96  133 38 99 10.0 6 0.100 - 0.300 2,37 - 2,94  57 18 38 — 6 0.100 - 0.160 9,97 - 10,05  133 38 99 10.0 6 0.100 - 0.300 2,95 - 3,05  57 18 38 — 6 0.100 - 0.160 10,06 - 11,05  133 38 99 10.0 6 0.100 - 0.300 3,06 - 3,35  57 18 38 — 6 0.100 - 0.160 11,06 - 11,30  133 38 99 10.0 6 0.100 - 0.300 3,36 - 3,75  57 18 38 — 6 0.100 - 0.160 11,31 - 11,94  151 44 106 12.0 6 0.100 - 0.300 3,76 - 4,25  75 19 51 4.0 6 0.100 - 0.160 11,95 - 11,96  151 44 106 12.0 6 0.100 - 0.300 4,26 - 4,75  80 21 55 4.5 6 0.100 - 0.160 11,97 - 12,05  151 44 106 12.0 6 0.100 - 0.300 4,76 - 5,30  86 23 60 5.0 6 0.100 - 0.160 12,06 - 13,05  151 44 106 12.0 6 0.200 - 0.350 5,31 - 5,80  93 26 66 5.5 6 0.100 - 0.200 13,97 - 14,05  160 47 110 14.0 8 0.200 - 0.350 5,81 - 5,94  101 28 73 6.0 6 0.100 - 0.200 14,97 - 15,05  162 50 112 14.0 8 0.200 - 0.350 5,95 - 6,05  101 28 73 6.0 6 0.100 - 0.200 15,97 - 16,05  170 52 117 16.0 8 0.200 - 0.350 6,06 - 6,70  101 28 73 6.0 6 0.100 - 0.200 17,97 - 18,05  182 56 129 16.0 8 0.200 - 0.400 6,71 - 7,55  109 31 80 7.0 6 0.100 - 0.200 19,97 - 20,00  195 60 142 16.0 8 0.200 - 0.400 7,56 - 7,94  117 33 86 8.0 6 0.100 - 0.200 — — — — — — — — www.precitool.de 12/139
